UNI-T Oscilloscopes

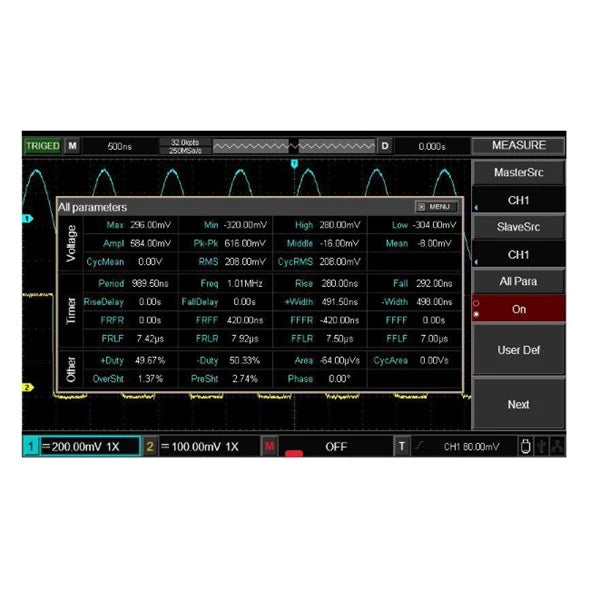

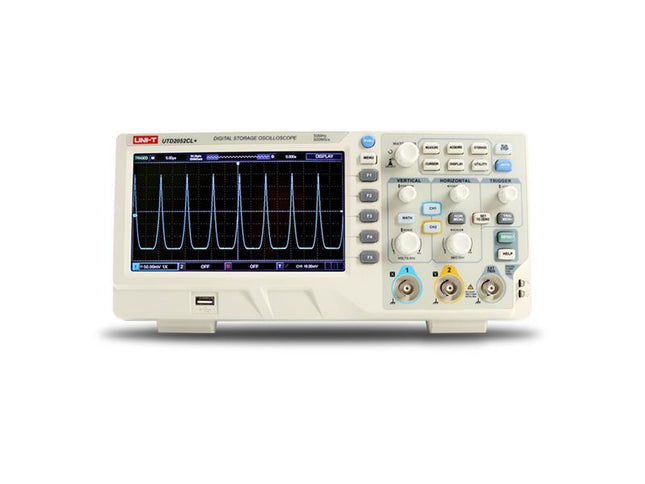

This product comes with a 3-year warranty. The UTD2052CL+ oscilloscope is a high-performance, multifunctional desktop digital oscilloscope from the UTD2000CL+ series, which is easy to operate and boasts excellent technical specifications, featuring two analogue input channels and offering a bandwidth of 50 MHz with a sampling rate of 5000 MS. It is equipped with a seven-inch TFT colour display with a resolution of 800 x 480 pixels. The oscilloscope has an internal memory with a depth of 64 kpts and a waveform capture rate of 5,000 wfms/s, and allows automatic measurement of up to 34 signal parameters and simple operation via the front panel with basic mathematical functions. Dedicated functions for basic operations, scaling and positioning of individual channels allow you to use the skills acquired from using traditional instruments, so that the oscilloscope can be used without the need to learn anything complicated and can be used for long periods without fatigue. Furthermore, the device can be easily set up by pressing the AUTO button. The oscilloscope supports USB storage, and thanks to the USB OTG function, you can save measured values to a USB flash drive. It also supports communication with a computer via USB plug-and-play. The software download option for connecting to a PC and updating the firmware is available on the manufacturer’s website: https://instruments.uni-trend.com/download?name=161&scode=77&series=UTD2000CL+/CL You can download the data sheet from the manufacturer’s website: http://unitrend.oss-cn-hongkong.aliyuncs.com/20220526/1653548284320621.pdf Product specifications: - bandwidth: 50MHz - number of channels: 2 - bandwidth: 50 MHz - number of channels: 2 - (1MΩ±2%)//(18pF±3pF) - compensated signal input: within the range 3Vpp/1kHz - Max. input voltage: 400 Vpk, max. transition 1000 Vpk - sampling rate: 500 MS/s - Time base range: 2 ns/div to 50 s/div - rise time: ≤ 7 ns - vertical axis: 1 mV/div to 20 V/div (1 mV/div), each channel has vertical resolution -Ω, vertical menu -Ω), bit - DC gain accuracy: ≤ ±3% in the range 5 mV to 20 V/div and ≤ ±4% in the range 1 mV to 2 mV/div - saved recording length: 2 x 512k sample points - memory depth: 2 x 64k per channel for 32 kpts - Triggering: Edge, Pulse, Video, Slope, Alternating trigger - mathematical operations on waveforms: A+B, A-B, AxB, A/B, FFT, Editable Advanced, Filter - automatic measurement of signal parameters: Max, Min, High, Low, Middle, Pk-Pk, RMS Cycle, Mean, RMS Amplitude, Cycle, RMS Area, Cycle Area, Overshoot, Pre-shoot, Period, Freq, Rise, Fall, + Width, -Width, +Duty, -Duty, RiseDelay, FallDelay, Phase, FRFR, FRFF, FFFR, FFFF, FRLF, FRLR, FFLR, FFLF - number of simultaneous measurements: average 5, max. and min. measurements, standard deviation, number of measurements - frequency counter: 6-bit - standard interface: USB-Host, USB-Device, AUX (Trig Out, Pass/Fail) - on-screen software buttons - on-screen software keyboard for naming saved files - number of files stored in the oscilloscope’s memory: 2/USB20 - flash memory saving: 2/20 current screen in BMP format to a USB flash drive - multilingual menu (including English, German, French, Portuguese, Spanish, Russian) Technical specifications: - display: TFT LCD, 178 mm (7-inch) diagonal, 800 x 480 pixels x RGB, max. typical brightness 300 nits - calibration interval: 1 year - power supply: 100V to 240V AC, 50/60Hz - power consumption: max. 100VA - operating ambient temperature: 0°C to +40°C - operating ambient humidity: <35°C: ≤90% RH, 35°C to 40°C: ≤60% RH - Operating altitude: max. 2000m - Storage temperature: -20°C to +60°C - dimensions (W x H x D): 306 x 138 x 124 mm - Weight: net 2.5kg, gross 3kg Contents of individual package: - U oscilloscope - 2000 m probe: 2 x UT-P03 60MHz (with compensation and switchable 1x, 10x divider) - detachable three-wire power cable: 1 pc - UT-D14 USB cable: 1 pc - a quick installation guide with a link to the manufacturer’s website - user manual - : UNI-TREND -

Leggere Di più Meno

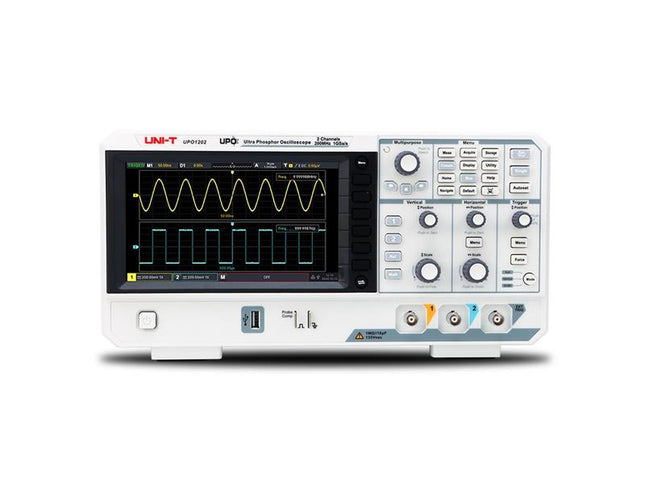

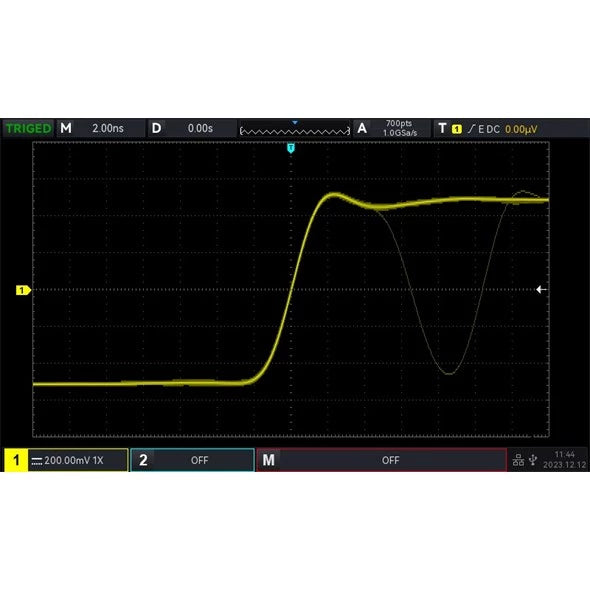

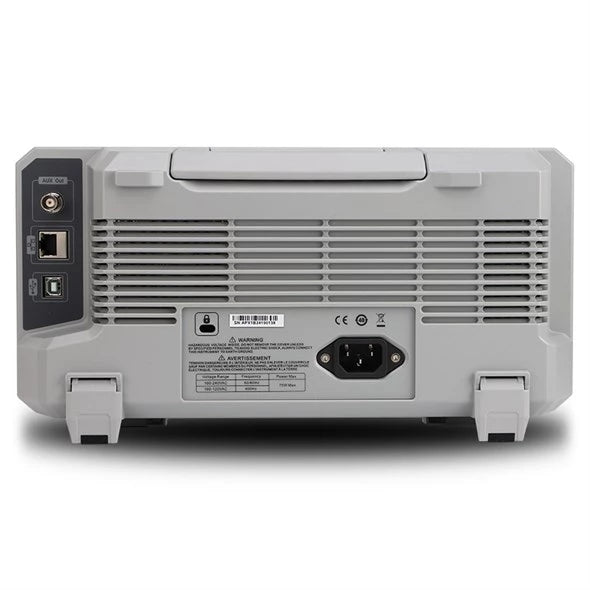

This product comes with a 3-year warranty. The UPO1202 series digital phosphor oscilloscope features the innovative UNI-T Ultra Phosphor 2.0 with an improved new design and deep storage function, high-speed waveform acquisition, real-time waveform recording and playback, and a 256-gradation display. The series supports the DVM module, rich trigger and bus decoding functions, and supports real-time hardware decoding with full memory. It is widely used in many fields, including embedded system design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, research and development, and education. 2.0: Normal waveform capture rate of up to 100,000 wfms/s; in Fast Acquire mode, the waveform capture rate reaches 500,000 wfms/s - Long recording memory length: 56 Mpts of recording memory for full-frequency data at high sampling rates 2.0: Multi-Scopes 2.0 can separate the time base and voltage grid of two channels, allowing users to observe two completely different signals simultaneously in the same window. (RS232/UART, I2C, SPI) milliseconds, which is 100 times faster than traditional software decoding and significantly improves analysis efficiency Technical parameters: - Oscilloscope type: digital - Power supply: 100V–240V AC, 50/60 Hz Bandwidth: 200 MHz - Real-time sampling rate: 1 GSa/s - Rise time: ≤1.8 ns - Recording memory length: 56Mpts - Input impedance: 1MΩ/16pF - Input sensitivity: 500 µV/V/div... RS232, UART, I2C, SPI - Triggering: rising edge, Nth edge, window, pattern, runt, falling edge, delayed, pulse width, slope, timeout, video signal - Time base: 1n...1pc/div - Vertical resolution: 8 bits >- LCD display type is not optional; 7" - Shipping dimensions (L x W x H): 336 mm × 164 mm × 105 mm - Shipping weight: <2.5 kg Package contents: - power cable - USB 2.0 cable - 100MHz probe*2 (UT-P> ) UNI-T SOFTWARE & FIRMWARE https://instruments.uni-trend.com/products/digital-oscilloscopes/UPO1002

Leggere Di più Meno

UNI-T 25MHz oscilloscope test probe Replacement probe for UNI-T oscilloscopes - passive probe (1:1 / 10:1) - bandwidth: 25 MHz - input resistance 1x 1MΩ ±2% / 10x 10MΩ / input capacitance ±2%/±2% 85 pF ~ 1115 pF / 10x 14.5 pF ~ 17.5 pF - compensation range: 5 pF ~ 30 pF - operating voltage: 1x 200V rms, 10x 600V rms

Leggere Di più Meno

UNI-T 60MHz Oscilloscope Test Probe Replacement probe for UNI-T oscilloscopes - passive probe (1:1 / 10:1) - bandwidth: 60 MHz - input impedance: 1x 1MΩ ±2% / 10x 10MΩ 85pF ~ 1115pF / 10x 14.5pF ~ 17.5pF - compensation range: 5 pF ~ 30 pF - operating voltage: 1x 200V rms, 10x 600V rms

Leggere Di più Meno

The UNI-T passive probe is a high-quality accessory designed for precise measurements with oscilloscopes from the UNI-T range. Thanks to its 1:1 / 10:1 switching capability, it adapts to a variety of test applications, delivering accurate and stable results. Technical specifications Probe type: passive (1:1 / 10:1) Bandwidth: 100 MHz Input resistance:• 1x: MΩ ± %• 10x: 10 MΩ ±2% Input capacitance:• 1x: 85 pF ~ 115 pF• 10x: 14.5 pF ~ 17.5 pF Compensation range: 5 pF ~ 30 pF Operating voltage:• 1x: 200 Vpk• 10x: 600 Vpk

Leggere Di più Meno

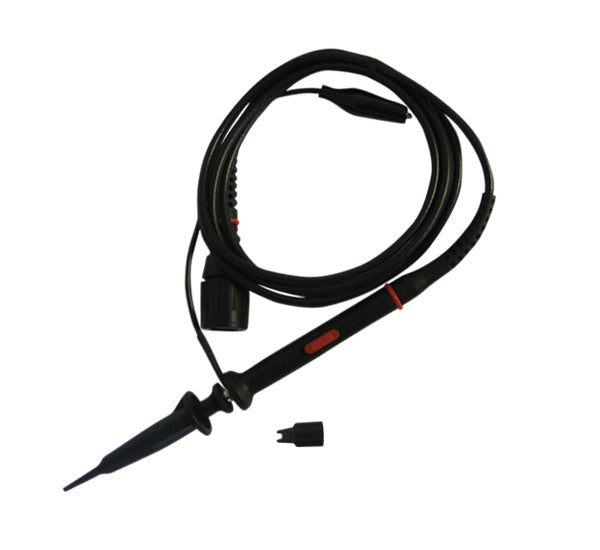

UNI-T 200MHz Oscilloscope Test Probe Replacement probe for UNI-T oscilloscopes - passive probe (1:1 / 10:1) - bandwidth: 200 MHz - input impedance: 1x 1MΩ ±2% / 10x 10MΩ ±10% / input capacitance: 10x 10:1 70pF ~ 120pF / 10x 14pF ~ 18pF - compensation range: 8 pF ~ 35 pF - operating voltage: 1x 300 Vp-p, 10x 600 Vp-p

Leggere Di più Meno

UNI-T UTD1062C Oscilloscope The UTD1062C combines a two-channel portable oscilloscope and a multimeter in a single unit. It offers excellent specifications and a range of advanced functions, as well as ease of use, making it suitable for fieldwork. The oscilloscope’s bandwidth is up to 60 MHz at a sampling rate of 250 MSa/s. Its powerful triggering and analysis functions facilitate the acquisition and analysis of waveforms, capable of measuring 27 signal parameters fully automatically. A multimeter allows you to measure DC and AC voltages and currents, resistance and capacitance.The device features a built-in 5.7-inch colour LCD display with a resolution of 320 x 240 pixels. The display shows waveforms in monochrome mode, making it easy to read even in bright light. In multimeter mode, the maximum value displayed is ±5999.The device is powered by a built-in Li-ion battery or a 9V/4A AC/DC adapter.As the device’s design is based on traditional instrument controls, users can operate these devices without needing to spend a significant amount of time learning and familiarising themselves with the input voltage range. 150V in CAT II (1:1 probe divider) and an input voltage of 300V in CAT II (1:10 probe divider). 250MS/s- Max. memory depth: 7.5 kpts- A/D converter resolution: 8 bits- Time base range: 5 ns/div to 50 s/div- Input coupling: (1 MΩ ± 2%) // (21 pF ± 3 pF)- vertical axis: 5 mV/div/div – 5 mV/div)- Trigger: Edge, pulse, video- mathematical operations with waveforms: A + B, A - B, A × B, A : B- automatic measurement: peak-to-peak, amplitude, maximum, minimum, high, low, average, root mean square, overshoot, frequency, overshoot, pulse, overshoot, frequency, overshoot, overshoot, overshoot, overshoot, overshoot, overshoot, overshoot, overshoot, positive duty cycle, negative duty cycle, rise time, fall time- FFT: Hanning, Hamming, Blackman-Harris, rectangular- internal memory storage: 10 groups of curves, 10 setting modes- USB saving: 10 groups of curves, 10 groups of measurement interfaces Voltage: 600mV / 6V / 60V / 600V / 1000V; accuracy ±(1%+5)- AC voltage measurement ranges (45Hz to 400Hz): 600mV / 6V / 60V / 600V / 700V; for accuracy f < 200Hz ±(1.2%+5); for accuracy f ≥ 200Hz ±(1.5%+5)- DC current measurement ranges: 6mA / 60mA / 600mA; accuracy ±(1.2%+5); for 6A accuracy ±(1.5%+5)- AC current measurement ranges (45 Hz to 400 Hz): 6 mA / 60 mA / 600 mA; accuracy ±(2%+5); for 6 A accuracy ±(2.5%+5)- resistance measurement ranges: 6kΩ / 60kΩ / 600kΩ; accuracy ±(1.2%+5); accuracy 600Ω / 6MΩ / 60MΩ ±(1.5%+5);- capacitance measurement ranges: 6nF / 6mF; accuracy ±(5%+10); accuracy 60nF / 600nF / 6µF / 60µF / 600µF ±(4%+5);- Diode and continuity testing: yes- range switching mode: automatic / manual- display and recording of trend curves for changes in voltage, current and parameters >Technical/resistance: - power supply: 100V–240V AC, 45 to 440Hz, CAT II, power consumption < 20VA- standard interface: 1 x USB-Host- battery: Li-ion 7.4V/4400mA- Battery life: - 3 hours: 80 inches, display: 80 inches - 3 hours pixels- Calibration: recommended once a year- IP rating: IP2X- Operating ambient temperature: 0°C to +40°C- Storage temperature: -20°C to +60°C- Operating ambient humidity: <35℃: ≤90%RH, ≤90%RH, ≤90%RH: 35℃-40℃>-40°C altitude: max. 3000m above sea level- Non-operational (storage) altitude: 15,000 m above sea level- net weight: 1.8 kg- gross weight: 4.5 kg- dimensions: 268 x 168 x 60 mm Package contents: UTD1062C: 1 pc- probe with 1.2 m cable and 1x, 10x switchable divider (UT-H04): 2 pcs- current (4 mA to 600 mA) / voltage converter module (UT-M03): 1 pc- Current (4A to 6A voltage converter) / DC-M04 adapter: (UT-M04 module) 100 to 240 V AC rms, 45 to 440 Hz, CAT II: 1 pc- USB cable: 1 pc- User manual: 1 pc Packaging for bulk customers: - Standard quantity per box: 4 pcs x box dimensions: 400 x 200 x 200 mm- Gross weight of box: approx. 16.7 kg MANUFACTURER:UNI-TREND Software update:https://instruments.uni-trend.com/EU-EN/handheldoscilloscopes/utd1000c.html

Leggere Di più Meno

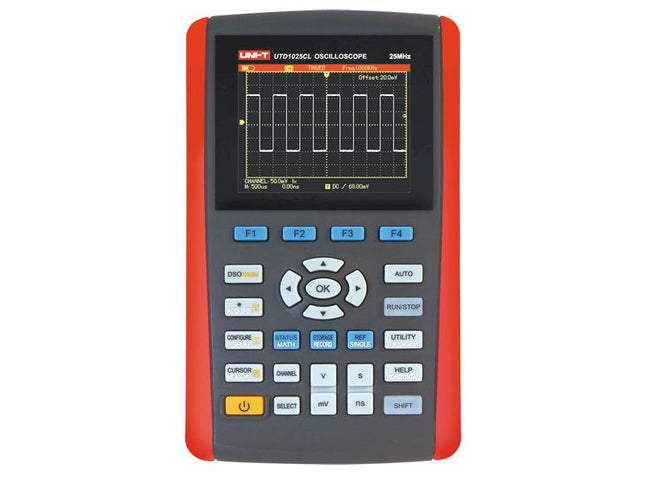

UNI-T UTD1025CL Oscilloscope UNI-T UTD1025CL 25MHz Handheld MINI Oscilloscope The UTD1000CL series portable digital storage oscilloscope is a 1-channel portable device. It also has a bandwidth of 25 MHz and a sampling rate of 200 MS/s. It features a simple, functional front panel, allowing you to perform all basic measurements and procedures without having to reach round to the back of the device. Use the AUTO button to make quick settings. TECHNICAL SPECIFICATIONS: Channels: 1 Bandwidth: 25 MHz Sampling rate: 250 MS/s Rise time: ≤14 ns Memory depth: 12kpts/Vertical sensitivity: V/Vertical sensitivity 5 mV/div–20 V/div Time base scale (s/div): 10 ns/div to 50 s/div Storage methods: Bitmap, Configuration, Waveform Trigger types: Edge, Pulse, Video, Slope Interface: Mini USB Accura MAccura Specifications DC voltage (V): 400.0 mV / 4.000 V / 40.00 V / 400.0 V ±(1%+5) AC voltage (V): 400.0 mV/ 4.000 V/ 40.00 V/ 400.00 V/ 400.0 V ±(1%+5) AC voltage (V): 400.0 mV/ 4.000 V/ 40.00 V/ 400.00 V/ 400.0 V ±(A+5) 400.0 μA/ 4000 μA ±(1.2%+5) 40.0 mA/ 400 mA ±(1%+5) 4 A ±(1.5%+5) AC current (A): 400.0μA ±(5) 400.0 μA ±(1.2%+5) 40.0 mA/ 400 mA ±(1.5%+5) 4 A ±(2.5%+5) Resistance (Ω): 400.0 Ω / 4,000 kΩ / 40.00 kΩ / 400.0 kΩ / 400.0 kΩ / 4.0 kΩ / 4.0 kΩ / 4.0 kΩ / ± 0.0 mΩ / 4.0 % 40.0 MΩ ±(1.5%+5) Inductance (F): 51.20 nF/512.0 nF/5.120 μF/51.20 μF/100 μF ±(3%+5) Display range: 4000 Battery: 7.4 V 3600 mAh; DC adapter: 100–240 V 50/60 Hz input, 9 V/4 A output LCD size: 3.5-inch 64K TFT colour LCD, 320×240 Product colour: red and grey Product dimensions: 0.19 mm × 19 mm × 49 mm ACCESSORIES: Adapter, Test lead, Probe (1:1, 10:1 switchable), Current/voltage converter ×2, Power cable, USB cable, Software CD MANUFACTURER UNI-TREND

Leggere Di più Meno

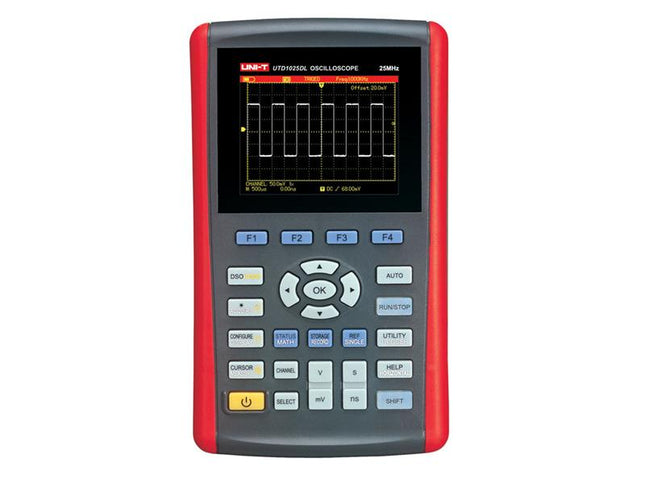

UNI-T UTD1025DL Oscilloscope The UTD1000DL series portable digital storage oscilloscope is a 2-channel portable device. It also has a bandwidth of 25 MHz and a sampling rate of 250 MS/s. It offers a simple, functional front panel, allowing you to perform all basic measurements and procedures without having to reach round to the back of the device. Use the AUTO button to make quick settings. Software for connecting to a PC can be downloaded from the manufacturer’s website: https://instruments.uni-trend.com/list_184/1059.html SPECIFICATIONS (oscilloscope): Channels 2 Bandwidth 25MHz Sampling rate MS/Sampling rate <200 <14 ns Memory depth 12 kps Vertical sensitivity 5 mV/div ~ 20 V/div Time base 10 ns/div ~ 50 s/div Save: bitmap, configuration, waveform Trigger modes: edge, communication interface, mini, communication interface USB SPECIFICATIONS (multimeter): DC voltage 400mV/4V/40V/400V ±(1%+5) AC voltage 400mV/4V/40V/400V ±(1.2%+5) DC current: 4000 μA ±(1.2% + 5), 40 mA, 4000 mA ±(1% + 5), 10 A ±(1.5% + 5) AC current 400μA, 4000μA ±(2%+5), 40mA, 4000mA ±(1.5%+5), (15%+5) resistance 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ ±(1.2%+5), 40MΩ ±(1.5%+5) Capacitance 51.20nF, 512nF, 5.120uF, 51.20uF+51.20uF, +-1.00uF, +-1. 4000 GENERAL CHARACTERISTICS: Dimensions: 199 mm x 118 mm x 49 mm Weight: 0.9 kg LCD size: 3.5", 320x240 Power: 100–240 V<br/60 A, 50/60 Hz Accessories: DC adapter, test leads, 1x/10x OSC probe, 10 A current divider, power cable, USB cable Manufacturer: UNI-TREND /en

Leggere Di più Meno

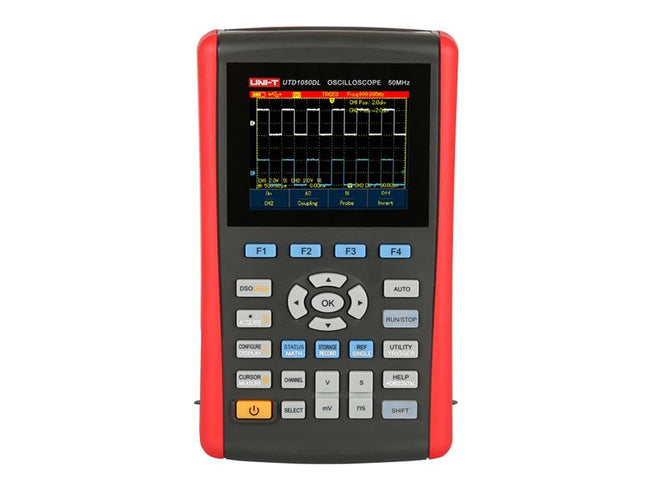

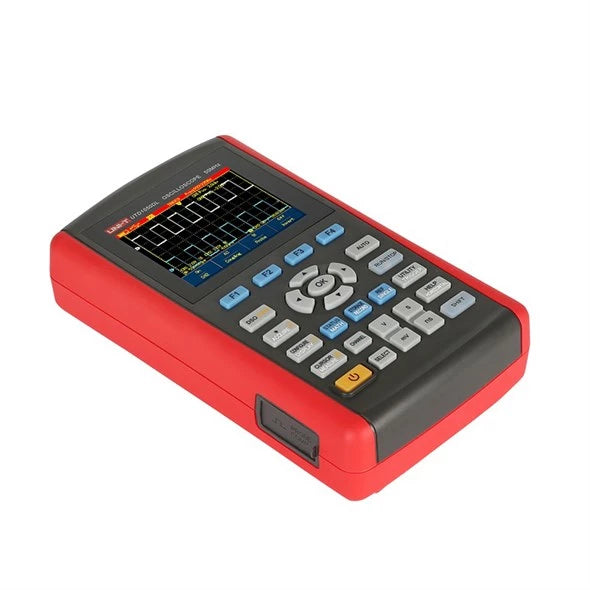

UNI-T UTD1050DL Oscilloscope UNI-T UTD1050DL Portable Digital Storage Oscilloscope The UTD1000DL series portable digital storage oscilloscope is a 2-channel portable device. It also has a sampling rate of 250 MS/s and, unlike the lower-end UTD1025DL version, a bandwidth of 50 MHz. It offers a simple, functional front panel, allowing you to perform all basic measurements and procedures without having to reach round to the back of the device. Use the AUTO button to make quick settings. TECHNICAL SPECIFICATIONS: Channels: 2 Bandwidth: 50 MHz Sampling rate: 250 MS/s Rise time: ≤7 ns Vertical sensitivity Memory sensitivity p. (V/div): 5 mV/div–20 V/div Time base scale (s/div): 5 ns/div–50 s/div Storage methods: Bitmap, Setup, Waveform Trigger types: Edge, Pulse, Video, Slope PC connectivity PC connectivity Manufacturer’s website: https://instruments.uni-trend.com/list_184/1059.html Multimeter specifications (range, accuracy) DC voltage (V): 400.0 mV/ 4.000 V/ 40.00 V/ 40.00 V/ 40.00 V/ 400.00 V/+V AC) ±(1/>V AC) (V): ±(1/>V) 400.0 mV/ 4,000 V/ 40.00 V/ 400.0 V ±(1.2%+5) DC current (A): 400.0 μA/ 4000 μA ±(1.2%+5) 40.0 mA+/) ±40.0 mA/) ±40.0 mA/) ±(1.5%+5) AC current (A): 400.0 μA / 4000 μA ±(2%+5) 40.0 mA/ 400 mA ±(1.5%+5) 4 A ±(2.5%+5) 4A ±(2.5%+5) /> 40.0MΩ ±(1.5%+5) Inductance (F): 51.20nF/512.0nF/5.120μF/51.20μF/100μF ±(3%+5) Display range: 4000 Power: Li-ion battery: 7.4V 3100mAh; DC 2400V adapter: input 500V, Hz Output 9V/4A LCD size: 3.5-inch 64K colour TFT LCD, 320×240 Product colour: red and grey Product weight: 0.9 kg Product dimensions: 118mm × 199mm × 49mm ACCESSORIES: Probe adapter ×2 (1:1, 10:1 switchable), Current/voltage converter ×2, Power cable, USB cable MANUFACTURER UNI-TREND

Leggere Di più Meno

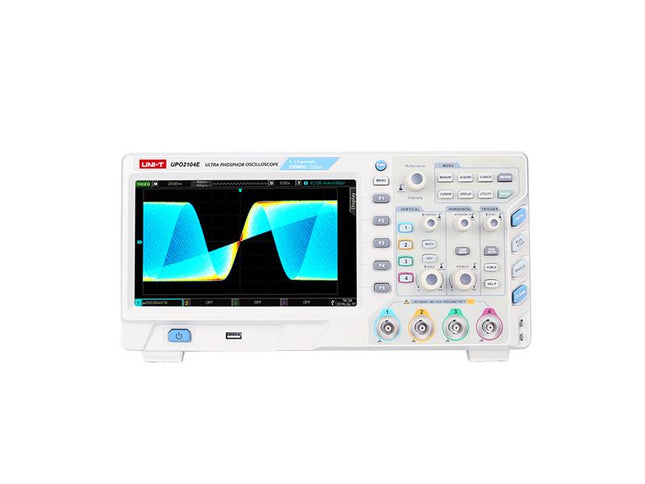

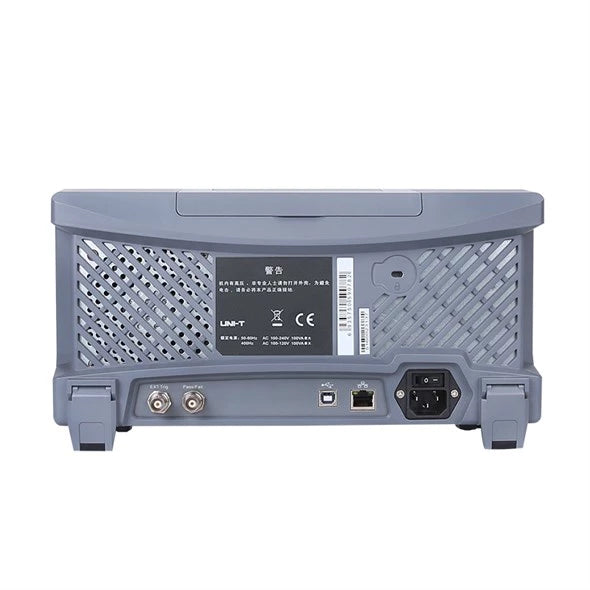

UNI-T UPO2104E Oscilloscope This product comes with a 3-year warranty. The UPO2104E oscilloscope is a digital oscilloscope featuring Ultra Phosphor technology from the UPO2000E series. Compared to the lower-end model, the UPO2102E offers 4 channels. It is also equipped with a sampling rate of 1 GS/s. This is sufficient for a bandwidth of 100 MHz (unlike the lower-end versions, the UPO2072CS and UPO2074CS, which are limited to 70 MHz). It is a multifunctional, high-performance, easy-to-use oscilloscope with excellent technical specifications. It has an 800 x 480 pixel display. It supports USB storage and communication with a PC via Plug and Play USB. Software for connecting to a PC can be downloaded from the manufacturer’s website: https://instruments.uni-trend.com/list_77/945.html. It differs from the previous version of the UPO2104CS with new firmware. Product specifications: - bandwidth 100MHz - 4 channels - sampling rate 1 GS/s - maximum memory depth 56 Mpts (per channel) (previously, up to 28 Mpts per waveform) - up to 28 Mpts per second 80,000 wfms/s (previously 50,000 wfms/s) - Time base range 5 ns/div – 50 s/div - input impedance (1 MΩ ± 2%) // (20 pF ± 3 pF) - vertical axis/V/div - 1 mV/div (1 MΩ) - DC gain accuracy ± 3% - number of saved waveforms 65,000 - Triggering: Edge, Window, Runt, Time Out, Nth Edge, Delay, Duration, Setup/Hold, Pulse Width, Slope, Video, Pattern, RS232 / UART B, operations: - waveform, I2/C A-B, AxB, A / B, FFT, Editable Advanced, Filter - Automatic measurement: Max, Min, High, Low, Middle, Pk-Pk, Amplitude, Mean, Cycle Mean, RMS, Cycle RMS, Cycle Area, Overshoot, Pre-Shoot, Period, Freq, Rise, Fall, + -D,D,D,D,D,D,D,D FallDelay, Phase, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF - number of measurements: 5 simultaneous measurements - statistics: mean, max, min, standard deviation, number of measurements - frequency counter: 6 bits - standard interfaces: USB-Device, Pass Out, UX, LAN Technical parameters: - Power supply: 100V–240V AC, 50/60Hz - display: 8 inches, 800x480 pixels - Weight: 3.5 kg - Dimensions: 336x160x16 mm : - 4 probes (with switchable 1x, 10x range) - Detachable three-wire power cable - USB cable - Quick installation guide with links to the manufacturer’s website MANUFACTURER: UNI-TREND

Leggere Di più Meno

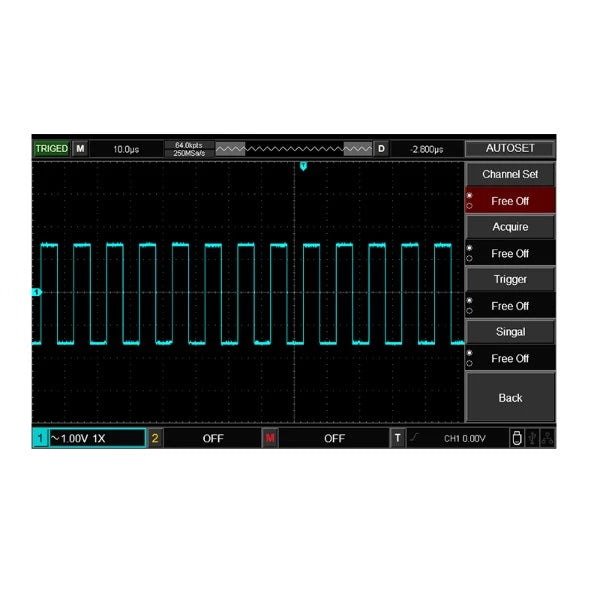

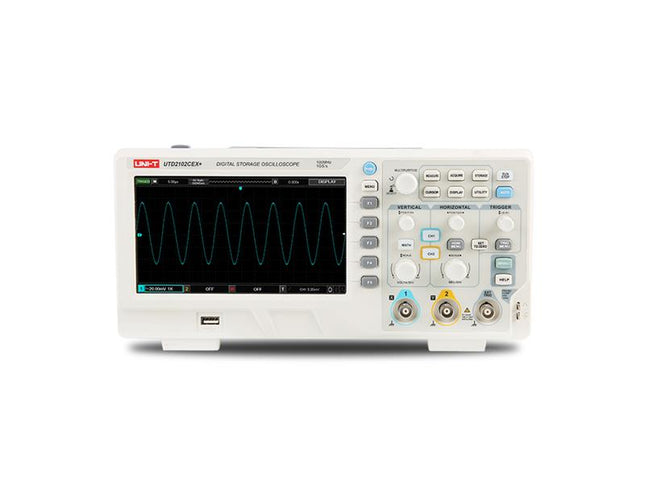

This product comes with a 3-year warranty. The UTD2102CEX+ oscilloscope is a high-performance, multifunctional desktop digital oscilloscope from the UTD2000CEX+ series, which is easy to operate, has excellent technical specifications, and features two analogue input channels, offering a bandwidth of 100 MHz/GS with a sampling rate of 1. It is equipped with a seven-inch TFT colour display with a resolution of 800 x 480 pixels. The oscilloscope has an internal memory with a depth of 64 kpts and a CEX-II waveform capture rate of up to 20,000 wfms/s, and allows automatic measurement of up to 34 signals/mathematical parameters. The simple front panel with clearly marked functions for basic operations, scaling and positioning of individual channels allows users to apply the skills acquired from using traditional instruments, so that the oscilloscope can be used without the need to learn anything complicated and can be used for long periods without fatigue. In addition, the device can be easily set up by pressing the AUTO button. The oscilloscope supports USB storage, and thanks to the USB OTG function, you can save measured values to a USB flash drive. It also supports communication with a computer via USB plug and play. The option to download software for connecting to a PC and updating the firmware is available on the manufacturer’s website: https://instruments.uni-trend.com/digital-oscilloscopes/947.html You can download the data sheet from the manufacturer’s website: http://unitrend.oss-cn-hongkong.aliyuncs.com/20220526/1653549897498061.pdf Product specifications: - bandwidth: 100MHz - number of input channels: 2: - (1MΩ±2%)//(24pF±3pF) - compensated signal input: within the range of 3Vpp/1kHz - max. input voltage: 400Vpk, max. transient 1000Vpk - sampling rate: 1 GS/s - base time range: 2 ns/div to 50 s/div - rise time: ≤ 3.5 ns - vertical axis: 1 mV/div to 20 V/div (1 mV/div), each channel has a separate vertical resolution: - DC gain accuracy: ±3% - saved recording length: 2 x 512k sample points - memory depth: one channel 64kpts, two channels 2 x 32kpts - Triggering: Edge, Pulse, Video, Slope, Alternating waveform A-B, A+- mathematical triggering. AxB, A/B, FFT, Editable Advanced, Filter - automatic measurement of signal parameters: Max, Min, High, Low, Middle, Pk-Pk, Amplitude, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, Overshoot, Pre-shoot, Period, Freq, Rise, Fall - Width, +, - Duty, RiseDelay, FallDelay, Phase, FRFR, FRFF, FFFR, FFFF, FRLF, FRLR, FFLR, FFLF - number of measurements: 5 simultaneous measurements - statistical measurement: mean, Max, Min, standard deviation, number of measurements - frequency counter: 6-bit, USB-UX interface, standard LAN: USB-UX, (Trig Out, Pass/Fail) - on-screen software buttons - on-screen software keyboard for naming saved files - number of files stored in the oscilloscope memory/USB flash drive: 20/200 - Saving the current screen as a BMP file to a USB flash drive - multilingual menu in Spanish, German, English, German, English, German, others (Russian) Technical specifications: - display: TFT, diagonal 178 mm (7 inches), 800 x 480 pixels x RGB, max. brightness typically 300 nits - calibration interval: 1 year - power supply: 100V–240V AC, 45 to 440Hz - power consumption: max. 100VA - operating ambient temperature: 0°C to +40°C - operating ambient humidity: <35°C: ≤90% RH, 35°C to 40°C: ≤60% RH - Operating altitude: max. 2000m - Storage temperature: -20°C to +40°C - dimensions (W x H x D): 306 x 138 x 124 mm - Weight: net 2.5 kg, gross 3 kg Contents of individual package: U>+2 oscilloscope: 1 pc - 100MHz UT-P04 probe (with compensation and switchable 1x, 10x divider): 2 pcs - Detachable three-core power cable: 1 pc - UT-D14 USB cable: 1 pc - A quick installation guide with a link to the manufacturer’s instructions – usage Wholesale packaging: - Standard carton dimensions: 450 x 420 x 280 mm - Number of items per pack: 2 pcs - Carton weight: 8 kg Manufacturer: UNI>-TREND

Leggere Di più Meno

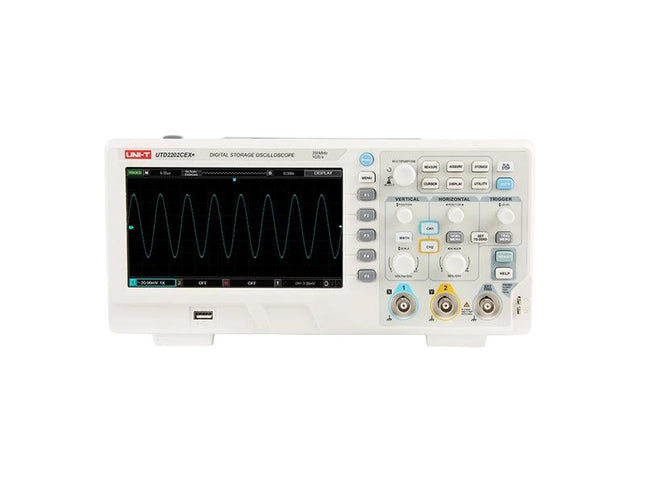

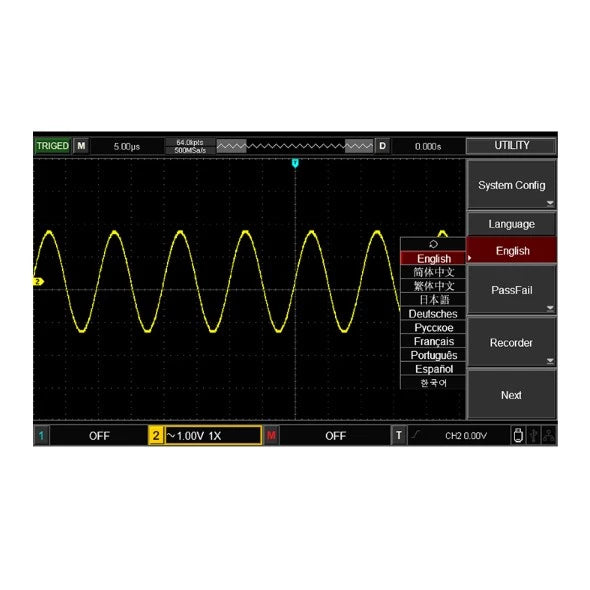

This product comes with a 3-year warranty. The UTD2202CEX+ oscilloscope is the highest-quality digital benchtop oscilloscope in the UTD2000CEX+ series. It is a multifunctional, high-performance, easy-to-use oscilloscope with excellent technical specifications, featuring two analogue input channels, offering a bandwidth of 200 MHz with a sampling rate of 1 GS/s. It is equipped with a seven-inch TFT colour display with a resolution of 800 x 480 pixels. The oscilloscope has an internal memory with a depth of 64 kpts and a CEX-II waveform capture rate of up to 20,000 wfms/s, and allows automatic measurement of up to 34 signals/mathematical parameters. The simple front panel with clearly marked functions for basic operations, scaling and positioning of individual channels allows users to apply the skills acquired from using traditional instruments, so that the oscilloscope can be used without the need to learn anything complicated and can be used for long periods without fatigue. Furthermore, the device can be easily set up by pressing the AUTO button. The oscilloscope supports USB storage, and thanks to the USB OTG function, you can save measured values to a USB flash drive. It also supports communication with a computer via USB plug and play. Software for connecting to a PC and updating the firmware can be downloaded from the manufacturer’s website: https://instruments.uni-trend.com/digital-oscilloscopes/947.html You can download the data sheet from the manufacturer’s website: http://unitrend.oss-cn-hongkong.aliyuncs.com/20220526/1653549897498061.pdf Product specifications: - bandwidth: 200MHz - number of inputs: 2 - 2 (1MΩ±2%)//(24pF±3pF) - compensated signal input: within the range 3Vpp/1kHz - Max. input voltage: 400 Vpk, max. transition 1000 Vpk - sampling rate: 1GS/s - base time range: 2 ns/div to 50 s/div - rise time: ≤1.7 ns - vertical axis: 1mV/div to 20V/div (1MV/div), each channel has a vertical resolution of 8 bits/>- DC gain accuracy: ±3% - saved recording length: 2 x 512k sample points - memory depth: one channel 64kpts, two channels 2 x 32kpts - Triggering: Edge, Pulse, Video, Slope, Alternating trigger. - Mathematical functions: AB, Ax, Ax, A+ A/B, FFT, Editable Advanced, Filter - Automatic measurement of signal parameters: Max, Min, High, Low, Middle, Pk-Pk, Ample, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, Overshoot, Pre-shoot, Period, Freq, Rise, Fall, + Width, Du, Delay, Dy, D, D, D FallDelay, Phase, FRFR, FRFF, FFFR, FFFF, FRLF, FRLR, FFLR, FFLF - number of measurements: 5 simultaneous measurements - statistical measurement: mean, Max, Min, standard deviation, number of measurements - frequency counter: 6-bit - standard interface: USB-UX-Host, USB-Device: Pass/Fail) - on-screen software buttons - On-screen software keyboard for naming saved files - number of files stored in the oscilloscope memory/USB flash drive: 20/200 - Saving the current screen as a BMP file to a USB flash drive - Multilingual menu (including English, German, French, Portuguese, Spanish and Russian) Technical specifications: - display: 178 mm (7-inch) diagonal, 800x480 pixels x RGB, max. typical brightness 300 nits - calibration interval: 1 year - power supply: 100V–240V AC, 45 to 440Hz - power consumption: max. 100VA - operating ambient temperature: 0°C to +40°C - operating ambient humidity: <35°C: ≤90% RH, 35°C to 40°C: ≤60% RH - Operating altitude: max. 2000m - Storage temperature: -20°C to +40°C - dimensions (W x H x D): 306 x 138 x 124 mm - Weight: net 2.5 kg, gross 3 kg Contents of individual package: - 2002CEX/2002 pc - Probe: 2 x UT-P05 200MHz (with compensation and switchable divider 1x, 10x): - detachable three-wire power cable: 1 pc - UT-D14 USB cable: 1 pc - a quick installation guide with a link to the website / -> user instructions packaging: - standard box dimensions: 450 x 420 x 280 mm - number of items in the pack: 2 - box weight: 8kg Manufacturer: UNI-TREND -

Leggere Di più Meno

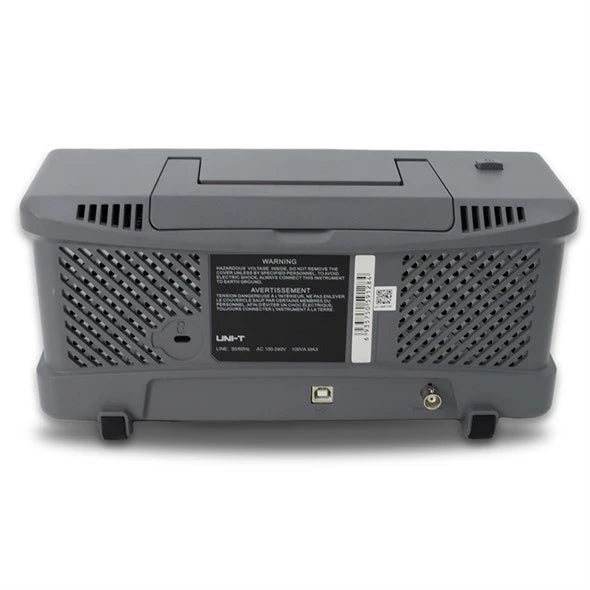

This product comes with a 3-year warranty. The UTD2102CL+ oscilloscope is a high-performance, multifunctional desktop digital oscilloscope from the UTD2000CL+ series, which is easy to operate, with excellent technical specifications, featuring two analogue input channels, offering a bandwidth of 100 MHz/s with a sampling rate of 5000 MS/s. It is equipped with a seven-inch TFT colour display with a resolution of 800 x 480 pixels. The oscilloscope has an internal memory with a depth of 64 kpts and a waveform capture rate of 5,000 wfms/s, and allows automatic measurement of up to 34 signal parameters and simple operation via the front panel with basic mathematical functions. Dedicated functions for basic operations, scaling and positioning of individual channels allow you to use the skills acquired from using traditional instruments, so that the oscilloscope can be used without the need to learn anything complicated and can be used for long periods without fatigue. Furthermore, the device can be easily set up by pressing the AUTO button. The oscilloscope supports USB storage, and thanks to the USB OTG function, you can save measured values to a USB flash drive. It also supports communication with a computer via USB plug-and-play. The software download option for connecting to a PC and updating the firmware is available on the manufacturer’s website: https://instruments.uni-trend.com/download?name=161&scode=77&series=UTD2000CL+/CL You can download the data sheet from the manufacturer’s website: http://unitrend.oss-cn-hongkong.aliyuncs.com/20220526/1653548284320621.pdf Product specifications: - bandwidth: 100MHz - number of coupling channels: 2 input: - (1MΩ±2%)//(18pF±3pF) - compensated signal input: within the range of 3Vpp/1kHz - max. input voltage: 400Vpk, max. transition 1000Vpk - sampling rate: 500 MS/s - Time base range: 2 ns/div to 50 s/div - rise time: ≤ 3.5 ns - vertical axis: 1 mV/div to 20 V/div, each vertical channel has a separate resolution:<br/1 MΩ bit - DC gain accuracy: ≤ ±3% in the range 5 mV to 20 V/div and ≤ ±4% in the range 1 mV to 2 mV/div - saved recording length: 2 x 512k sample points - memory depth: 2 x 64k per channel for 32 kpts - Triggering: Edge, Pulse, Video, Slope, Alternating trigger - mathematical operations on waveforms: A+B, A-B, AxB, A/B, FFT, Editable Advanced, Filter - automatic measurement of signal parameters: Max, Min, High, Low, Middle, Pk-Pk, RMS Cycle, Mean, RMS Amplitude, Cycle, RMS Area, Cycle Area, Overshoot, Pre-shoot, Period, Freq, Rise, Fall, + Width, -Width, +Duty, -Duty, RiseDelay, FallDelay, Phase, FRFR, FRFF, FFFR, FFFF, FRLF, FRLR, FFLR, FFLF - number of simultaneous measurements: average 5, max. and min. measurements, standard deviation, number of measurements - frequency counter: 6-bit - standard interface: USB-Host, USB-Device, AUX (Trig Out, Pass/Fail) - on-screen software buttons - on-screen software keyboard for naming saved files - number of files stored in the oscilloscope’s memory: 2/USB20 - flash memory saving: 2/20 current screen in BMP format to a USB flash drive - multilingual menu (including English, German, French, Portuguese, Spanish, Russian) Technical specifications: - display: TFT LCD, 178 mm (7-inch) diagonal, 800 x 480 pixels x RGB, typical maximum brightness 300 nits - calibration interval: 1 year - power supply: 100V–240V AC, 50/60Hz - power consumption: max. 100VA - operating ambient temperature: 0°C to +40°C - operating ambient humidity: <35°C: ≤90% RH, 35°C to 40°C: ≤60% RH - Operating altitude: max. 2000m - Storage temperature: -20°C to +60°C - dimensions (W x H x D): 306 x 138 x 124 mm - Weight: net 2.5 kg, gross 3 kg Contents of individual package: - 102 pcs. 100MHz UT-P04 probe (with compensation and switchable 1x, 10x divider): 2 pcs - detachable three-core power cable: 1 pc - UT-D14 USB cable: 1 pc - a quick installation guide with a link to the manufacturer’s website - instructions for use Manufacturer: UNI-TREND -

Leggere Di più Meno

This product comes with a 3-year warranty. The UTD1062C combines a single-channel portable oscilloscope and a multimeter in a single unit. It offers excellent specifications and a range of advanced functions, as well as ease of use, making it suitable for use in the field. The oscilloscope’s bandwidth is up to 50MHz at a sampling rate of 200MSa/s. Its powerful triggering and analysis functions facilitate the acquisition and analysis of waveforms, capable of measuring 22 signal parameters fully automatically. A multimeter allows you to measure DC and AC voltages and currents, resistance and capacitance. The device features a built-in 3.5-inch colour LCD display with a resolution of 320 x 240 pixels. The display is easy to read even in bright light. In multimeter mode, the maximum value displayed is ±3999. The device is powered by a built-in Li-ion battery or a 9V/4A AC/DC adapter. As the device’s design is based on traditional instrument controls, users can operate these devices without having to spend a significant amount of time learning and familiarising themselves with the input voltage range. 150V in CAT II (1:1 probe divider) and an input voltage of 300V in CAT II (1:10 probe divider). 200MS/s - Max. memory depth: 12 kpts - A/D converter resolution: 8 bits - Time base range: 5 ns/div to 50 s/div - Input coupling: (1 MΩ ±2%) // (21 pF ±3 pF) - vertical axis: 5 mV/div/div – 2 mV/MΩ/div – 2/MΩ ± 2% ≤ 7 ns - Trigger: edge, pulse, video - automatic measurements: peak-to-peak, amplitude, maximum, minimum, high, low, average, root mean square, overshoot, preshoot, frequency, period, rise time, fall time, positive pulse, negative pulse, positive duty cycle, negative duty cycle, delay, FFT, delay, Hamming Blackman-Harris, Rectangular - internal memory storage: 10 groups of curves, 10 setting modes - saving to USB: 10 waveform groups, 10 interface groups Multimeter - DC voltage measurement ranges: 400mV / 0.4V / 0V / 400mV; accuracy ±(1%+5) - AC voltage measurement ranges (40Hz to 400Hz): 400mV / 4V / 40V / 400V; accuracy ±(1.2%+5); - DC current measurement ranges: 350µA; accuracy ±(1.2%+5); 40mA / 400mA; accuracy ±(1%+5); for 6A (with UT-M07 converter up to 10A) accuracy ±(1.5%+5) - AC current measurement ranges (40Hz to 400Hz): 350µA; accuracy ±(1.2%+5); accuracy 40mA / 400mA ±(1.5%+5); for 6A (with UT-M07 converter at 10A) accuracy ±(2.5%+5) - resistance measurement ranges: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ accuracy ±(1.2%+5); for 40MΩ accuracy ±(1.5%+5); - capacitance measurement ranges: 51.2nF / 512nF / 5.12µF / 51.2µF / 100µF; accuracy ±(3%+5) - diode and continuity testing: yes - range switching mode: automatic / manual - display and recording of trend curves for changes in voltage, current and resistance Technical parameters: - power supply: 2450V AC, - 2450V 440Hz, CAT II, ​​power consumption < 20VA - Standard interface: 1 x mini USB-Host - battery: Li-ion 7.4V/3600mA - battery life: 8 hours - display: 3.5 inches, 320 x 240 pixels - recommended once a year IP rating: IP2X - Operating ambient temperature: 0°C to +40°C - Storage temperature: -20°C to +60°C - Operating ambient humidity: +10°C to +30°C: ≤90% ± 5%RH, +30°C to +40°C Altitude: max. 3,000 m above sea level - Non-operational (storage) altitude: 5,000 m above sea level - Net weight: 0.9 kg - gross weight: 2.3 kg - Dimensions: 199 x 118 x 49 mm Package contents: - UTD1050CL: 1 pc - probe with 1.2 m cable and 1x, 10x switchable divider (UT-H03): 1 pc - current (10A) / voltage converter module (UT-M07): 1 pc - current (4A to 6A) / voltage converter module (UT-1004) : (UT-105004) 240 V AC rms, 45 to 440 Hz, CAT II: 1 pc - USB-Host / mini USB cable (UT-D17): 1 pc - User manual: 1 pc Packaging for bulk customers: ->- standard quantity per box: - 5 pcs. 190 x 330 mm - gross weight of box: approx. 3.3 kg MANUFACTURER: UNI-TREND Software update: https://instruments.uni-trend.com/EU-EN/handheldoscilloscopes/utd1000l.html

Leggere Di più Meno

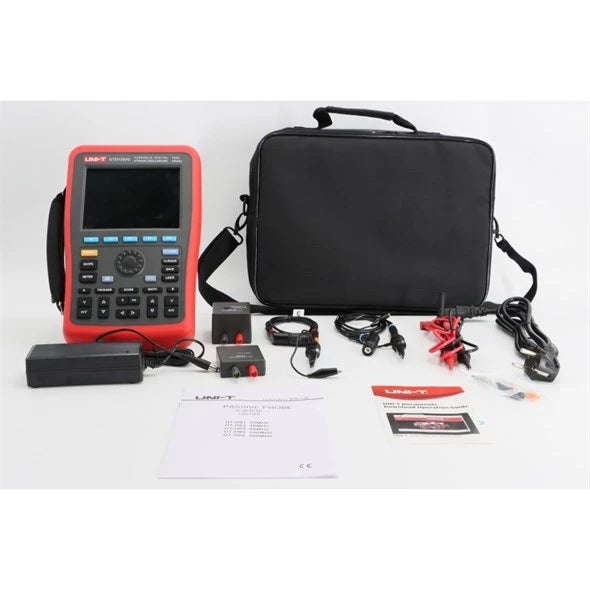

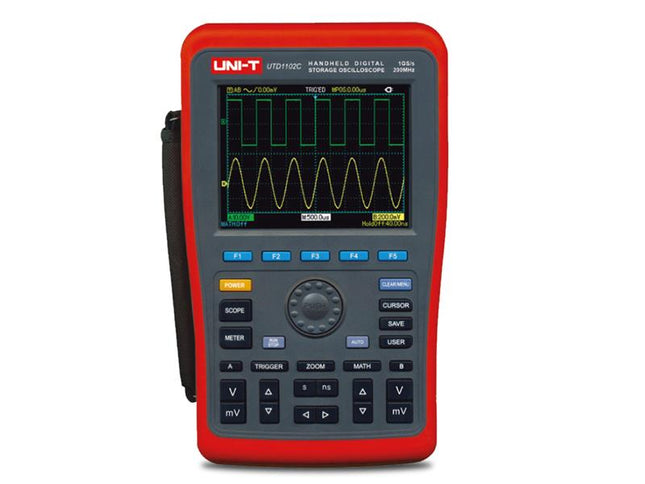

This product comes with a 3-year warranty. The UTD1102C combines a two-channel portable oscilloscope and a multimeter in a single unit. It offers excellent specifications and a range of advanced functions, as well as ease of use, making it suitable for use in the field. The oscilloscope’s bandwidth is up to 100MHz at a sampling rate of 500MSa/s. Its powerful triggering and analysis functions facilitate the acquisition and analysis of waveforms, capable of measuring 27 signal parameters fully automatically. A multimeter allows you to measure DC and AC voltages and currents, resistance and capacitance. The device features a built-in 5.7-inch colour LCD display with a resolution of 320 x 240 pixels. The display shows waveforms in monochrome mode, making it easy to read even in bright light. In multimeter mode, the maximum value on the display is ±5999. The device is powered by a built-in Li-ion battery or a 9V/4A AC/DC adapter. As the device’s design is based on traditional multimeter controls, users can operate it without needing to spend a significant amount of time learning and familiarising themselves with the input voltage range. 150V in CAT II (1:1 probe divider) and an input voltage of 300V in CAT II (1:10 probe divider). 500MS/s - Max. memory depth: 7.5 kpts - A/D converter resolution: 8 bits - Time base range: 2 ns/div to 50 s/div - Input coupling: (1 MΩ ± 2%) // (21 pF ± 3 pF) - vertical axis: 5 mV/div)<br/5 mV/div) edge: ≤ 3.5 ns - Trigger: Edge, pulse, video - mathematical operations with sequences: A + B, A - B, A × B, A : B - automatic measurement: peak-to-peak, amplitude, maximum, minimum, high, low, average, mean, root mean square, overshoot, positive frequency, rise time, pulse, overshoot, positive frequency, rise time, cycle time, positive duty cycle, negative duty cycle, rise delay, fall delay - FFT: Hanning, Hamming, Blackman-Harris, rectangular - internal memory storage: 10 groups of curves, 10 setting modes - USB saving: 10 groups of curves, 10 groups of measurement interfaces Range of DC voltage measurement interfaces: 600mV / 6V / 60V / 600V / 1000V; accuracy ±(1%+5) - AC voltage measurement ranges (45Hz to 400Hz): 600mV / 6V / 60V / 600V / 700V; accuracy f < 200Hz ±(1.2%+5); accuracy f ≥ 200Hz ±(1.5%+5) - DC current measurement ranges: 6mA / 60mA / 600mA; accuracy ±(1.2%+5); for 6A accuracy ±(1.5%+5) - AC current measurement ranges (45 Hz to 400 Hz): 6 mA / 60 mA / 600 mA; accuracy ±(2%+5); for 6 A accuracy ±(2.5%+5) - resistance measurement ranges: 6kΩ / 60kΩ / 600kΩ; accuracy ±(1.2%+5); 600Ω / 6MΩ / 60MΩ; accuracy ±(1.5%+5); - capacitance measurement ranges: 6nF / 6mF; accuracy ±(5%+10); 60nF / 600nF / 6µF / 60µF / 600µF; accuracy ±(4%+5); - diode and continuity testing: yes - range switching mode: automatic/manual - display and recording of trend curves for changes in voltage, current and resistance Technical parameters: - power supply: 2450V AC, 440Hz, CAT II, power consumption < 20VA - Standard interface: 1 x USB-Host - battery: Li-ion 7.4V/4400mA - battery life: 3 hours - display: 8 inches, 800 x 480 pixels - IP rating: calibration recommended - once a year - IP2X - Operating ambient temperature: 0°C to +40°C - Storage temperature: -20°C to +60°C - Ambient operating humidity: <35°C: ≤90% RH, 35°C to 40°C: ≤60% RH - operating altitude: max. 3000m above sea level - non-operational (storage) altitude: 15,000 m above sea level - Net weight: 1.8 kg - gross weight: 4.5 kg - dimensions: 268 x 168 x 60mm Package contents: UTD1102C: 1 pc - probe with 1.2 m cable and 1x, 10x switchable divider (UT-H04): 2 pcs - current (4mA to 600mA) / voltage converter module (UT-M03): 1 pc - current (4A to 6A DC converter ) / voltage adapter/UT-M04 module 100 to 240 V AC rms, 45 to 440 Hz, CAT II: 1 pc - USB cable: 1 pc - User manual: 1 pc Packaging for bulk customers: - Standard quantity per box: 4 pcs x box dimensions: 400 x 200 x 200 mm - Gross weight of box: approx. 16.7 kg MANUFACTURER: UNI-TREND Software update: https://instruments.uni-trend.com/EU-EN/handheldoscilloscopes/utd1000c.html

Leggere Di più Meno

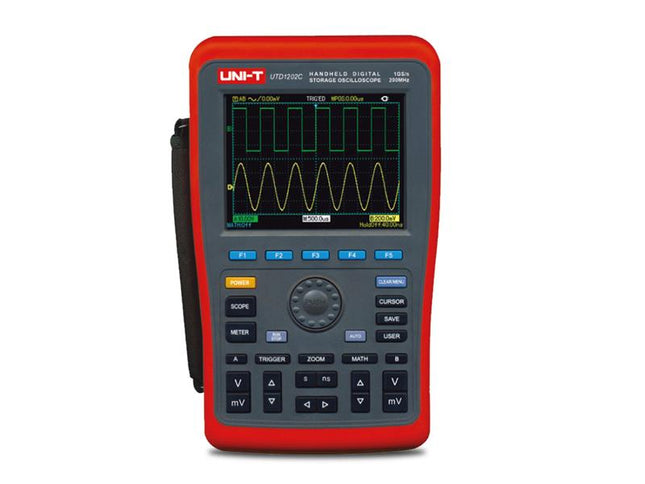

This product comes with a 3-year warranty. The UTD1202C combines a two-channel portable oscilloscope and a multimeter in a single unit. It offers excellent specifications and a range of advanced functions, as well as ease of use, making it suitable for fieldwork. The oscilloscope’s bandwidth is up to 200MHz at a sampling rate of 1GSa/s. Its powerful triggering and analysis functions facilitate the acquisition and analysis of waveforms, capable of measuring 27 signal parameters fully automatically. A multimeter allows you to measure DC and AC voltages and currents, resistance and capacitance.The device features a built-in 5.7-inch colour LCD display with a resolution of 320 x 240 pixels. The display shows waveforms in monochrome mode, making it easy to read even in bright light. In multimeter mode, the maximum value displayed is ±5999.The device is powered by a built-in Li-ion battery or a 9V/4A AC/DC adapter.As the device’s design is based on traditional multimeter controls, users can operate it without needing to spend a significant amount of time learning and familiarising themselves with the input voltage range. 150V in CAT II (1:1 probe divider) and an input voltage of 300V in CAT II (1:10 probe divider). Max. memory depth: 7.5 kpts- A/D converter resolution: 8 bits- Basic time base range: 2 ns/div to 50 s/div- Input coupling: (1 MΩ ±2%) // (21 pF ±3 pF)- Vertical axis: 5 mV/div/div)- Trigger: Edge, pulse, video- Mathematical operations with signals: A + B, A - B, A × B, A : B- automatic measurement: peak-to-peak, amplitude, maximum, minimum, high, low, average, mean, root mean square, overshoot, positive frequency, rise time, pulse, overshoot, overshoot, frequency, overshoot, pulse, overshoot, overshoot, rise time, positive duty cycle, negative duty cycle, rise delay, fall delay- FFT: Hanning, Hamming, Blackman-Harris, rectangular- internal memory storage: 10 groups of curves, 10 setting modes- USB saving: 10 groups of curves, 10 groups of measurement interfaces Range of DC voltage measurement interfaces: 600mV / 6V / 60V / 600V / 1000V; accuracy ±(1%+5)- AC voltage measurement ranges (45Hz to 400Hz): 600mV / 6V / 60V / 600V / 700V; accuracy f < 200Hz ±(1.2%+5); accuracy f ≥ 200Hz ±(1.5%+5) - DC current measurement ranges: 6mA / 60mA / 600mA, accuracy ±(1.2%+5); for 6A accuracy ±(1.5%+5)- AC current measurement ranges (45Hz to 400Hz): accuracy 6mA / 60mA / 600mA ±(2%+5); for accuracy 6A ±(2.5%+5)- resistance measurement ranges: accuracy 6kΩ / 60kΩ / 600kΩ ±(1.2%+5); accuracy 600Ω / 6MΩ / 60MΩ ±(1.5%+5);- capacitance measurement ranges: accuracy 6nF / 6mF ±(5%+10); accuracy 60nF / 600nF / 6µF / 60µF / 600µF ±(4%+5);- Diode and continuity testing: yes- range switching mode: automatic / manual- display and recording of trend curves for changes in voltage, current and parameters >Technical/resistance: - power supply: 100V–240V AC, 45 to 440Hz, CAT II, power consumption < 20VA- standard interface: 1 x USB-Host- battery: Li-ion 7.4V/4400mA- Battery life: - 2 hours: 80 inches, display: 80 inches - 2 hours per pixel- Calibration: recommended once a year- IP protection: IP2X- Operating ambient temperature: 0°C to +40°C- Storage temperature: -20°C to +60°C- Operating ambient humidity: <35℃: ≤90%RH, ≤90%RH, ≤90%RH: 35℃-40℃>-40°C altitude: max. 3000m above sea level- Non-operational (storage) altitude: 15,000 m above sea level- net weight: 1.8 kg- gross weight: 4.5 kg- dimensions: 268 x 168 x 60 mm package contents: UTD1202C: 1 pc- probe with 1.2 m cable and 1x, 10x switchable divider (UT-H05): 2 pcs- current (4mA to 600mA) / voltage converter module (UT-M03): 1 pc- Current (4A to 6A voltage converter) / DC/UT-M04 module 100 to 240 V AC rms, 45 to 440 Hz, CAT II: 1 pc- USB cable: 1 pc- User manual: 1 pc Packaging for bulk customers: - Standard quantity per box: 4 pcs x box dimensions: 400 x 200 x 200 mm- Gross weight of box: approx. 16.7 kg MANUFACTURER:UNI-TREND Software update: https://instruments.uni-trend.com/EU-EN/handheldoscilloscopes/utd1000c.html

Leggere Di più Meno
