DEYE Inverters

The DEYE SUN-12K-SG05LP3-EU-SM2 hybrid inverter is a high-performance three-phase solution designed for residential and small commercial photovoltaic systems. With a power output of 12 kW, hybrid functionality and advanced energy management, this inverter enables the efficient integration of solar power, battery storage and a stable energy supply for connected loads. It is an ideal choice for users looking to maximise self-consumption, improve energy independence and reduce reliance on the grid. Model SUN-3K-SG05LP3-EU-SM2 SUN-4K-SG05LP3-EU-SM2 SUN-5K-SG05LP3-EU-SM2 SUN-6K-SG05LP3-EU-SM2 SUN-8K-SG05LP3-EU-SM2 SUN-10K-SG05LP3-EU-SM2 SUN-12K-SG05LP3-EU-SM2 Battery Input Data Battery Type Lead-acid or Lithium-ion Battery Voltage Range (V) 40–60 Max. Charging Current (A) 70 95 120 135 190 210 240 Max. Discharge Current (A) 70 95 120 135 190 210 240 Charging Strategy for Li-ion Battery Self-adaptation to BMS Number of Battery Inputs 1 PV String Input Data Max. PV Input Power (W) 6000 8000 10,000 12,000 16,000 20,000 24,000 Max. PV Input Power (W) 4500 6400 8000 9600 12800 16,000 19200 Max. PV Input Voltage (V) 800 Start-up Voltage (V) 160 MPPT Voltage Range (V) 200–650 Rated PV Input Voltage (V) 550 Max. Operating PV Input Current (A) 20+20 20+20 20+20 20+20 26+26 26+26 26+26 Max. Input Short-Circuit Current (A) 30+30 30+30 30+30 30+30 39+39 39+39 39+39 No. of MPP Trackers / No. of Strings MPP Tracker 2 / 1+1 2 / 1+1 2 / 1+1 2 / 1+1 2 / 2+2 2 / 2+2 2 / 2+2 AC Input/Output Data Rated AC Input/Output Active Power (W) 3000 4000 5000 6000 8000 10,000 12,000 Max. AC Input/Output Apparent Power (VA) 3300 4400 5500 6600 8800 11,000 13200 Rated AC Input/Output Current (A) 4.6/4.4 6.1/5.8 7.6/7.3 9.1/8.7 12.2/11.6 15.2/14.5 18.2/17.4 Max. AC Input/Output Current (A) 5/4.8 6.7/6.4 8.4/8 10/9.6 13.4/12.8 16.7/16 20/19.2 Max. Continuous AC Passthrough (grid to load) (A) 45 Peak Power (off-grid) (W) 2 times rated power, 10s Power Factor Adjustment Range 0.8 leading to 0.8 lagging Rated Input/Output Voltage/Range (V) 220/380V, 230/400V, 0.85Un–1.1Un Rated Input/Output Grid Frequency/Range (Hz) 50/45–55, 60/55–65 Grid Connection Type 3L+N+PE Total Current Harmonic Distortion THDi <3% (of rated power) DC Injection Current <0.5% In Efficiency Max. Efficiency 97.6% Euro Efficiency 97.0% MPPT Efficiency >99% Equipment Protection Integrated DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, arc fault circuit interrupter (optional), anti-islanding protection, DC switch, insulation impedance detection, residual current detection Surge Protection Level TYPE II (DC), TYPE II (AC) Interface Communication Interface RS485/RS232/CAN Monitor Mode GPRS/Wi-Fi/Bluetooth/4G/LAN (optional) General Data Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating Permissible Ambient Humidity 0–100% Permissible Altitude 3000 m Noise (dB) ≤55 Ingress Protection (IP) Rating IP 65 Inverter Topology Non-isolated Overvoltage Category OVC II (DC), OVC III (AC) Cabinet Size (WxHxD mm) 386×660×250 (excluding connectors and brackets) Weight (kg) 35.2 Type of Cooling Intelligent Air Cooling Warranty 5 years/10 years The warranty period depends on the final installation site of the inverter; for further information, please refer to the warranty policy Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE Directive R25, G98, G99, VDE-AR-N 4105 Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Leggere Di più Meno

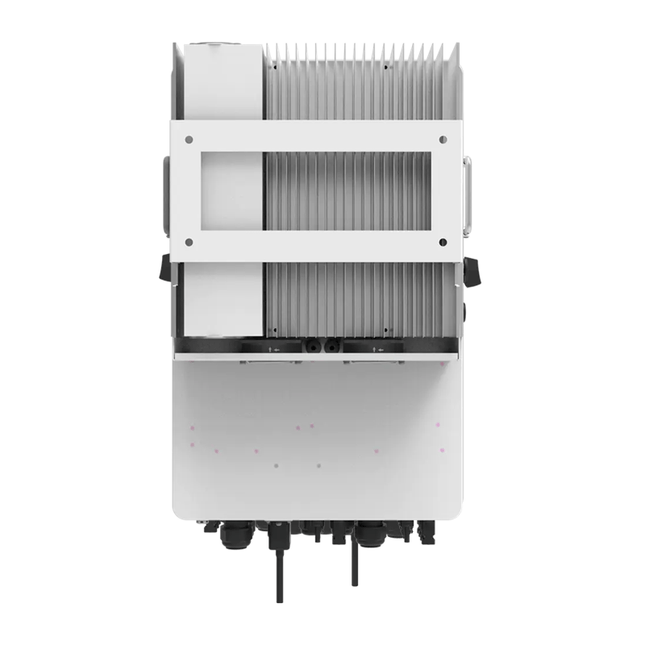

The DEYE SUN-25K-SG01HP3-EU-AM2 hybrid inverter is a high-performance three-phase solution for large-scale commercial and industrial photovoltaic systems. With a power output of 25 kW, hybrid functionality and two MPPT trackers, this inverter ensures the efficient integration of solar energy, smart battery storage and a constant supply to consumers. It is ideal for prosumers and businesses looking to optimise their energy consumption and reduce their reliance on the grid. Key technical data Nominal output power: 25,000 W (25 kW) Max. apparent AC power: 27,500 VA Max. AC output current: 40 A Number of MPPT channels: 2 Photovoltaic input voltage: up to 1,000 V PV input current per tracker: 37.5 A Max. PV input power: 32,000 W Recommended PV input power: 24,000 W Maximum efficiency: 97.6% European efficiency: 97% Protection rating: IP65 (dust and water resistant) Weight: 90.5 kg Dimensions: 408×638×237 mm (excluding connectors and brackets) Connections: RS485 / RS232 / CAN, monitoring via GPRS/Wi-Fi/Bluetooth/4G Key benefits High power output of 25 kW – ideal for commercial and industrial applications. Hybrid functionality – manages both solar generation and battery energy storage. High efficiency (97.6%) – for minimal energy loss. 2 independent MPPT trackers – maximises output by adapting to different panel orientations and tilt angles. Extensive compatibility – support for a wide range of Li-ion batteries. Integrated protections – overvoltage, overcurrent, short-circuit, thermal protection and islanding detection. Smart communication – via Wi-Fi, Bluetooth or GPRS for remote monitoring. Robust IP65 construction – suitable for outdoor conditions. Easy installation and maintenance – compact design and intuitive interface.

Leggere Di più Meno

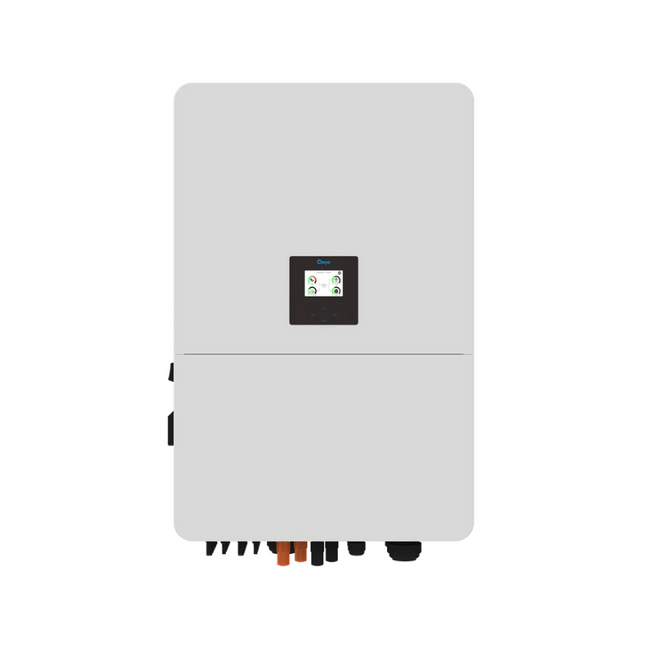

The DEYE 80kW Hybrid Inverter, 6xMPPT, SUN-80K-SG02HP3-EU HV is the ideal solution for large-scale commercial and industrial applications. With 6 independent MPPT trackers, compatibility with high-voltage batteries and parallel connection capability, this inverter offers maximum flexibility and efficiency in any advanced photovoltaic system, whether on-grid or off-grid. Compatible with 160–1000V LiFePO4 batteriesAlso works with diesel generatorsCompact design, IP65 – easy indoor or outdoor installationIntegration with monitoring systems: RS485 / CAN / WiFi / LAN / 4G (optional) Key features: Nominal AC power (grid): 80,000W Maximum photovoltaic panel power: 160,000W Number of MPPT: 6 independent trackers PV operating voltage: 150 – 850V DC HV battery compatibility: 160 – 1,000V DC Battery charge/discharge current: 160A Output voltage: 3-phase / 400V Max. efficiency: 97.6% Cooling: fan-cooled (intelligently controlled) Dimensions: 606 × 927 × 314 mm Weight: 97.5 kg Protection rating: IP65 – suitable for outdoor use Advanced features: Up to 10 inverters can operate in parallel Supports off-grid and backup operation (active phase L1) Support for installation in self-consumption or grid-feed-in systems Extensive communication: RS485 / CAN / WiFi / LAN / 4G (optional) Compatible with EMS (Energy Management System) Integrated protections: Reverse polarity protection AC/DC short-circuit protection Residual current monitoring (RCD) Type II overvoltage protection (AC and DC) Anti-islanding protection and grid detection Arc fault protection (optional) The DEYE Hybrid 80kW, 6xMPPT, SUN-80K-SG02HP3-EU HV inverter is ideal for commercial, industrial or large prosumer applications. It can be integrated with high-capacity storage solutions, operates stably in any operating mode and delivers excellent performance in all seasons.

Leggere Di più Meno

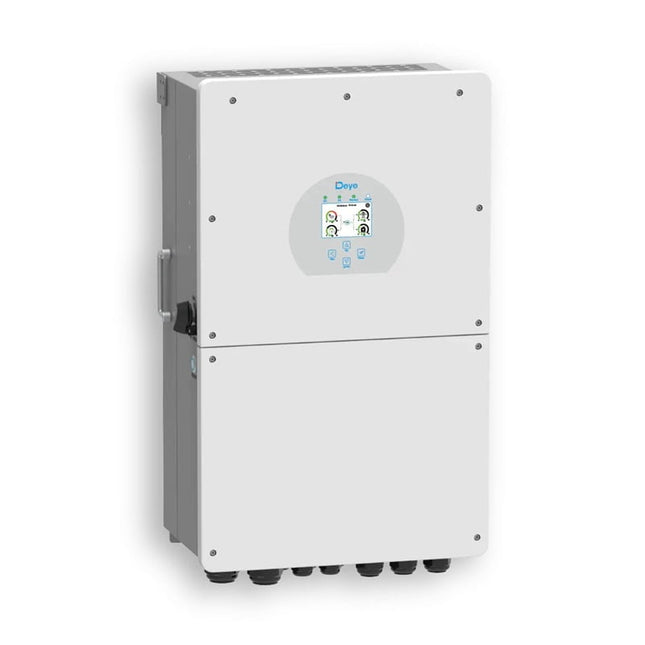

The DEYE single-phase inverter is suitable for residential use, maximising the rate of self-consumption of solar energy and increasing energy efficiency. During the day, the photovoltaic system generates electricity which is initially supplied to the loads. Any surplus energy will then charge the battery or be fed into the grid. The inverter complies with the EN50549-1 standard, meaning it can be successfully used to become a prosumer. The ‘PV surplus’ function means that in off-grid mode, when the battery is charged to a certain set percentage, the inverter automatically begins to supply voltage via the dedicated port so that the energy produced by the panels is not wasted. The battery can also be charged by the diesel generator to ensure uninterrupted power supply in the event of a grid outage. It is equipped with an RS485/CAN port for battery communication. Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts a T-type three-level topology and an enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM.

Leggere Di più Meno

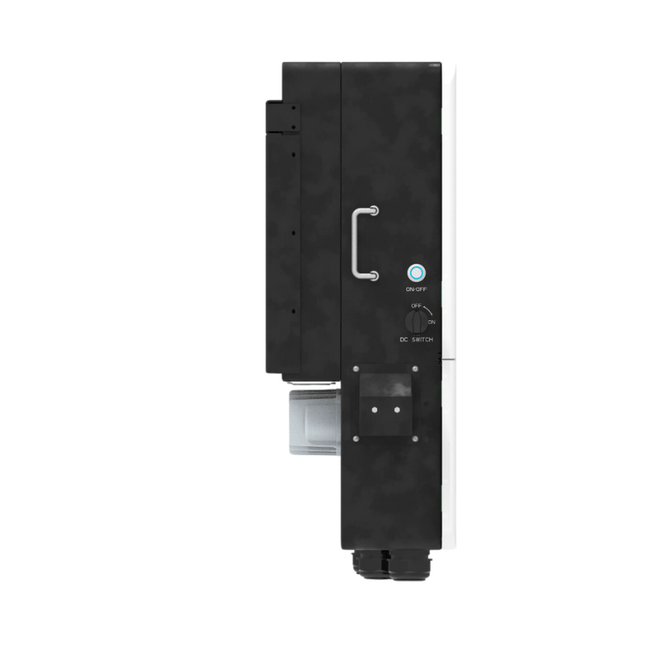

The DEYE Hybrid 15kW inverter, model SUN-15K-SG05LP3-EU-SM2, is the ideal solution for high-performance solar power systems. Designed to ensure efficient energy management, this three-phase inverter offers an excellent combination of performance and versatility, being compatible with both the mains grid and off-grid systems. The inverter is also equipped with advanced dual MPPT technology, enabling optimised solar energy capture even under variable conditions. Technical Data/Features: Rated Power: 15 kW Number of MPPT (Maximum Power Point Tracking): 2 Maximum PV Input Voltage: 800 V Maximum PV Input Power: 16,000 W Maximum PV Input Current: 22.8 A Maximum Charge/Discharge Current: 280 A Compatible Battery Type: Lithium-ion or Lead-acid Battery Voltage Range: 40–60 V Maximum Efficiency: 97.6% European Efficiency: 97.0% Power Factor: Adjustable from 0.8 lagging to 0.8 leading Operating Temperature Range: -40°C to +60°C, with derating above 45°C Integrated Protections: AC overload protection, AC/DC overvoltage protection, ground fault current monitoring, arc fault circuit interrupter, DC terminal insulation monitoring, AC short-circuit protection and DC current injection monitoring. Protection Rating: IP65, ideal for outdoor use Communication and Monitoring: GPRS, Wi-Fi, Bluetooth, 4G, LAN (optional), RS485/RS232/CAN interface Weight: 50.6 kg Dimensions: 456 x 750 x 268.5 mm This inverter also offers the ability to operate in parallel with up to 10 units to support higher loads, thus ensuring the flexibility required for complex solar energy projects. Its intelligent air-cooling system ensures stable and efficient operation in any environment. For users wishing to upgrade their existing solar systems, the inverter allows integration with energy storage systems and diesel generators, thereby offering greater autonomy and security.

Leggere Di più Meno

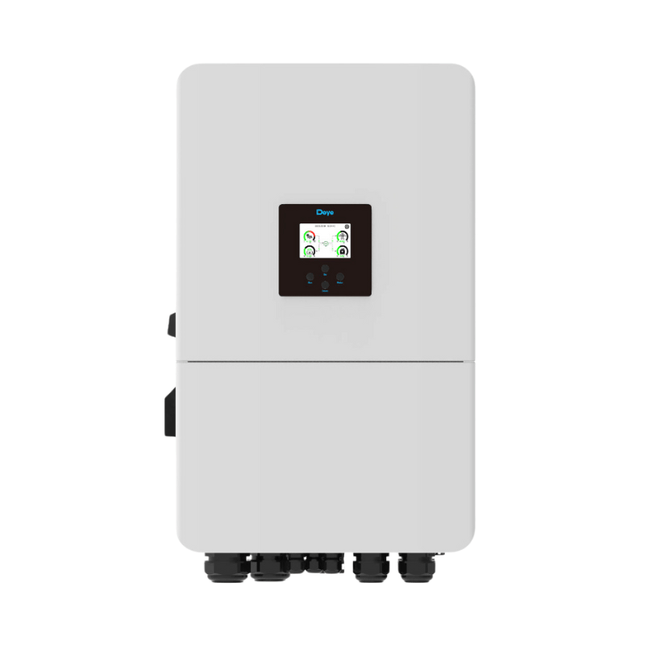

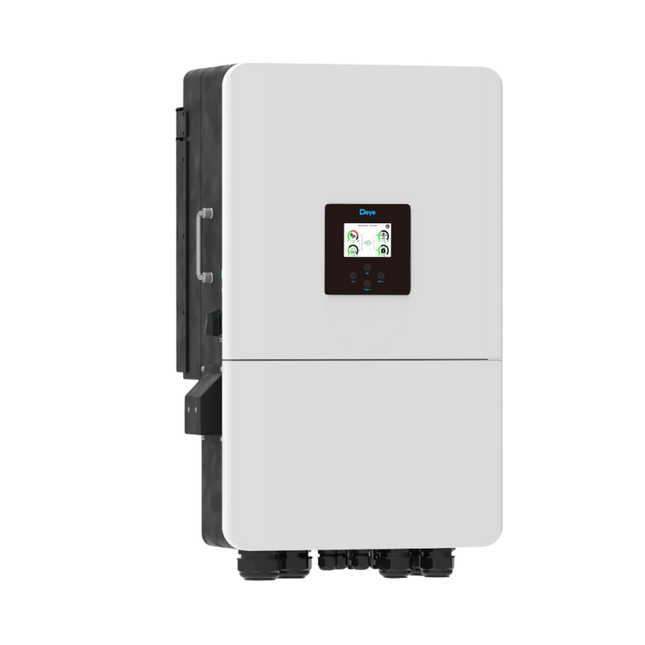

The DEYE 20kW Hybrid Inverter, model SUN-20K-SG05LP3-EU-SM2, is the flagship model in DEYE’s range of three-phase hybrid inverters. Designed to meet the most demanding requirements for efficiency and reliability, this inverter is ideal for large-scale solar installations, for both residential and commercial applications. Featuring advanced dual MPPT technology and support for low-voltage batteries, the inverter ensures optimised energy management, maximising the performance and efficiency of the solar system. Technical Data/Features: Rated Power: 20 kW Number of strings: 4 Maximum PV Input Voltage: 800 V Maximum PV Input Power: 22,000 W Maximum PV Input Current: 30.4 A Maximum Charge/Discharge Current: 350 A Compatible battery type: Lithium-ion or Lead-acid Battery Voltage Range: 40–60 V Maximum Efficiency: 97.6% European Efficiency: 97.0% Power Factor: Adjustable from 0.8 lagging to 0.8 leading Operating Temperature Range: -40°C to +60°C, with derating above 45°C Integrated Protections: AC overload protection, AC/DC overvoltage protection, ground fault current monitoring, arc fault circuit interrupter, DC terminal insulation monitoring, AC short-circuit protection and DC current injection monitoring. Protection Rating: IP65, suitable for outdoor installations Communication and Monitoring: GPRS, Wi-Fi, Bluetooth, 4G, LAN (optional), RS485/RS232/CAN interface Weight: 54 kg Dimensions: 456 x 750 x 268.5 mm The DEYE Hybrid 20kW inverter is ideal for solar projects requiring high energy production capacity, offering a flexible and efficient solution. With the ability to operate in parallel with up to 10 units, this inverter can easily adapt to extensive energy requirements, ensuring continuity and stability of power supply. Capable of managing power from diesel generators and integrating multiple batteries in parallel, this model offers a comprehensive and versatile solution for any type of solar installation, whether new or existing. The intelligent cooling system ensures efficient operation even in the harshest environmental conditions, maintaining performance at an optimal level.

Leggere Di più Meno

The DEYE SUN-10K-SG05LP3-EU-SM2 hybrid inverter is a high-performance three-phase solution designed for residential and small commercial photovoltaic systems. With a power output of 10 kW, hybrid functionality and advanced energy management, this inverter enables the efficient integration of solar power, battery storage and a stable energy supply for connected loads. It is an ideal choice for users looking to maximise self-consumption, improve energy independence and reduce reliance on the grid. Model SUN-3K-SG05LP3-EU-SM2 SUN-4K-SG05LP3-EU-SM2 SUN-5K-SG05LP3-EU-SM2 SUN-6K-SG05LP3-EU-SM2 SUN-8K-SG05LP3-EU-SM2 SUN-10K-SG05LP3-EU-SM2 SUN-12K-SG05LP3-EU-SM2 Battery Input Data Battery Type Lead-acid or Lithium-ion Battery Voltage Range (V) 40–60 Max. Charging Current (A) 70 95 120 135 190 210 240 Max. Discharge Current (A) 70 95 120 135 190 210 240 Charging Strategy for Li-ion Battery Self-adaptation to BMS Number of Battery Inputs 1 PV String Input Data Max. PV Input Power (W) 6000 8000 10,000 12,000 16,000 20,000 24,000 Max. PV Input Power (W) 4500 6400 8000 9600 12800 16,000 19200 Max. PV Input Voltage (V) 800 Start-up Voltage (V) 160 MPPT Voltage Range (V) 200–650 Rated PV Input Voltage (V) 550 Max. Operating PV Input Current (A) 20+20 20+20 20+20 20+20 26+26 26+26 26+26 Max. Input Short-Circuit Current (A) 30+30 30+30 30+30 30+30 39+39 39+39 39+39 No. of MPP Trackers / No. of Strings MPP Tracker 2 / 1+1 2 / 1+1 2 / 1+1 2 / 1+1 2 / 2+2 2 / 2+2 2 / 2+2 AC Input/Output Data Rated AC Input/Output Active Power (W) 3000 4000 5000 6000 8000 10,000 12,000 Max. AC Input/Output Apparent Power (VA) 3300 4400 5500 6600 8800 11,000 13200 Rated AC Input/Output Current (A) 4.6/4.4 6.1/5.8 7.6/7.3 9.1/8.7 12.2/11.6 15.2/14.5 18.2/17.4 Max. AC Input/Output Current (A) 5/4.8 6.7/6.4 8.4/8 10/9.6 13.4/12.8 16.7/16 20/19.2 Max. Continuous AC Passthrough (grid to load) (A) 45 Peak Power (off-grid) (W) 2 times rated power, 10s Power Factor Adjustment Range 0.8 leading to 0.8 lagging Rated Input/Output Voltage/Range (V) 220/380V, 230/400V, 0.85Un–1.1Un Rated Input/Output Grid Frequency/Range (Hz) 50/45–55, 60/55–65 Grid Connection Type 3L+N+PE Total Current Harmonic Distortion THDi <3% (of rated power) DC Injection Current <0.5% In Efficiency Max. Efficiency 97.6% Euro Efficiency 97.0% MPPT Efficiency >99% Equipment Protection Integrated DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, arc fault circuit interrupter (optional), anti-islanding protection, DC switch, insulation impedance detection, residual current detection Surge Protection Level TYPE II (DC), TYPE II (AC) Interface Communication Interface RS485/RS232/CAN Monitor Mode GPRS/Wi-Fi/Bluetooth/4G/LAN (optional) General Data Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating Permissible Ambient Humidity 0–100% Permissible Altitude 3000 m Noise (dB) ≤55 Ingress Protection (IP) Rating IP 65 Inverter Topology Non-isolated Overvoltage Category OVC II (DC), OVC III (AC) Cabinet Size (WxHxD mm) 386×660×250 (excluding connectors and brackets) Weight (kg) 35.2 Type of Cooling Intelligent Air Cooling Warranty 5 years/10 years The warranty period depends on the final installation site of the inverter; for further information, please refer to the warranty policy Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE Directive R25, G98, G99, VDE-AR-N 4105 Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Leggere Di più Meno

The inverter is suitable for residential use, maximising the rate of solar energy self-consumption and increasing energy efficiency. During the day, the photovoltaic system generates electricity which is initially supplied to the loads. Any surplus energy will then charge the battery or be fed into the grid. The inverter complies with the EN50549-1 standard, meaning it can be successfully used to become a prosumer. The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid outage. It is equipped with an RS485/CAN port for battery communication. Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts a T-type three-level topology and an enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM.

Leggere Di più Meno

The SUN-30K-SG01HP3-EU-BM3 is a three-phase hybrid inverter capable of operating with a 160–800 V high-voltage battery, ensuring system efficiency and reduced heat dissipation. With a compact design and high power density, this series supports a DC/AC ratio of 1.3, saving on equipment investment. It supports unbalanced three-phase output, expanding application scenarios. During the day, the photovoltaic system generates electricity which is initially supplied to the loads. Any surplus energy will then charge the battery or be fed into the grid. The inverter complies with the EN50549-1 standard, meaning it can be successfully used to enable prosumer applications. Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to provide efficient and reliable products. For example, Deye adopts the T-type three-level topology and the enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to conventional SPWM.

Leggere Di più Meno

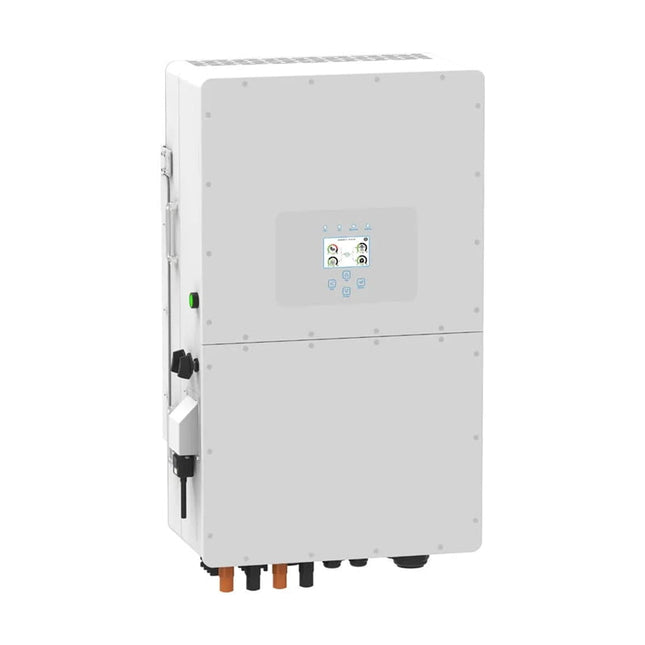

The SUN-40K-SG01HP3-EU-BM4 is a three-phase hybrid inverter capable of operating with a 160–800 V high-voltage battery, ensuring system efficiency and reduced heat dissipation. With a compact design and high power density, this series supports a DC/AC ratio of 1.3, saving on equipment investment. It supports unbalanced three-phase output, expanding application scenarios. During the day, the photovoltaic system generates electricity which is initially supplied to the loads. Any surplus energy will then charge the battery or be fed into the grid. The inverter complies with the EN50549-1 standard, meaning it can be successfully used to enable prosumer applications. Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts a T-type three-level topology and an enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM.

Leggere Di più Meno

The SUN-50K-SG01HP3-EU-BM4 is a three-phase hybrid inverter capable of operating with a 160–800 V high-voltage battery, ensuring system efficiency and reduced heat dissipation. With a compact design and high power density, this series supports a DC/AC ratio of 1.3, saving on equipment investment. It supports unbalanced three-phase output, expanding application scenarios. During the day, the photovoltaic system generates electricity which is initially supplied to the loads. Any surplus energy then charges the battery or is fed into the grid. The inverter complies with the EN50549-1 standard, meaning it can be successfully used to enable prosumer applications. Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts a T-type three-level topology and an enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM.

Leggere Di più Meno

The inverter is suitable for residential use, maximising the rate of solar energy self-consumption and increasing energy efficiency. During the day, the photovoltaic system generates electricity which is initially supplied to the loads. Any surplus energy will then charge the battery or be fed into the grid. The inverter complies with the EN50549-1 standard, meaning it can be successfully used to become a prosumer. The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid outage. It is equipped with an RS485/CAN port for battery communication. Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts a T-type three-level topology and an enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM.

Leggere Di più Meno

The inverter is suitable for residential use, maximising the rate of solar energy self-consumption and increasing energy efficiency. During the day, the photovoltaic system generates electricity which is initially supplied to the loads. Any surplus energy will then charge the battery or be fed into the grid. The inverter complies with the EN50549-1 standard, meaning it can be successfully used to become a prosumer. The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid outage. It is equipped with an RS485/CAN port for battery communication. Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts a T-type three-level topology and an enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM.

Leggere Di più Meno

The inverter is suitable for residential use, maximising the rate of solar energy self-consumption and increasing energy efficiency. During the day, the photovoltaic system generates electricity which is initially supplied to the loads. Any surplus energy will then charge the battery or be fed into the grid. The inverter complies with the EN50549-1 standard, meaning it can be successfully used to become a prosumer. The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid outage. It is equipped with an RS485/CAN port for battery communication. Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W. As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to provide efficient and reliable products. For example, Deye adopts a T-type three-level topology and an enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM. Wi-Fi monitoring included in the Deye 5kW three-phase hybrid inverter The entire range of Deye 5kW hybrid inverters includes Wi-Fi for use with the freeSolarman Smartapp available on Google Play for smartphones and computers. One of the most comprehensive apps on the market, allowing you to monitor all operating parameters of theDeye hybrid inverter, such as battery charge status, production and consumption, and daily and annual statistics, whilst also enabling remote control and configuration of the inverter. Deye: a unique hybrid inverter suitable for all systems There is no equipment on the market similar tothe DEYE 5000W hybrid inverter. It is currently the most comprehensive inverter available, capable of operating in off-grid installations and can also function as a self-consumption inverter with or without batteries. Below we detail its main features: -Off-grid operation and self-consumption: It isthe most comprehensive inverter on the market. It can operate as a 5000 W stand-alone inverter connecting up to 6500 W to solar panels and batteries, whilst also allowing charging from a generator. It can also operate connected to the grid as a self-consumption inverter without batteries or as a self-consumption inverter with batteries. -Time scheduling and surplus energy routing: This equipment allows you to schedule charging and discharging at specific times. Furthermore, its smart charging function allows you to redirect surplus energy to appliances such as boilers, air conditioning or any other load you choose. - Rated output of 5000W and peak of 10,000W: The inverter hasa rated power of up to 5000W and can handle up to 10,000W for 10 seconds in isolation. It is capable of starting large inductive loads, such as motors, without any issues. In self-consumption mode, it provides 11,000 W of continuous power with or without batteries. -Compatible with lead-acid, gel and lithium batteries: This unit allows the use of any type of battery available on the market, including lead-acid, gel and AGM, and is compatible with most lithium batteries. - Single-phase unbalanced output up to 50%: This unit allows for an unbalanced output of up to 50% of its power, meaning we can have a single-phase line requiring up to 2.5 kW of power. In systems with single-phase and three-phase consumption, the unbalanced output is of great help in ensuring a functional system. -Adjustable 120-amp charger: This unit enables high-speed charging for lead-acid or lithium batteries thanks to its dedicated 120 amps. We can adjust this value to any level if we have low-power generators. -Parallel-connectable up to 10 units: This equipment allows you to increase power by adding other units to operate in parallel with a maximum of 10 inverters. Premium internal components Deye inverters are designed to offer a long service life. Internally, they are built using electrical components and semiconductors from leading brands, as we shall see below. The German company Infineon manufactures the IGBTs and MOSFETs used in the Deye inverter’s main board in Munich. The American companies Alpha and Omega and Fairchild supply semiconductors to Deye inverters. The microprocessors are manufactured by Texas Instruments in the United States. The electrolytic capacitors used by Deye are manufactured in Japan by Nippon Chemi-con. Vac Germany produces toroids and current sensors. Other leading brands such as Toshiba, Panasonic and TDK round out the range of electronics suppliers used to manufacture the mainboards and control boards for Deye inverters. Large LCD touchscreen for monitoring and configuration The Deye hybrid inverter features a large touchscreen where you can configure all the inverter’s operating options, as well as monitor daily output, battery status and energy flows in maximum detail, and even access the battery management systems (BMS). Computers are not required as in other systems; simply via the screen and by touch, you can use and monitor all the functions of this inverter. DEYE Quick Start Guide In this video, we can see all the operating capabilities of the DEYE inverter, including time settings: Managing surplus energy via the smart charging function and connecting a grid-tied inverter The 5000W three-phase hybrid inverters have a ‘smart load’ output that can be configured to redirect surplus energy to consumption to make 100% use of solar production. For example, with the default configuration, the smart load output is powered and supplies consumption when the battery is between 95 and 100% and solar production is greater than 500W. This is fully configurable; we can see a working example in this video: Furthermore, the same port used for smart charging can be selected in the ‘micro inverter input’ function, where we can connect a microinverter or a grid-tied inverter of up to 8000W to increase the charging capacity beyond the 6500W available from the solar panels. The “peak shaving” function for supplementing grid power The 5000W Deye three-phase hybrid inverters have a function whereby they can supplement the power of the grid or a generator using batteries or photovoltaic panels. If we have 2.2 kW of installed grid power, for example, we can select a value of 2000 W for peak shaving, and when demand exceeds 2000 W, the inverter will draw the remainder from the batteries or panels so as not to exceed the installed power. This function is very useful in locations where there are old transformers and the electricity company cannot supply the necessary power. TheDeye 5kW three-phasehybrid invertercomes with a 5-year warranty, and its build quality is on a par with the best equipment on the market. It has been designed and manufactured using high-grade electronics, with components oversized to ensure a high degree of reliability and efficiency. Intelligent cooling and IP65 protection rating Deye three-phase hybrid inverters have IP65 protection, and their fan-cooled radiator ventilation system is activated only when necessary. The equipment allows its rated power to be used without derating up to 45 degrees. Many inverters on the market reduce their power output from 25 degrees, but Deye is capable of delivering 5000W even in hot climates, operating at high ambient temperatures. 10-year warranty and efficiency of up to 99.9% TheDeye 5kW three-phase hybrid invertercomes with a 5-year warranty and its build quality is on a par with the best equipment on the market. It has been designed and manufactured using high-grade electronics, with its components oversized to provide a high degree of reliability and efficiency, achieving 99.9% in the MPPT controllers and 97% in the inverter. Built-in protections and DC disconnect switch The Deye Sun 5kW inverter features internal protections for safe operation, as well as a ‘DC switch’ to disconnect the PV array from the load. Among the protections included are: - DC Type II and AC Type II (surge) protection included - Anti-islanding protection included - Short-circuit protection included - Solar panel insulation fault detection included - Protection against polarity reversal in strings included - DC load shedding switch for the photovoltaic array included
