UNI-T Bench Multimeters

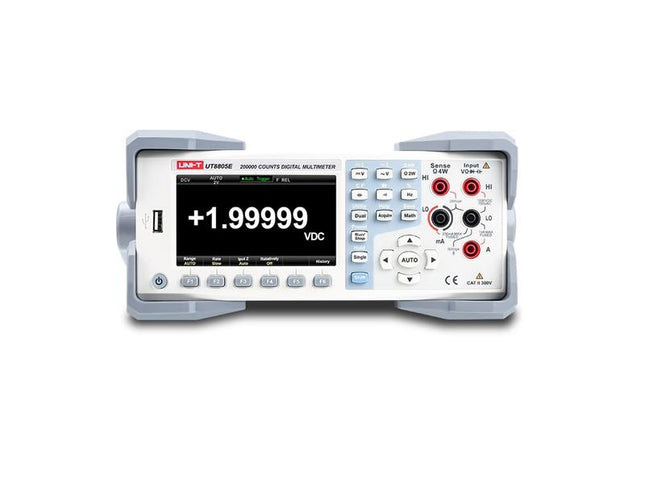

This product comes with a 3-year warranty. The UT8805E is a desktop digital multimeter with a maximum display range of 199,999, featuring optional automatic or manual measurement, a colour display and a true RMS measurement function. Its circuit design utilises large-scale integrated (LSI) analogue-to-digital (A/D) converters, a microprocessor, multifunctional measurement and highly stable thin-film resistor manufacturing technology, making it a digital multimeter with excellent performance. In addition, it features data storage, maximum/minimum/average measurement, comparison measurement, relative value measurement, peak value detection, trend graphing, and the ability to record and read up to 10,000 data records. Display of measurement results using bar graphs of readings or trend graphs. The display allows for dual data display; for example, when measuring AC voltages or currents, it also displays the frequency; when measuring temperature, it also displays the thermocouple resistance, etc. It is a state-of-the-art electrical measuring instrument, suitable for use in electronics, communications, manufacturing, national defence, power generation, chemistry and other industries. This device strictly complies with safety standards IEC61010-1, EN61010-2-030, pollution degree II, overvoltage CAT I 1000V, CAT II 300V, double insulated, waterproof and dustproof with IP65 protection. It is an indispensable experimental instrument for various colleges. Product specifications: - display type: 4.3" diagonal TFT-LCD with a resolution of 480 x 272 px - number of display locations: 200,000 - measurement speed: 2nd; readings/measurement: 0.5000 10 readings/s; 5000 readings/s) - dual display: yes, simultaneous display of two quantities - DC voltage measurement: ranges from 200mV to 1000V - DC current measurement: ranges from 200μA to 10A - AC voltage measurement: 200 mV to 200 V AC - ranges - True-RMS AC current measurement: ranges from 2mA to 10A - Resistance measurement: ranges from 200Ω to 100MΩ (optional 2- and 4-wire resistance measurement) - Capacitance measurement: ranges from 2nF to 2000μF, frequency range: 1MH/2000μF AC - Circuit continuity and diode test: yes - Temperature measurement: with built-in thermocouple with cold-junction compensation - External thermocouple temperature measurement: yes, preset conversions for ITS-90, Pt100, and K, N, R, J, T, R, J, R, J thermocouples - various mathematical operations: maximum, minimum, average, standard deviation, pass/fail, dBm, dB, relative measurement, histogram, trend graph, bar chart - supports USB, GPIB, RS-232C and LAN interfaces, USB-TMC, IEEE 488.1, compatible with the IEEE 488.1 command language and SCPI standard on VXI1/2 SCPI-test set for the main multimeter - recording and storage of historical data - option to save data and configure settings to a USB drive - 1 GB NAND FLASH storage, high-capacity memory system and test data - menu in English and Chinese and online help system - software for the host PC - wide range of supply voltage parameters >- - measured voltage: 1000 V (DC) / 750 V (AC) - 10 A input terminal protection: (CE) F1, internal slow-blow fuse 10 A / 250 V - μA, mA input terminal protection: (CE) F2, 250mA/250V fast-acting fuse, 4-digit icon display FT. display; maximum value 200,000, 480 x 272 pixels - range selection: automatic or manual - polarity display: automatic - mathematical operations: Pass/Fail, Relative, min/max/average, standard deviation, dBm, dB, Hold, histogram, trend graph, bar graph/measurement ranges: - 1. DC voltage measurement (range / input impedance / accuracy % (90 days) / (1 year)): 200,000 mV / 10 MΩ or >10 GΩ / 0.008+0.004 / 0.01+0.004 / 0.01+0.004 / 10 Ω 0.004 / 10 Ω 0.008+0.003 / 0.01+0.003 20.0000 V / 10 MΩ or >10 GΩ / 0.008+0.004 / 0.01+0.004 200.000 V / 10 MΩ / 0.0003 + 0.003 Ω / 0.0003 1000.00 V / 10 MΩ / 0.012+0.003 / 0.015+0.003 - 2. DC current measurement (range / input voltage drop / accuracy % (90 days) / (1 year)): 200.00, 0.50 μA / / 0.055+0.005 2.00000 mA / <0.3 V / 0.050+0.005 / 0.055+0.005 20.0000 mA / <30 mV / 0.070+0.020 / 0.020 / 0.020 / 0.020 0.3 V / 0.060+0.008 / 0.070+0.008 2.00000 A / <0.1 V / 0.150+0.020 / 0.170+0.020 10.0000 A / <0.3 V /+ / 0.0200 0.250+0.010 - 3. Resistance measurement (ranges / max. test current / accuracy % (90 days) / (1 year)): 200,000 Ω / 1mA / 0.012+0.005 / 0.030+0.005 / 0.030+0.0200 Ω / 0.000 Ω / 0.000 Ω 0.012+0.003 / 0.020+0.003 20.0000 kΩ / 100μA / 0.012+0.003 / 0.020+0.003 200,000 kΩ / 10 μA / 0.002+0.002+0.0020.003 2.00000 MΩ / 1 μA / 0.020+0.004 / 0.040+0.004 10.0000 MΩ / 500 nA / 0.100 + 0.004 / 0.250 + 0.004 / 0.250 + 0.004 10,000 MΩ / 500 nA / 0.100+0.004 / 0.250+0.004 100 MΩ / 000 000 ▀ 0.004 10 MΩ / 0.800+0.004 / 1.75+0.004 - 4. True RMS AC voltage measurement (ranges / frequency range / accuracy % (90 days) / (1 year)): 200,000 mV / 20 Hz / 20 Hz + 0.1–0.5 Hz / ¾ 1.5+0.1 45 Hz to 20 kHz / 0.19+0.05 / 0.2+0.05 20 kHz to 50 kHz / 1.0 ± 0.05 / 1.0 ± 0.05 50 kHz /+0.050 kHz /+0.10 kHz 3.0+0.05 2.00000 V / 20 Hz to 45 Hz / 1.5+0.10 / 1.5+0.10 45 Hz to 20 kHz / 0.19+0.05 / 0.2+0.0,20 kHz / 0.20 kHz / 0.10 1.0+0.05 / 1.0+0.05 50 kHz to 100 kHz / 3.0+0.05 / 3.0+0.05 20.0000 V / 20 Hz to 45 Hz / 1.5+0.10+6 / 10.5+0.05 20 kHz / 0.19+0.05 / 0.2+0.05 20 kHz to 50 kHz / 1.0+0.05 / 1.0+0.05 50 kHz to 100 kHz / 3.0+0.05 / 0.05,><0.02, V / 20 Hz to 45 Hz / 1.5+0.10 / 1.5+0.10 45 Hz to 20 kHz / 0.19+0.05 / 0.2+0.05 20 kHz to 50 kHz / 1.0,+0.0,0.0, 0.05 kHz to 100 kHz / 3.0+0.05 / 3.0+0.05 750,000 V / 20 Hz to 45 Hz / 1.5+0.10 / 1.5+0.10 45 Hz to 20.5190 / 20.190 kHz 20 kHz to 50 kHz / 1.0+0.05 / 1.0+0.05 50 kHz to 100 kHz / 3.0+0.05 / 3.0+0.05 - 5. True RMS / AC frequency range / measurement range 100 kHz / 10 days / current (): 2.00000 mA / 20 Hz to 45 Hz / 1.5+0.10 / 1.5+0.10 45 Hz to 2 kHz / 0.5+0.10 / 0.5+0.10 2 kHz / 2 kHz + 0.10, 5 kHz / 2 kHz 2.5+0.20 200.000 mA / 20 Hz to 45 Hz / 1.5+0.10 / 1.5+0.10 45Hz to 2kHz / 0.5+0.10 / 0.5+0.10 kHz / 2kHz> / 0.5+0.10kHz> 2.5+0.20 / 2.5+0.20 200,000 mA / 20 Hz to 45 Hz / 1.5+0.10 / 1.5+0.10 45 Hz to 2 kHz / 0.3+0.10 / 0.10 / 1 Hz 2.00000 A / 20 Hz to 45 Hz / 1.5+0.20 / 1.5+0.20 45 Hz to 2 kHz / 0.5 ± 0.5 2 kHz to 10 kHz / 2.5 ± 0.20 / 2.5 ± 0.20 10.0000 A / 20 Hz to 45 Hz / 1.5+0.15 / 1.5+0.15 45 Hz to 2 kHz / +0.5, 5, 5 / 1.5 2 kHz to 10 kHz / 2.5+0.20 / 2.5+0.20 - 6. Capacitance measurement (ranges / max. test current / accuracy % (90 days) / (1 year)): 2,000 nF / 0.5 μA + 1.0 / 0.5 μA + 1.02 20.00 nF / 1 μA / 1+0.5 / 1+0.5 200.0 nF / 10 μA / 1+0.5 / 1+0.5 2,000 μF / 100 μA / 1+0.5 / 1+0.5 /+0.5 /+0.5 μF / 0.5 / 0.5 μF 1+0.5 200.0 μF / 1 mA / 1+0.5 / 1+0.5 2,000 mF / 1 mA / 2+0.5 / 2+0.5 - 7. Temperature measurement (thermocouple type / cell temperature range / accuracy): an) α=0.00385 / -200°C to 660°C / 0.16°C B / 0°C to 1820°C / 0.76 °C E / -270°C to 1000°C / 0.5 °C J /°C / -200°C / -200°C K / -270°C to 1370°C / 0.5 °C N / -270°C to 1300°C / 0.5 °C R / -50°C to 1760°C / 0.5 °C S / -50°C to /17.6°C -270°C to 400°C / 0.5°C - 8. Frequency and duty cycle measurement (ranges / accuracy % (90 days) / (1 year)): 20 Hz to 2 kHz / 0.01 + 0.003 / 0.01 + 0.02 kHz / 0.02 kHz / 0.02 kHz / 0.02 kHz / 0.01 + 0.003 / 0.01 + 0.003 20 kHz to 200 kHz / 0.01 + 0.003 / 0.01 + 0.003 200 kHz to 1 MHz / 0.01 + 0.001 AC / 0.001 + 0.005 AC in the voltage range 200 mV to 750 V. - 9. Circuit continuity and diode testing A constant current source of 1 mA ± 5% is used to measure the resistance or voltage drop across the diode. The open-circuit voltage is < 8V. The circuit continuity measurement threshold is adjustable. Buzzer indication option buzzer. General characteristics and mechanical properties: - power supply: AC 90V–110V, 45–440Hz; AC 110V–132V, 45–440Hz; AC 200V–240V, 45–66Hz; AC 216V–264V, 45–66Hz - power consumption: max. 20W - operating environment: 0°C–28°C <90%; 28°C–40°C <75%; 40°C–55°C <50% (non-condensing) - Altitude: ≤2000 m - Dimensions: 260 mm x 116 mm x 332 mm - Weight: 4.4 kg - Colour: off-white and grey > Individual multimeter packaging contents: > UT8805E: 1 pc - three-core power cable: 1 pc - Test leads: 1 pair - USB connection cable: 1 pc - RS232 connection cable: 1 pc - UT8805E quick start guide: 1 pc - PC warranty card: UT8805 PC:-1805 PC:-1805 set MANUFACTURER: UNI-TREND https://instruments.uni-trend.com/EU-EN/multimeters/ut8000e.html

Leggere Di più Meno

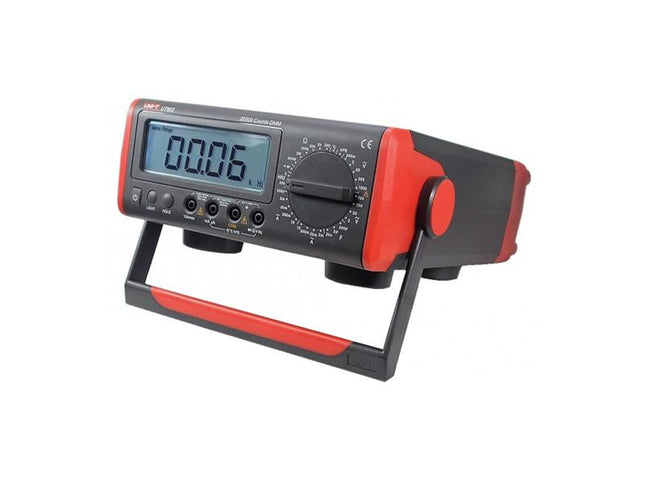

This product comes with a 3-year warranty. The UT802 bench multimeter is a multifunctional electronic measuring instrument. It meets the requirements for measuring electrical parameters during the maintenance of electronic devices, offering high precision and ease of use. Its advantages include numerous functions and the ability to operate even outside the 230V mains supply range, as it can also run on batteries. The device features a backlit LCD display with a display range of ±19999. The device is manufactured in accordance with IEC 61010-1 standards and complies with CAT II 1000V. Product specifications: - large backlit LCD display, measuring 108 x 34.5 mm, with a maximum display range of 19999 - with a single-range circular switching/measuring function - circular switching/measurement AC/DC voltage and current, resistance, capacitance, frequency and temperature - Measurement of semiconductor junctions: diodes and transistors - measurement of transistor hFE parameters - circuit continuity testing with buzzer - Data Hold function - Power supply via AC/20m3V20 adapter or 1.5 V DC batteries; R14 - storage space for the adapter Technical specifications: - DC voltage measurement in the range: 200 mV to 1000 V with an accuracy of ±(0.1% + 3) - AC voltage measurement in the ranges: 5 to 20 V up to 70 V ±(0.5%+20) - DC current measurement in the ranges: 200 µA to 10 A with an accuracy of ±(0.5% + 20) - DC current measurement in the range: 2 mA to 10 A with an accuracy of ±(0.8% + 40) Resistance measurement in the range 20Ω to 0Ω: 200MΩ with an accuracy of ±(0.5%+10) - Capacitance measurement in the range: 20nF to 200µF with an accuracy of ±(4%+10) - Frequency measurement in the ranges: 2kHz and 200kHz with ±(0.1) – 200kHz with a measurement accuracy in the temperature range of ±(0.1) – 40°C to 1000°C with an accuracy of ±(1.2%+25) - Input impedance for DC ranges: approx. 10 MΩ - automatic polarity display: yes - low battery warning: yes - included in delivery is a type K temperature probe for temperatures up to +230°C - operating environment: 0°C to 40°C - Storage temperature: -10°C to 50°C - Relative humidity: 75% in the temperature range from 0°C to 30°C; max 50% in the temperature range from 30°C to 40°C - dimensions: 300 x 245 x 105 mm - weight without accessories: 1.5 kg - weight with accessories: 1.65 kg - product colour: red and green Device contents: 2: 2 1 pc - 230V AC/9V DC/200mA adapter: 1 pc - International adapter for power supply: 1 pc - 1.5V battery, R14: 6 pcs - Type K contact temperature probe: 1 pc - measurement cables: 1 pair user manual - 1 pair > pcs Wholesale package contents: - number of units in a standard box: 4 pcs - standard carton dimensions: 680 x 365 x 320 mm - weight of standard box: 11.7 kg TREND -

Leggere Di più Meno

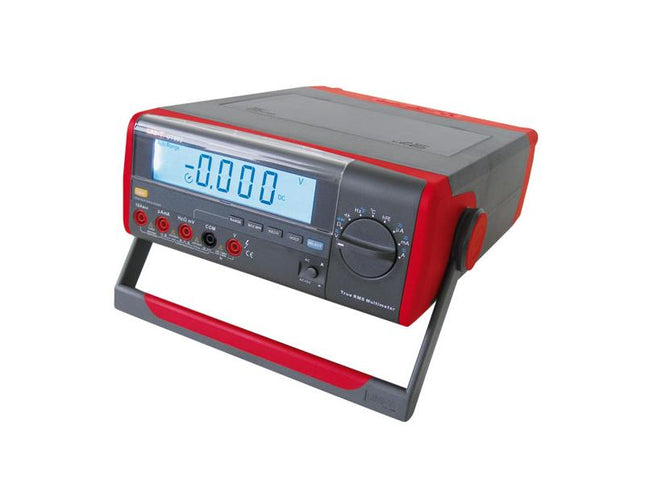

UNI-T UT803 Digital Bench Multimeter This product comes with a 3-year warranty. SPECIFICATIONS: DC voltage: 600mV / 6V / 60V / 600V / 1000V - Best accuracy: +/- (0.3% + 2V / 6V AC) 60V / 600V / 1000V - best accuracy: +/- (0.6% + 5) DC current: 600µA / 6000µA / 60mA / 600mA / 10A - best accuracy: +/- (0.5% + 0 AC) 6000µA / 60mA / 600mA / 10A - best accuracy: +/- (1%+5) Resistance: 600 ohms / 6 kOhms / 60 kOhms / 600 kOhms / 6 MOhms / 60 MOhms best accuracy: +/- (0.5%+2) Capacitance: 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF - best accuracy: +/- (2%+5) Temperature: -40 / +1000°F / 1000°C best accuracy -420°F +1:-/-420°C +/- 1%+3 (°C), +/- 1.5%+5 (°F) Frequency: 6kHz / 60kHz / 600kHz / 6MHz / 60MHz - best accuracy: +/- (0.1%+3) Functions: SPECIAL RANGE FUNCTION AC+DC voltage/current measurement Frequency (AC voltage) 100kHz True RMS Diode Continuity buzzer Transistor Max/Min mode Data hold RS232C USB icon display F/USB mode Low battery display Input impedance for DC voltage: 10 MΩ, for DC 600 mV: 3 GΩ Display backlight Max. display 5999 (28 x 128 mm) GENERAL SPECIFICATIONS: Power: 220V AC / 50Hz or 6x 1.5V batteries (R20) Product dimensions: 105 x 240 x 310 mm Product weight: 2.4 kg /en/

Leggere Di più Meno

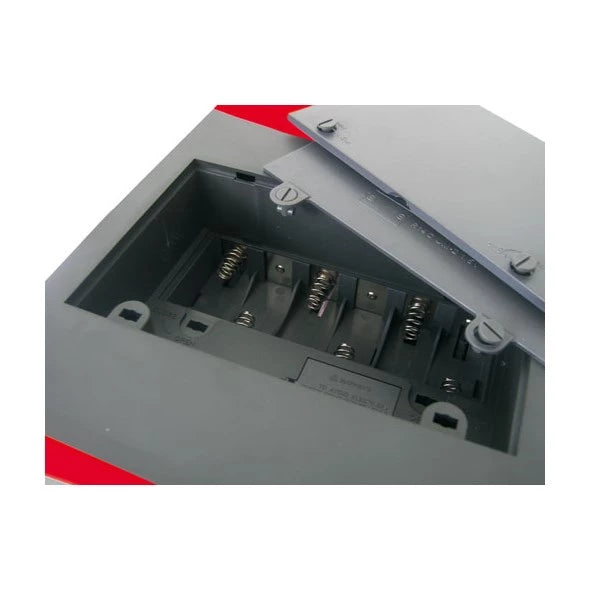

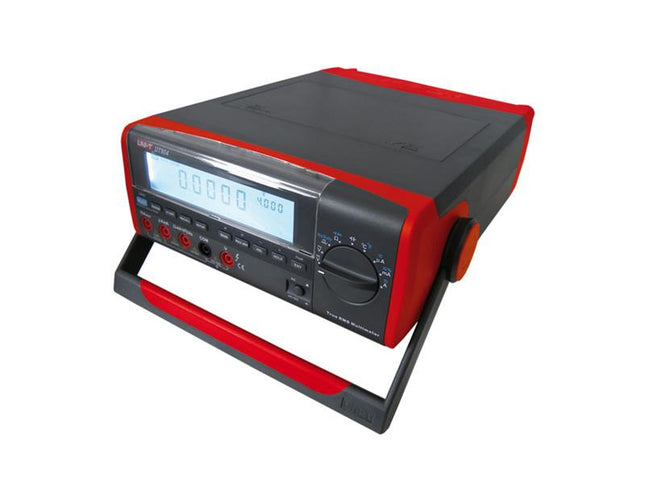

UNI-T UT804 Digital Bench Multimeter This product comes with a 3-year warranty. SPECIFICATIONS: DC voltage: 400mV / 4V / 40V / 400V / 1000V - Best accuracy: +/- (0.025% of V AC) V+5 400V / 1000V - Best accuracy: +/- (0.4% + 30) DC current: 400 µA / 4000 µA / 40 mA / 400 mA / 10 A - best accuracy: +/- (0.1%+15 µA / 4000µA) / 0µA / 4000µA 40mA / 400mA / 10A - best accuracy: +/- (0.7%+15) AC bandwidth: 100 kHz Resistance: 400 ohms / 4 kohms / 40 kohms / 400 kohms / 4 Mohms / 4 Mohms best accuracy: +-40 Mohms / (0.3%+40) Capacitance: 40 nF / 400 nF / 4 µF / 40 µF / 400 µF / 4 mF / 40 mF - best accuracy: +/- (1%+20) Temperature: from -40 to +1004°C, best from -40 to +1004°C Accuracy: +/- 1%+30 (°C), +/- 1.5%+50 (°F) Frequency: 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz / 400MHz -best accuracy (0.01%+8) 4 ~ 20mA Loop: 0 - 100% - best accuracy: +/- (1%+40) Duty cycle: 100% SPECIAL FUNCTIONS: 10A fuses Automatic/manual setting Current Current: AC/DC measurement Data logging Data recall Diode Continuity buzzer True RMS Peak hold MAX / MIN mode REL mode Data Hold RS232C FulSlep icon display FulSlep Mode Low battery display Input impedance: 10Mohm, for 400mV - 4Gohm Dual display backlight Max. display 39999 Analogue bar graph GENERAL FEATURES: Power supply: 220V AC / 50Hz or 1.5V battery (6x R14) Product dimensions: 100 x 245 x 300 mm Product weight: 2.2 kg /en/

Leggere Di più Meno

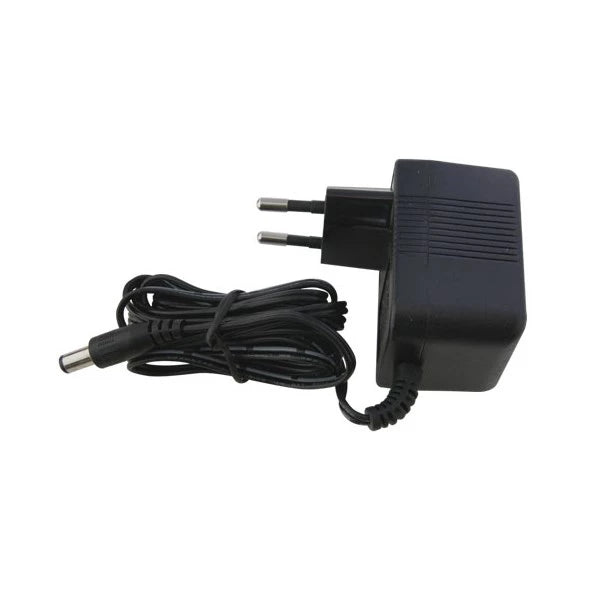

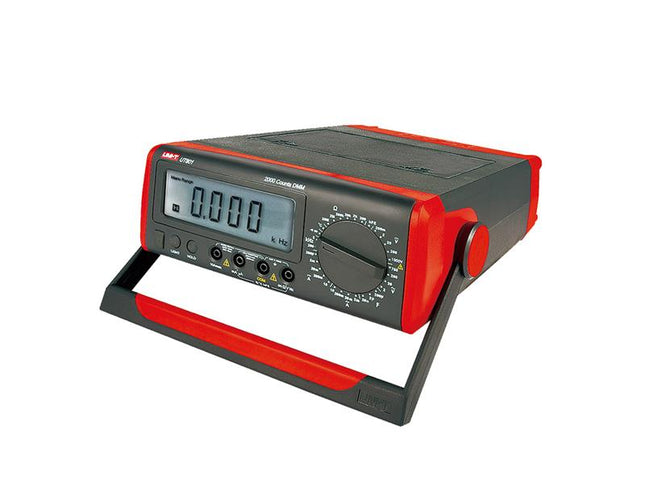

UNI-T UT801 Digital Bench Multimeter This product comes with a 3-year warranty. SPECIFICATIONS: DC voltage: 200mV/2V/20V/200V/1000V +/- (0.5%+2) AC voltage: 2V/20V +/-/0V/-/0V (0.8%+3) DC currents: 200μA/2mA/20mA/200mA/10A +/- (0.8%+2) AC currents: 2mA/20mA/200mA/10A +/- (1.0%+3) Resistance: 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ/20 MΩ ± (0.8%+3) Capacitance: 20nF/2uF/200uF +/- (4%+3) Frequency: 2kHz/+3%: temperature SPECIAL FUNCTIONS: Transistor Off mode Diode Continuity buzzer Display backlight REL Sleep mode Max/Min Display for maximum/minimum battery voltage Measurement: >10 MW Data hold Max. Display: 1999 GENERAL FEATURES: Power supply: AC220V/50Hz or 6 x 1.5V batteries (R14) LCD size: 108 x 35mm Product colour: red and grey Net product dimensions: Product weight: 1000g 245 x 105 mm Standard accessories: test lead, AC220V power cable, English manual, contact probe, temperature probe, multi-function socket /en/

Leggere Di più Meno

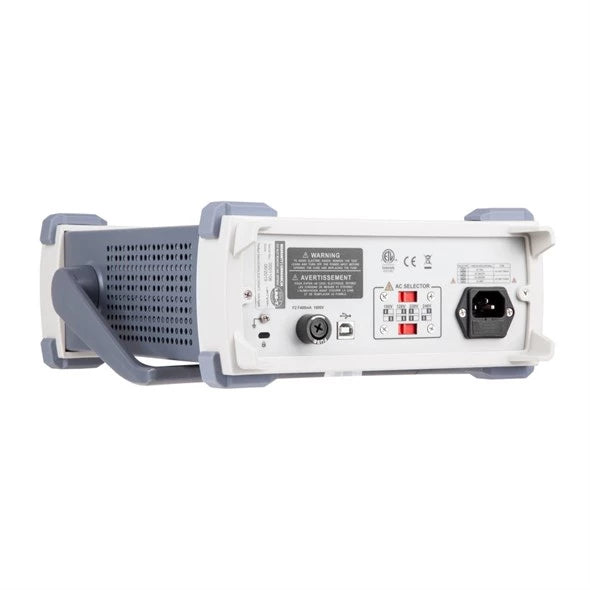

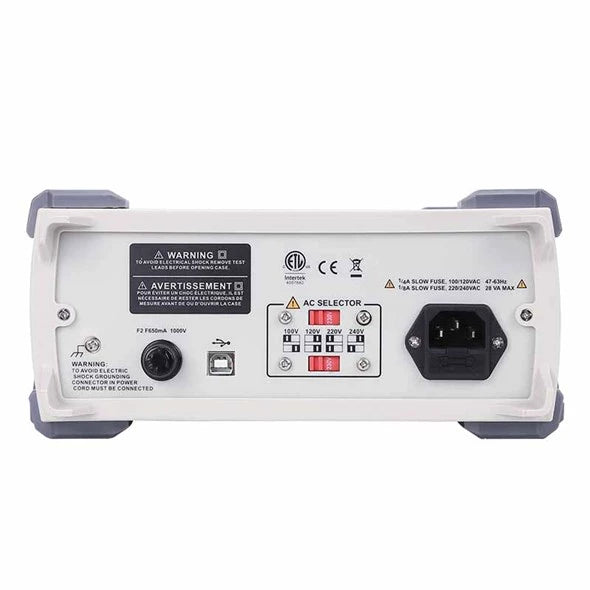

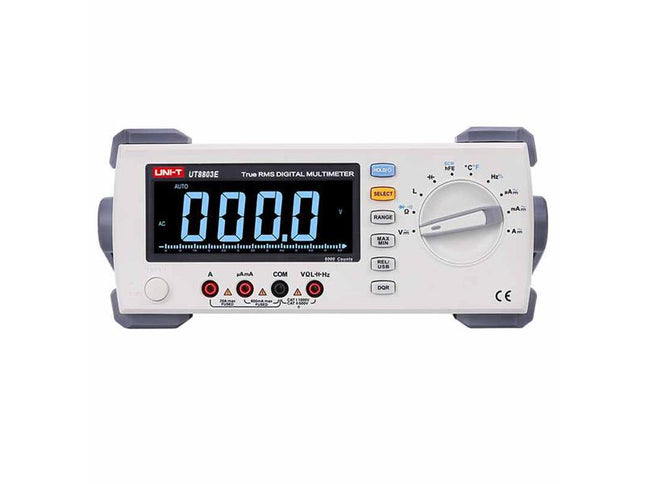

UNI-T UT8803E Digital Bench Multimeter This product comes with a 3-year warranty. UT8802E Digital Bench Multimeter: True RMS Diode/transistor SCR Thyristor Test LCD measurement interface EBBTN EBBTN Screen inductance Data hold MAX/MIN Continuity buzzer Specifications Model UT8803E: DC voltage (V): 1000V AC voltage (V): 750V DC current (A): 20A Resistance 20A (Ω): 60MΩ Capacitance (F): 6mF Frequency (Hz): 600Hz–20MHz Duty cycle (%): 5%–95% Inductance (H): 100H Temperature (°C/°F): -40.0 ℃ -40℉~1832℉ Display range: 6000 Interface: USB device Range: Auto True RMS/diode: √ Frequency response (Hz): Up to 100kHz 9V SCR test, non-directional and bidirectional measurement Buzzer/data hold: √ MAX/MIN: √ USB interface/LCD backlight: √ Input impedance for DCV: 600mV range: approx. 3GΩ; all other ranges: approx. 10MΩ AC+DC measurement: √ General features: Power: 100V/120V/220V/240V ±10%, 47Hz–63Hz Net weight of LCD: EBTN. Product dimensions: 265mm x 110mm x 320mm Standard accessories: USB interface cable, power cable, single-ended test lead with alligator clips, standard test leads, PC software CD, spot contact temperature probe Standard individual packaging: cardboard box Standard quantity per box: 8 pcs. 330 mm x 320 mm Standard gross weight per box: 6.18 kg

Leggere Di più Meno

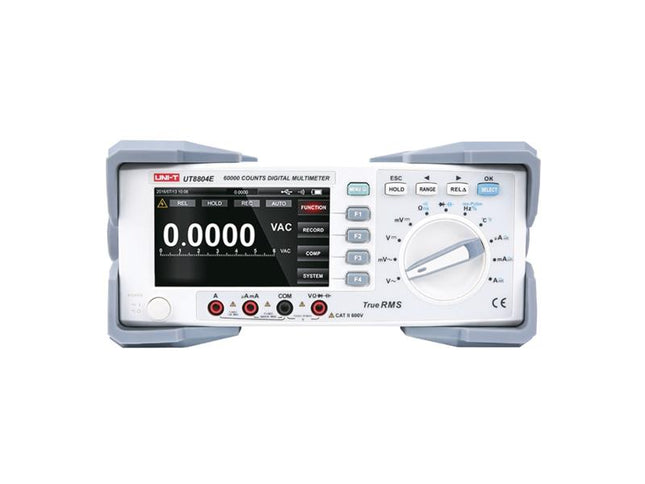

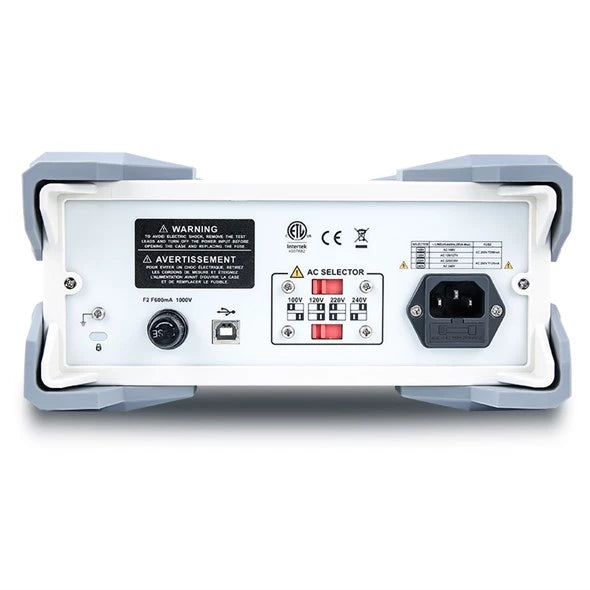

UNI-T UT8804E Digital Bench Multimeter This product comes with a 3-year warranty. The UT8804E is a digital bench multimeter with a maximum display range of 60,000, featuring optional automatic or manual range selection, a colour display and a true RMS measurement function. Its circuit design utilises large-scale integrated (LSI) analogue-to-digital (A/D) converters, a microprocessor, multifunctional measurement and highly stable thin-film resistor technology, making it a digital multimeter with outstanding performance. The meter can be used to measure AC/DC voltage, AC/DC current, resistance, conductivity, diodes, line continuity, capacitance, temperature, frequency, pulse width, etc. In addition, it features data storage, measurement with comparison function, relative value measurement, peak value detection, trend graph capture and the ability to record/read up to 20,000 data records. The integrated 4.3-inch colour display provides a multi-level, versatile and clear display of measurement results with meter readings and trend graphs. Technical specifications: - maximum voltage between input terminal and COM terminal: 1000 V (DC / AC) - input terminal protection: 10A, 10A, 10 (CE) F1, 10 (CE) fuse Ø 10x38 mm - Input terminal protection μA, mA: (CE) F2, F600mA / 1000 V, fuse Ø 6x32 mm - 4.3" colour TFT display: full display with icons; maximum value 60000 - refresh rate: automatic interval: - 3 times/sec. manual - Polarity display: automatic - Overload display: OL - 1. AC voltage measurement (Range / Resolution / Accuracy): 60mV / 0.001mV / 45 ~ 1kHz ±(0.6% + 1kHz) / 0.6% + 1kHz ±(1.2%+60) // 10k ~ 20kHz ±(3%+60) // 20k ~ 100kHz ±(4%+60) 600 mV / 0.01 mV / 45 ~ 1 kHz ±(0.3% + 30) //+30 //1.0 kHz ~/(0.01 mV) 10 kHz ~ 20 kHz ±(3% + 40) //20 kHz ~ 100 kHz ±(4% + 40) 6 V / 0.0001 V / 45 ~ 1 kHz ±(0.3% + 30) // 1 kHz ~ 10 kHz ±(1.2% + 1 kHz) // 2% + 40 kHz ±(3% + 40) // 20 kHz ~ 100 kHz ±(4% + 40) 60V / 0.001V / 45 ~ 1kHz ±(0.3%+30) // 1k ~ 10kHz ±(1.2%+40) // 2%+40) // 10k% + 0 // 10kHz 20k ~ 100kHz ±(4%+40) 600V / 0.01V / 45 ~ 1kHz ±(0.4%+30) // 1k ~ 10kHz ±(1.2%+40) // 10k ~ 20kHz ~ 20kHz ±(3) reference for 20kHz + 0kHz ±/z only 1000V / 0.1V / 45 ~ 1kHz ±(0.6%+30) // 1k ~ 5kHz ± (3%+40) // 5k ~ 10kHz ± (6%+40) // 10k ~ 100kHz only for reference measurement - - measurement -> Resolution / Accuracy ): 60 mV / 0.001 mV / ±(0.025 %+20) 600mV / 0.01mV / ±(0.025 %+5) 6V / 0.001V / ±(0.025 %+20) 600mV / 0.01mV / ±(0.025 %+5) 6 V / 0.001 V / ±(0.001 V / ±(0.025 %/+50) / 0.025 %. ±(0.025 %+5) 600V / 0.01V / ±(0.025% + 5) 1000V / 0.1V / ±(0.003%+5) - Input impedance: approx. 10MΩ - The overload function must be used to compensate for overload protection: V - 3. AC + DC voltage measurement (Range / Resolution / Accuracy): 60mV / 0.001mV / 50 ~ 1kHz ±(1%+80) // 1k ~ 10kHz + 4kHz ±/3kHz ± 1kHz ± 3% ±(6%+40) 600 mV / 0.01 mV / 50 ~ 1 kHz ±(1%+80) // 1 kHz ~ 10 kHz ±(3%+40) // 10 kHz ~ 35 kHz ±(6%+40) 50V ~ 1V / 0kHz ±(0.3%+30) // 1k ~ 10kHz ±(3%+40) // 10k ~ 35kHz ±(6%+40) 60V / 0.001V / 50 ~ 1kHz ±(1%+80) // 1k+1k ~ 0.001V // 1k + 1kHz ~ ± 0.001V // 35kHz ±(6%+40) 600V / 0.01V / 50 ~ 1kHz ±(1%+80) // 1k ~ 10kHz for reference only // 10k ~ 35kHz for reference only 1000V / 0.1V / ±1V / 1k ~ 10kHz for reference only // 10k ~ 35kHz for reference only - 4. AC current measurement (Range / Resolution / Accuracy): 600μA / 0.01μA / 45 ~ 1kHz ± 1kHz ± 0 ~ 0 600μA / 1kHz ± 0 ~ 0. ±(1.2%+40) 6000μA / 0.1μA / 45 ~ 1kHz ±(0.6%+20) // 1k ~ 10kHz ±(1.2%+40) 60 mA / 0.001 mA / 45 ~ 45 ~ 1.0 kHz // ± 10 kHz 10 kHz ±(1.2%+40) 600 mA / 0.01 mA / 45 ~ 1 kHz ±(0.6%+20) // 1 kHz ~ 10 kHz ±(1.2%+40) 20A / 0.001A / 0.001A ~+20k) (1k ~/Hz) 10kHz ±(3%+40 - 5. DC current measurement (Range / Resolution / Accuracy): 600μA / 0.01μA / ±(0.08%+20) 6000μA / 0.1μA / ±0.1μA / 0.1μA/0.01μA / ±(0.08%+20) 0.001mA / ±(0.08%+20) 600mA / 0.01mA / ±(0.15%+10) 20 A / 0.001 A / ±(0.5%+10) - 6. Measurement of AC + AC/DC current resolution: Current resolution accuracy / AC/DC. 600μA / 0.01μA / 50 ~ 1kHz ±(0.8%+40) // 1k ~ 10kHz ±(2.0%+40) 6000μA / 0.1μA / 50 ~ 1kHz ±(0.8% + 2kHz) /(0.8% + 2kHz) ±(2.0%+40) 60 mA / 0.001 mA / 50 ~ 1 kHz ±(0.8% + 40) // 1 kHz ~ 10 kHz ±(2.0% + 40) 600 mA / 0.01 mA / 50% ~ 0.8% / 1.0 kHz // 10 kHz ±(2.0% + 40) 20A / 0.001A / 45 ~ 1kHz ±(1.2%+20) // 1k ~ 10kHz ± (3%+40) - 7. Resistance measurement (Range / ) / 6. Accuracy / 0 / Ω / 0. 0.01Ω / in REL mode: ±(0.05%+10) 6kΩ / 0.0001kΩ / ±(0.05%+2) 60kΩ / 0.001kΩ / ±(0.05%+2) 600kΩ / 0.001kΩ / 0. ±(0.05%+2) 6 MΩ / 0.0001 MΩ / ±(0.3% + 10) 60MΩ / 0.001MΩ / ±(2%+10) - Overload protection: 1000 V - humidity setting should be <50%/8/-001MΩ/ Conductivity measurements (Range / Resolution / Accuracy): 60 nS / 0.01 nS / ± (2%+10) - Overload protection: 1000 V - Humidity should be <50% - 9. Capacitance measurements (Range / Resolution / F) 0.001 nF / ±(3%+10) 60 nF / 0.01 nF / ±(2.5%+5) 600 nF/0.1 nF/±(2%+5) 6μF/0.001μF/±(2%+5) 600 nF/0.1 nF/±(2%+5) 6 μF/0.001 μF/±(2%+5). ±(2%+5) 600 μF / 0.1 μF / ±(2%+5) 6mF / 1μF / ±(5%+5) 60mF / 10μF / Not specified - Overload protection: 1000 V - Maximum displayed value: -/> -40°C – 40°C / 1°C / ±(2.0%+30) 40°C – 400°C / 1°C / ±(1.0%+30) 100°C / 100°C / 100°C ±2.5% -40°F – 104°F / 1°F / ±(2.5%+50) 104°F – 752°F / 1°F / ±(1.5%+50) 752°F – 1832°F / 1°F / Frequency measurement (Range / Resolution / Accuracy): 60Hz / 0.001Hz / ±(0.02%+8) 600Hz / 0.01Hz / ±(0.01%+5) 6kHz / 0.000%+0.001Hz / 0.001Hz / ±(0.01%+5) 600kHz / 0.01Hz / ±(0.01%+5) 6 MHz / 0.0001 MHz / ±(0.01% + 5) 60 MHz / 0.001% + 5) 6 MHz / 0.0001 MHz / ±(0.01% + 5) 60 MHz / 0.001% + 5) Overload protection: 0.001%/- 0.1000 V - input amplitude requirements: 10 Hz – 30 MHz: 600 mV ≤ a ≤ 30 V rm > 30 MHz: unspecified - 12. Duty cycle measurement (Range / Resolution / Accuracy % : ) (10 Hz–2 kHz) / 0.01 / ±(1.2% + 30) - Overload protection: 1000 V - rise time: <1 μs, signal centred at the trigger level. - 13. Pulse width measurement (Range / Resolution />250) 0.001 ms ~ 0.01 ms / ±(1.2%+30) - Overvoltage protection: 1000 V - Rise time: <1 μs, signal centred at the trigger level - 10 Hz - 200 kHz: Pulse width > 2 μs. The signal width is determined by the signal frequency - frequency - 14. Line continuity test: Resolution 0.01Ω Note: The test voltage is approximately 3V Short-circuit warning: If the resistance is less than 10Ω, the buzzer will sound continuously. Mute. Open circuit warning: If the resistance is > 50Ω, the buzzer will sound continuously. If the resistance is <10Ω, the buzzer will be silent. - Overvoltage protection: 1000 V - 15. Diode test: Resolution: transition is approximately ≤3V. When the buzzer is activated, a short beep indicates a normal PN junction; a continuous beep indicates a short circuit in the PN junction The typical voltage of the silicon PN junction is approximately V-0 5. Operating temperature: 0 °C – 40 °C (32 °F – 104 °F) - Storage temperature: -10 °C – 50 °C (14 °F – 122 °F) - Relative humidity: ≤75% at 0 °C – 30 °C, ≤50% at 30 °C - 0.1x (specified accuracy) / °C (<18 °C or ≥28 °C) - Electromagnetic compatibility: RF = 1 V/m, total accuracy = specified accuracy + 5% of the range RF > 1 V/m, no specified calculation - Power supply: AC 120V / 200V, 47–63 Hz - Fuse used for supply voltage from 220 to 240V AC: T125mA / 250V - Dimensions: 320 mm x 265 mm x 110 mm - Safety standard: IEC 61010: CAT II 600V Package contents: - User manual, English, Czech: 1 pc - test leads: 1 set - alligator clips: 1 set - Type K temperature probe: 2 pcs - power cable (AC 220V): 1 pc - application on CD: 1 pc - 1 pc MANUFACTURER: UNI-TREND https://www.uni-trend.com/
