In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

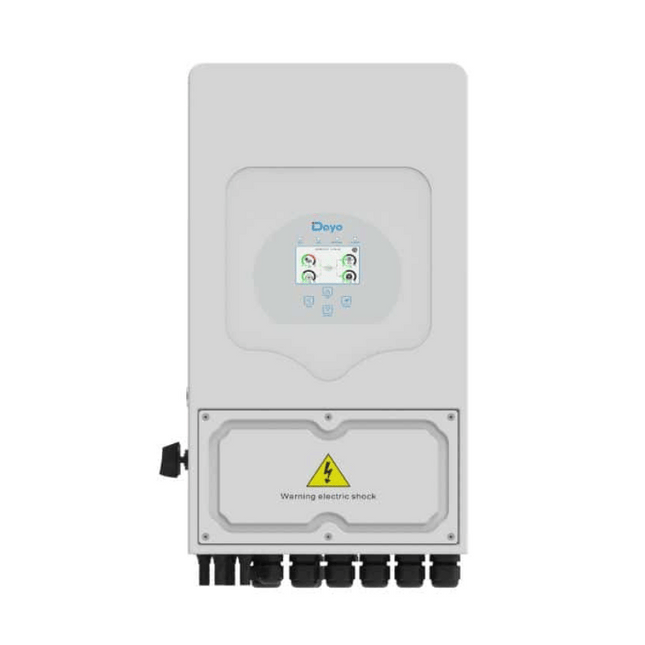

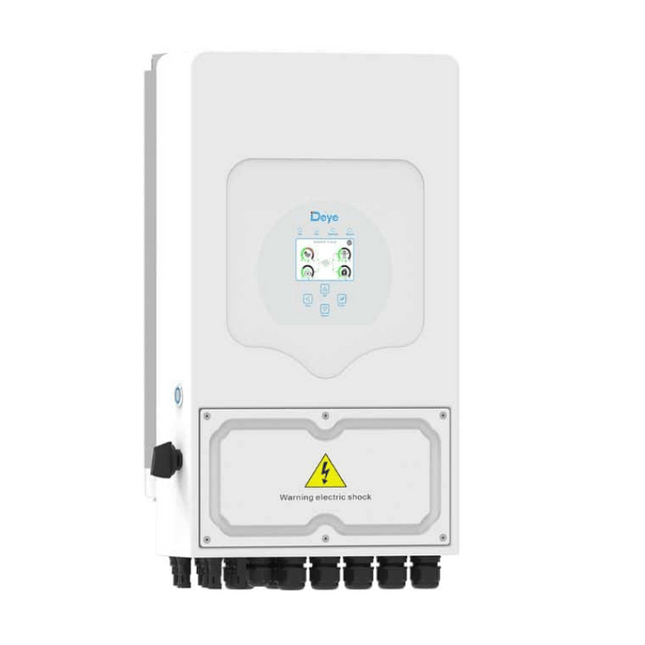

The DEYE single-phase inverter is suitable for residential use, maximising the rate of self-consumption of solar energy and increasing energy efficiency. During the day, the photovoltaic system generates electricity which is initially supplied to the loads. Any excess energy will then charge the battery or be fed into the grid. The inverter complies with the EN50549-1 standard, meaning it can be successfully used to become a prosumer. The ‘PV surplus’ function means that in off-grid mode, when the battery is charged to a certain set percentage, the inverter automatically begins to supply voltage via the dedicated port so that the energy the panels can produce is not wasted. The battery can also be charged by the diesel generator to ensure uninterrupted power supply in the event of a grid outage. It is equipped with an RS485/CAN port for battery communication.
Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market.
Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W.
As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts a T-type three-level topology and an enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM.
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

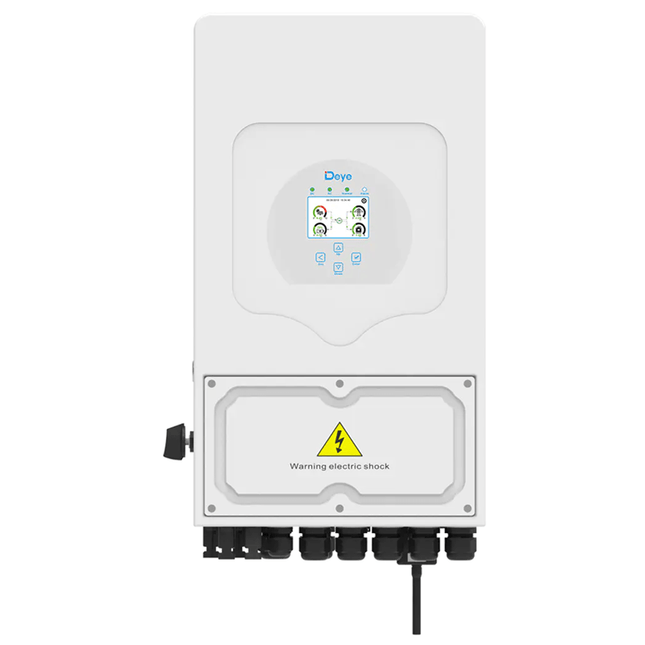

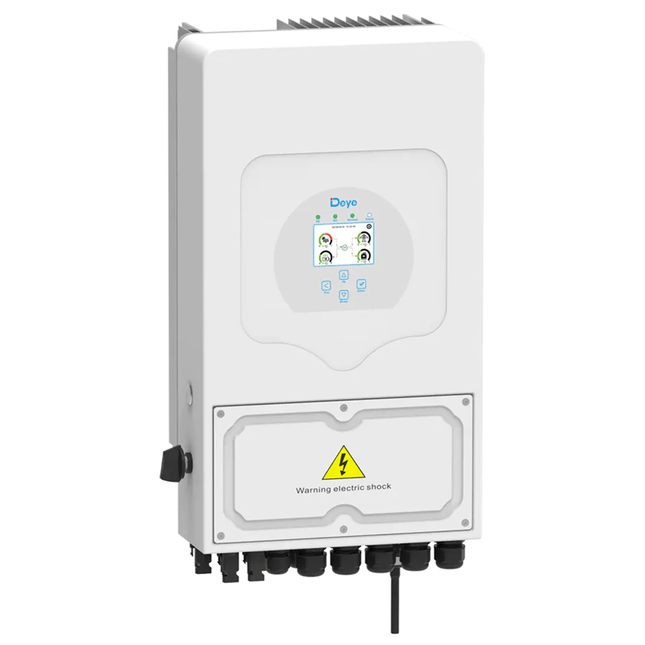

The DEYE SUN-6K-SG05LP1-EU-AM2-P hybrid inverter is a reliable single-phase solution designed for residential photovoltaic systems. With a power output of 6 kW, hybrid functionality and advanced energy management, this inverter allows the efficient integration of solar power, battery storage and uninterrupted energy supply for household loads. It is an excellent choice for homeowners looking to increase self-consumption, improve energy independence and reduce reliance on the grid.
Model
SUN-3.6K-SG05LP1-EU-AM2-P
SUN-5K-SG05LP1-EU-AM2-P
SUN-6K-SG05LP1-EU-AM2-P
SUN-7K-SG05LP1-EU-AM2-P
SUN-7.6K-SG05LP1-EU-AM2-P
SUN-8K-SG05LP1-EU-AM2-P
SUN-10K-SG05LP1-EU-AM2-P
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40–60
Max. Charging Current (A)
90
120
135
175
190
190
210
Max. Discharge Current (A)
90
120
135
175
190
190
210
Charging Strategy for Li-ion Battery
Self-adaptation to BMS
Number of battery inputs
1
PV String Input Data
Max. PV Input Power (W)
7200
10,000
12,000
14000
15200
16,000
20,000
Max PV Input Power (W)
5760
8000
9600
11,200
12160
12,800
16000
Max PV Input Voltage (V)
500
Start-up Voltage (V)
125
MPPT Voltage Range (V)
150–425
Rated PV Input Voltage (V)
370
Maximum operating PV input current (A)
18+18
18+18
18+18
32+32
32+32
32+32
32+32
Maximum Input Short-Circuit Current (A)
27+27
27+27
27+27
48+48
48+48
48+48
48+48
No. of MPP Trackers / Strings per MPPT
2 / 1+1
2 / 1+1
2 / 1+1
2 / 2+2
2 / 2+2
2 / 2+2
2 / 2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)
3600
5000
6000
7000
7600
8000
10,000
Max AC Apparent Power (VA)
3960
5500
6600
7700
8360
8800
11000
Rated AC Input/Output Current (A)
16.4/15.7
22.7/21.7
27.3/26.1
31.9/30.5
34.5/33.0
36.4/34.8
45.5/43.5
Max AC Input/Output Current (A)
18/17.2
25/23.9
30/28.7
35.0/33.5
38/36.3
40/38.3
50/47.9
Max Continuous AC Passthrough (A)
35 / 40 / 50
Peak Power (off-grid)
2× rated power (10s)
Rated Input/Output Voltage Range (V)
220/230V (0.85Un–1.1Un)
Grid Connection Type
L + N + PE
Grid Frequency Range
50Hz (45–55Hz) / 60Hz (55–65Hz)
Power Factor Adjustment Range
0.8 leading – 0.8 lagging
THDi
<3%
DC Injection Current
<0.5% In
Efficiency
Max Efficiency
97.60%
Euro Efficiency
96.50%
MPPT Efficiency
>99%
Equipment Protection
Integrated
DC reverse polarity protection, AC output overcurrent protection, thermal protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch,Insulation Impedance Detection, Residual Current Detection
Surge Protection Level
TYPE II (DC), TYPE II (AC)
Interface
Communication
RS485 / RS232 / CAN
Monitor Mode
GPRS / WiFi / Bluetooth / 4G / LAN (optional)
General Data
Operating Temperature Range
-40 to +60°C (>45°C derating)
Ambient Humidity
0–100%
Altitude
2500 m
Noise
<30 dB(A)
IP Rating
IP65
Inverter Topology
Non-isolated
Overvoltage Category
OVC II (DC), OVC III (AC)
Cabinet Size (mm)
330 × 580 × 232
Weight (kg)
24.9
Warranty
5 years / 10 years
The warranty period depends on the final installation site of the inverter.Please refer to the warranty policy for details.
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE Directive R25, G98, G99, VDE-AR-N 4105
Safety EMC Standards
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The V-TAC 10kW High Voltage photovoltaic inverter (SUN-10K-SG01HP3-EU-AM2) is a high-performance solution for three-phase hybrid photovoltaic systems, designed for residential and commercial applications requiring high efficiency and operational flexibility.
This inverter allows the simultaneous use of energy from panels, batteries and the grid, being compatible with both on-grid and off-grid systems, ensuring continuity of supply even in the event of power cuts.
With a rated power of 10kW and support for high-voltage (HV) systems, it offers superior efficiency and reduced losses compared to low-voltage solutions. It can also handle up to 13kW of input from photovoltaic panels, making it ideal for optimised systems.
✔ Hybrid operation (grid + battery + panels)✔ Compatible with high-voltage batteries✔ Ideal for prosumers and commercial applications✔ High efficiency (~97%)
Advantages & benefits
✔ Energy independence (operates even without the grid)✔ High efficiency and low losses✔ Ideal for high-voltage systems (more efficient)✔ Instant backup in the event of a power cut✔ Compatible with large storage systems (HV)
General information
Brand
V-TAC / Deye
Model
SUN-10K-SG01HP3-EU-AM2
Type
Three-phase hybrid inverter
Electrical data
Rated power
10 kW
Maximum PV power
13 kW
Peak power (off-grid)
150% for 10 seconds
Voltage
Maximum PV voltage
1000V
MPPT range
150 – 850V
Nominal PV voltage
600V
Start voltage
180V
Capabilities
Operation
On-grid / Off-grid / Backup
Number of MPPT
2
Protection rating
IP65
Operating temperature
-40°C to +60°C
Physical details
Dimensions
408 x 638 x 237 mm
Weight
30.5 kg
Other
Product code
SUN-10K-SG01HP3-EU-AM2
Warranty
10 years
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The SOLIS S6-EH3P125K10-NV-YD-H inverter is a state-of-the-art solution designed for commercial and industrial (C&I) applications, offering high performance, maximum flexibility and full integration with high-voltage storage systems.
Designed for high-power photovoltaic systems, this 125kW three-phase hybrid inverter enables efficient management of energy from panels, batteries and the grid, making it ideal for optimising consumption, reducing costs and ensuring continuity of supply.
With 10 independent MPPT trackers, support for DC oversizing of up to 200% and two independently controlled battery ports, Solis offers a scalable and highly efficient solution for complex industrial projects.
Advantages and benefits
✔ Ideal for industrial and commercial applications✔ Maximises output with multiple MPPTs✔ High flexibility in battery configuration✔ Instant backup for critical loads✔ Scalable – up to 6–10 units in parallel✔ Supports peak shaving and consumption optimisation ✔ Compatible with generators and complex hybrid systems
Category
Specification
General information
Model
S6-EH3P125K10-NV-YD-H
Inverter type
Three-phase hybrid
Application
Commercial & Industrial (C&I)
Protection rating
IP66
Operating temperature
-25°C to +60°C
Dimensions
1174 × 814 × 400 mm
Weight
170 kg
PV data (DC input)
Maximum PV power
250 kW
Maximum DC voltage
1000 V
MPPT range
150 – 950 V
Number of MPPT
10
Maximum current per MPPT
21 A
Number of strings per MPPT
2
Battery data
Battery type
Lithium-ion (High Voltage)
Battery voltage
300 – 950 V
Maximum charging current
100A + 100A
Max. discharge current
100A + 100A
Number of battery ports
2
AC data (output)
Rated power
125 kW
Output voltage
3/N/PE, 230/400V
Maximum AC current
189.9 A
Frequency
50/60 Hz
Performance
Maximum efficiency
97.6%
European efficiency
96.9
Functions and protections
Backup (EPS)
Yes, <10 ms
Overload
160% (short duration)
Smart functions
Peak shaving, VPP, load management
Protections
Overvoltage, short circuit, anti-islanding
Communication
Interfaces
RS485, CAN, Ethernet
Optional
WiFi / 4G
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The DEYE SUN-12K-SG05LP3-EU-SM2 hybrid inverter is a high-performance three-phase solution designed for residential and small commercial photovoltaic systems. With a power output of 12 kW, hybrid functionality and advanced energy management, this inverter enables the efficient integration of solar power, battery storage and a stable energy supply for connected loads. It is an ideal choice for users looking to maximise self-consumption, improve energy independence and reduce reliance on the grid.
Model
SUN-3K-SG05LP3-EU-SM2
SUN-4K-SG05LP3-EU-SM2
SUN-5K-SG05LP3-EU-SM2
SUN-6K-SG05LP3-EU-SM2
SUN-8K-SG05LP3-EU-SM2
SUN-10K-SG05LP3-EU-SM2
SUN-12K-SG05LP3-EU-SM2
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40–60
Max. Charging Current (A)
70
95
120
135
190
210
240
Max. Discharge Current (A)
70
95
120
135
190
210
240
Charging Strategy for Li-ion Battery
Self-adaptation to BMS
Number of Battery Inputs
1
PV String Input Data
Max. PV Input Power (W)
6000
8000
10,000
12,000
16,000
20,000
24,000
Max. PV Input Power (W)
4500
6400
8000
9600
12800
16,000
19200
Max. PV Input Voltage (V)
800
Start-up Voltage (V)
160
MPPT Voltage Range (V)
200–650
Rated PV Input Voltage (V)
550
Max. Operating PV Input Current (A)
20+20
20+20
20+20
20+20
26+26
26+26
26+26
Max. Input Short-Circuit Current (A)
30+30
30+30
30+30
30+30
39+39
39+39
39+39
No. of MPP Trackers / No. of Strings MPP Tracker
2 / 1+1
2 / 1+1
2 / 1+1
2 / 1+1
2 / 2+2
2 / 2+2
2 / 2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)
3000
4000
5000
6000
8000
10,000
12,000
Max. AC Input/Output Apparent Power (VA)
3300
4400
5500
6600
8800
11,000
13200
Rated AC Input/Output Current (A)
4.6/4.4
6.1/5.8
7.6/7.3
9.1/8.7
12.2/11.6
15.2/14.5
18.2/17.4
Max. AC Input/Output Current (A)
5/4.8
6.7/6.4
8.4/8
10/9.6
13.4/12.8
16.7/16
20/19.2
Max. Continuous AC Passthrough (grid to load) (A)
45
Peak Power (off-grid) (W)
2 times rated power, 10s
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)
220/380V, 230/400V, 0.85Un–1.1Un
Rated Input/Output Grid Frequency/Range (Hz)
50/45–55, 60/55–65
Grid Connection Type
3L+N+PE
Total Current Harmonic Distortion THDi
<3% (of rated power)
DC Injection Current
<0.5% In
Efficiency
Max. Efficiency
97.6%
Euro Efficiency
97.0%
MPPT Efficiency
>99%
Equipment Protection
Integrated
DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, arc fault circuit interrupter (optional), anti-islanding protection, DC switch, insulation impedance detection, residual current detection
Surge Protection Level
TYPE II (DC), TYPE II (AC)
Interface
Communication Interface
RS485/RS232/CAN
Monitor Mode
GPRS/Wi-Fi/Bluetooth/4G/LAN (optional)
General Data
Operating Temperature Range (℃)
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity
0–100%
Permissible Altitude
3000 m
Noise (dB)
≤55
Ingress Protection (IP) Rating
IP 65
Inverter Topology
Non-isolated
Overvoltage Category
OVC II (DC), OVC III (AC)
Cabinet Size (WxHxD mm)
386×660×250 (excluding connectors and brackets)
Weight (kg)
35.2
Type of Cooling
Intelligent Air Cooling
Warranty
5 years/10 years
The warranty period depends on the final installation site of the inverter; for further information, please refer to the warranty policy
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE Directive R25, G98, G99, VDE-AR-N 4105
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

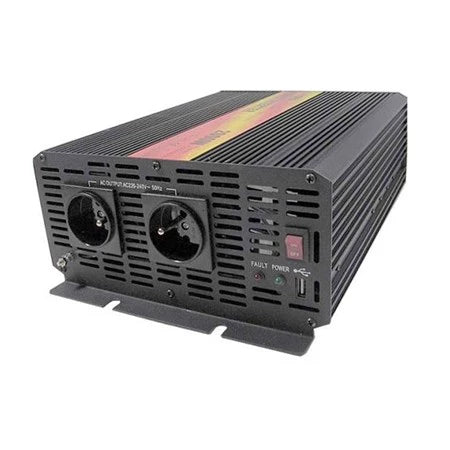

The CARSPA CAR2K inverter converts 12V DC from batteries into 230V AC, delivering a continuous power output of 2000W and a peak power output of up to 4000W. It is the ideal solution for powering video cameras, laptops, small power tools, kettles or other household appliances when there is no access to the mains supply.
With a robust construction and built-in protections, the CARSPA inverter offers reliability and safety in use.
⚠️ Warning: not recommended for equipment with asynchronous electric motors or other rotating machinery.
Key benefits:
12V DC → 230V AC conversion
Continuous power: 2000W
Peak power: 4000W
Overload and short-circuit protection
Compact dimensions and low weight
Ideal for mobile applications, camping, caravans and off-grid use
Technical specifications:
Input voltage: 12V DC
Output voltage: 230V AC
Rated power: 2000W
Maximum power (peak): 4000W
No-load current: 1.8A (at 10–15V)
Maximum protection: 200A (according to datasheet)
Dimensions (L × W × H): 290 × 230 × 110 mm
Weight: 4.05 kg
Waveform: modified sinewave
Warranty: 24 months
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

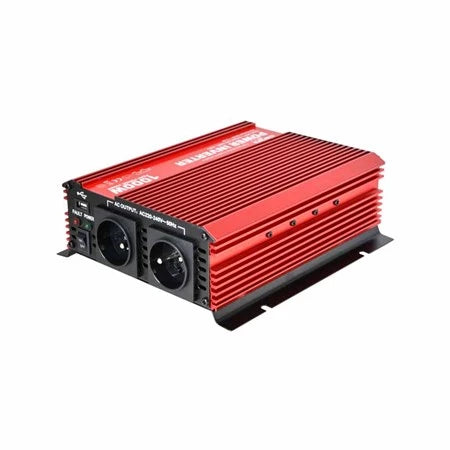

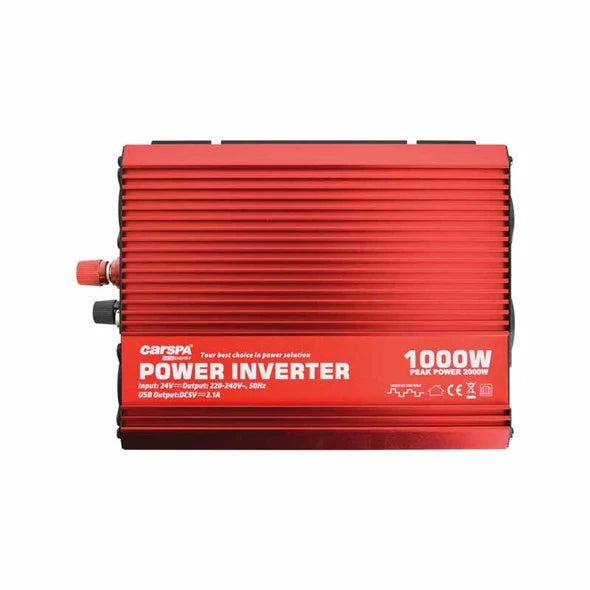

The CARSPA CAR1K inverter converts 24V DC from batteries into 230V AC, delivering a continuous power output of 1000W and a peak power output of up to 2000W. It is the ideal choice for travel, camping, caravans, boats or as a backup power source in an emergency.
It features a 5V USB port for directly powering mobile devices and multiple built-in protections: reverse polarity, under-voltage or over-voltage, short circuit, over-load, overheating and complete battery discharge.
⚠️ Warning: not recommended for equipment with asynchronous electric motors or other rotating machinery.
Key benefits:
24V DC → 230V AC conversion
Continuous power: 1000W (1 kW)
Peak power: 2000W (2 kW)
5V USB port for mobile devices
Soft Start function for smooth start-up of appliances
Built-in protections (overload, short circuit, reverse polarity, overheating, etc.)
LED indicator for operating status
Compact dimensions and low weight
Can be permanently mounted thanks to dedicated mounting holes
Technical specifications:
Continuous output power: 1000W
Maximum (peak) power: 2000W
Frequency: 50/60 Hz
Waveform: modified sine
Input voltage: 24V DC
Output voltage: 230V AC
USB port: 5V
Dimensions (L × W × H): 230 × 180 × 77 mm
Weight: 3.1 kg
Warranty: 24 months
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

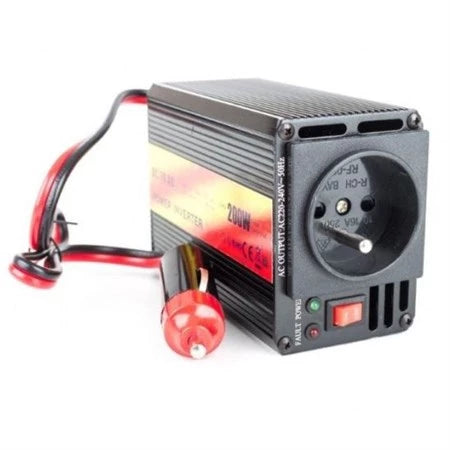

The CARSPA CAR201 inverter converts 12V DC (car socket) to 230V AC, allowing you to power various electrical appliances in the car, on a boat, when camping, or in holiday cottages equipped with solar panels. It is ideal for connecting cameras, mobile phones, laptops, lamps, CD/DVD players, radios and other low-power devices.
It features a 5V / 2.1A USB port for fast charging of gadgets and offers protection against reverse polarity, low or high voltage, short circuits and complete battery discharge.
⚠️ Note: a good-quality car socket and a suitably rated cable are required for correct operation.
Key benefits:
12V DC → 230V AC conversion
Continuous power: 200W
Peak power: 400W
5V / 2.1A USB port for fast charging
Ultra-compact dimensions (11 cm long)
Built-in safety protections
Ideal for cars, boats, camping and travel
Technical specifications:
Continuous output power: 200W
Maximum (peak) power: 400W
Frequency: 50/60 Hz
Waveform: modified sine wave
Input voltage: 12V DC (car socket)
Output voltage: 230V AC
USB port: 5V / 2.1A
Dimensions (L × W × H): 110 × 60 × 44 mm
Weight: 610 g
Warranty: 24 months
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

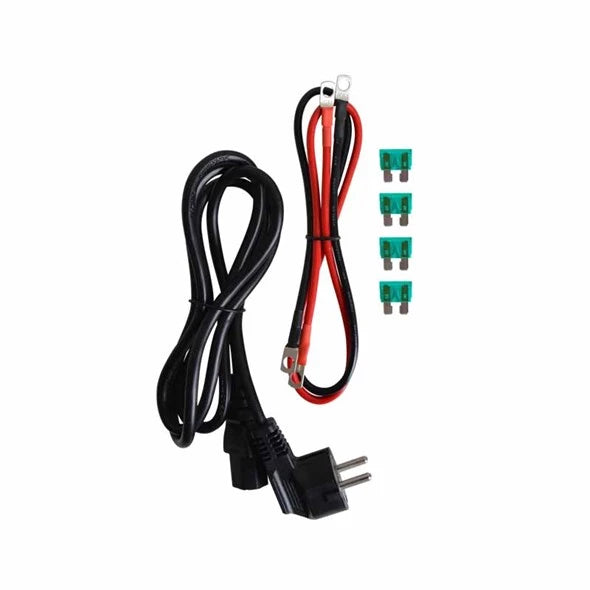

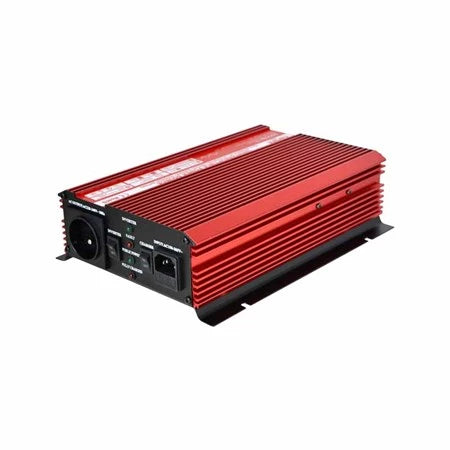

The CARSPA UPS1000 inverter is a 3-in-1 device: inverter + UPS + charger. It can be used as a backup power supply to keep various devices running, particularly computers, data systems or other sensitive equipment, in the event of a power cut.
Under normal conditions, the inverter supplies power to devices from the mains. When the mains power fails, it switches automatically in approximately 15 ms and converts the energy from the 12V DC battery into 230V AC, ensuring that the equipment continues to operate without interruption. When mains power is restored, the inverter returns to normal mode and begins charging the backup battery.
⚠️ Note: not recommended for equipment with asynchronous motors or rotating machinery.
Key benefits:
12V DC → 230V AC conversion with a rated power of 1000W
UPS (uninterruptible power supply) function with a switching time of just 15 ms
Automatic battery charging function, with overcharge protection
Multiple protections: overload, overvoltage, reverse polarity, overheating, short circuit and complete battery discharge
Compatible with 12V batteries (recommended ≥100Ah)
Compact design, lightweight (3 kg)
Technical specifications:
AC input voltage: 220–240V / 50 Hz
AC output voltage: 230V (modified sine wave)
Backup battery: 12V lead-acid (min. 30Ah, recommended ≥100Ah)
Continuous power: 1000W (1 kW)
Maximum (peak) power: 2000W (2 kW)
UPS switchover time: 15 ms
Maximum load current: 10A
Dimensions (L × W × H): 325 × 208 × 77 mm
Weight: 3 kg
Warranty: 24 months
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The CARSPA UPS600 inverter is a 3-in-1 device: inverter + UPS + charger. It can be used as a backup power source for appliances, particularly computers, data equipment and other sensitive devices, in the event of a power cut.
In normal operation, equipment is powered directly from the mains. In the event of an interruption, the inverter switches over in just 8 ms and begins converting the voltage from the 12V DC battery to 230V AC, ensuring continuous operation. When mains power is restored, the power supply switches back to the mains, and the inverter automatically starts the process of charging the backup battery.
It also features a 5V / 2.1A USB port for charging mobile devices.
⚠️ Note: not recommended for equipment with asynchronous motors or other rotating machinery.
Key benefits:
12V DC → 230V AC conversion, 600W power
UPS function with very fast switchover time (8 ms)
Battery charger function with overcharge protection
5V / 2.1A USB port for phones and gadgets
Multiple protections: overload, overvoltage, reverse polarity, overheating, short circuit, deep discharge
Compatible with 12V batteries (recommended ≥100Ah)
Compact design, lightweight (2 kg)
Technical specifications:
AC input voltage: 220–240V / 50 Hz
AC output voltage: 230V (modified sine wave)
Rated power: 600W (0.6 kW)
Maximum power (peak): 1200W (1.2 kW)
Backup battery: 12V lead-acid (min. 30Ah, recommended ≥100Ah)
Maximum charging current: 10A
USB port: 5V / 2.1A
UPS switchover time: 8 ms
Dimensions (L × W × H): 290 × 150 × 85 mm
Weight: 2 kg
Warranty: 24 months
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

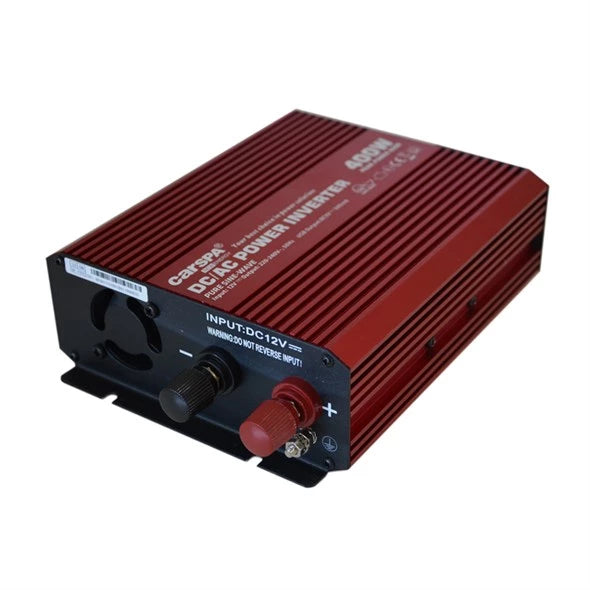

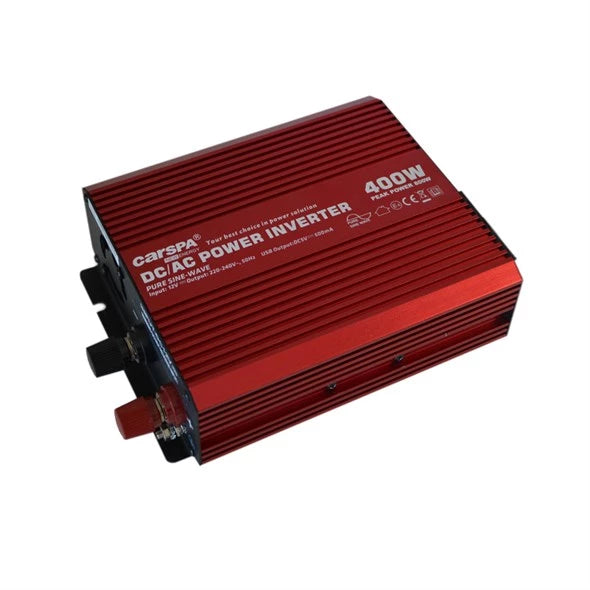

The CARSPA P400 inverter converts 12V DC to 230V AC with a pure sine wave output, identical to that of the mains supply. This type of inverter allows for the safe powering of all appliances, including those with electric motors (tools, pumps, drills) or inductive loads (transformers).
It is equipped with a 5V/500mA USB port for charging digital devices and features multiple protections against: overvoltage, overload, reverse polarity, high temperature, low voltage and short circuit.
Built using high-frequency PWM technology, it offers high performance in a compact and portable design.
Key benefits:
12V DC → 230V AC conversion
Pure sine wave output – safe for any type of equipment
Continuous power: 400W (0.4 kW)
Peak power: 800W (0.8 kW)
5V/500mA USB port for charging mobile devices
Built-in protections (overload, overvoltage, reverse polarity, temperature, short circuit)
Compact dimensions and low weight
Technical specifications:
Continuous output power: 400W
Maximum (peak) power: 800W
USB port: 5V / 500mA
Input voltage: 9.5–16V DC
Output voltage: 230V AC
Frequency: 50 Hz
Waveform: pure sine wave
Maximum input current: 33A
Dimensions (L × W × H): 260 × 150 × 58 mm
Weight: 1.6 kg
Warranty: 24 months
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

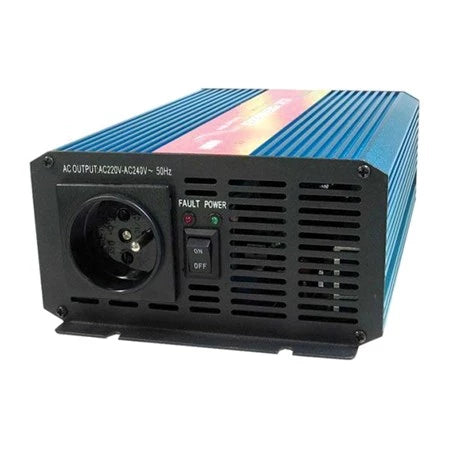

The CARSPA P600 inverter converts the 24V DC voltage from batteries into 230V AC with a pure sine wave output, identical to that of the mains supply. It is ideal for safely powering sensitive devices and consumer electronics, such as digital cameras, mobile phones, laptops, printers, lamps, CD/DVD players, radios and many others.
Compact and efficient, the inverter is equipped with a Soft Start function for smooth device start-up and offers advanced protection against overload, reverse polarity, overvoltage, overheating, short circuit and complete battery discharge.
Key benefits:
24V DC → 230V AC conversion
Pure sine wave output – safe for any type of appliance
Continuous power: 600W (0.6 kW)
Peak power: 1200W (1.2 kW)
Soft Start function to protect equipment
Multiple protections for maximum safety
Status and connection LED on protective conductor
Can be permanently mounted thanks to dedicated mounting holes
Technical specifications:
Continuous output power: 600W
Maximum (peak) power: 1200W
Frequency: 50/60 Hz
Waveform: pure sine wave
Input voltage: 24V DC
Output voltage: 230V AC
Dimensions (L × W × H): 220 × 150 × 78 mm
Weight: 2.7 kg
Warranty: 24 months
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The DEYE SUN-25K-SG01HP3-EU-AM2 hybrid inverter is a high-performance three-phase solution for large-scale commercial and industrial photovoltaic systems. With a power output of 25 kW, hybrid functionality and two MPPT trackers, this inverter ensures the efficient integration of solar energy, smart battery storage and a constant supply to consumers. It is ideal for prosumers and businesses looking to optimise their energy consumption and reduce their reliance on the grid.
Key technical data
Nominal output power: 25,000 W (25 kW)
Max. apparent AC power: 27,500 VA
Max. AC output current: 40 A
Number of MPPT channels: 2
Photovoltaic input voltage: up to 1,000 V
PV input current per tracker: 37.5 A
Max. PV input power: 32,000 W
Recommended PV input power: 24,000 W
Maximum efficiency: 97.6%
European efficiency: 97%
Protection rating: IP65 (dust and water resistant)
Weight: 90.5 kg
Dimensions: 408×638×237 mm (excluding connectors and brackets)
Connections: RS485 / RS232 / CAN, monitoring via GPRS/Wi-Fi/Bluetooth/4G
Key benefits
High power output of 25 kW – ideal for commercial and industrial applications.
Hybrid functionality – manages both solar generation and battery energy storage.
High efficiency (97.6%) – for minimal energy loss.
2 independent MPPT trackers – maximises output by adapting to different panel orientations and tilt angles.
Extensive compatibility – support for a wide range of Li-ion batteries.
Integrated protections – overvoltage, overcurrent, short-circuit, thermal protection and islanding detection.
Smart communication – via Wi-Fi, Bluetooth or GPRS for remote monitoring.
Robust IP65 construction – suitable for outdoor conditions.
Easy installation and maintenance – compact design and intuitive interface.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The inverter is suitable for residential use, maximising the rate of solar energy self-consumption and increasing energy efficiency. During the day, the photovoltaic system generates electricity which is initially supplied to the loads. Any surplus energy will then charge the battery or be fed into the grid. The inverter complies with the EN50549-1 standard, meaning it can be successfully used to become a prosumer. The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid outage. It is equipped with an RS485/CAN port for battery communication.
Ningbo Deye Inverter Technology Co., Ltd., founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of the Deye Group. With a factory area of over 15,000 m² and comprehensive production and testing facilities, Deye has become a major player in the global solar inverter market.
Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic energy system solutions, including solutions for residential and commercial power plants. Deye also offers the right device for every application: for all types of modules, for grid-connected and off-grid systems, as well as for hybrid inverter systems, for small-scale systems and commercial systems in the megawatt range. Among these, the power of the grid-connected PV inverter ranges from 1.5–110 kW, the hybrid inverter from 3 kW–50 kW, and the microinverter from 300 W–2000 W.
As a technology-oriented company, Deye has always been committed to researching and developing cutting-edge technologies to deliver efficient and reliable products. For example, Deye adopts a T-type three-level topology and an enhanced SVPWM algorithm to further improve conversion efficiency by 0.7% compared to standard SPWM.
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The DEYE 80kW Hybrid Inverter, 6xMPPT, SUN-80K-SG02HP3-EU HV is the ideal solution for large-scale commercial and industrial applications. With 6 independent MPPT trackers, compatibility with high-voltage batteries and parallel connection capability, this inverter offers maximum flexibility and efficiency in any advanced photovoltaic system, whether on-grid or off-grid.
Compatible with 160–1000V LiFePO4 batteriesAlso works with diesel generatorsCompact design, IP65 – easy indoor or outdoor installationIntegration with monitoring systems: RS485 / CAN / WiFi / LAN / 4G (optional)
Key features:
Nominal AC power (grid): 80,000W
Maximum photovoltaic panel power: 160,000W
Number of MPPT: 6 independent trackers
PV operating voltage: 150 – 850V DC
HV battery compatibility: 160 – 1,000V DC
Battery charge/discharge current: 160A
Output voltage: 3-phase / 400V
Max. efficiency: 97.6%
Cooling: fan-cooled (intelligently controlled)
Dimensions: 606 × 927 × 314 mm
Weight: 97.5 kg
Protection rating: IP65 – suitable for outdoor use
Advanced features:
Up to 10 inverters can operate in parallel
Supports off-grid and backup operation (active phase L1)
Support for installation in self-consumption or grid-feed-in systems
Extensive communication: RS485 / CAN / WiFi / LAN / 4G (optional)
Compatible with EMS (Energy Management System)
Integrated protections:
Reverse polarity protection
AC/DC short-circuit protection
Residual current monitoring (RCD)
Type II overvoltage protection (AC and DC)
Anti-islanding protection and grid detection
Arc fault protection (optional)
The DEYE Hybrid 80kW, 6xMPPT, SUN-80K-SG02HP3-EU HV inverter is ideal for commercial, industrial or large prosumer applications. It can be integrated with high-capacity storage solutions, operates stably in any operating mode and delivers excellent performance in all seasons.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

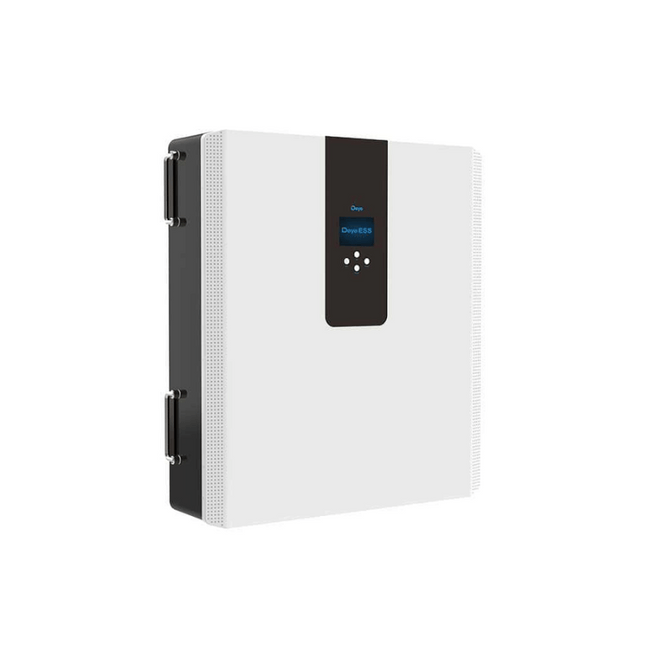

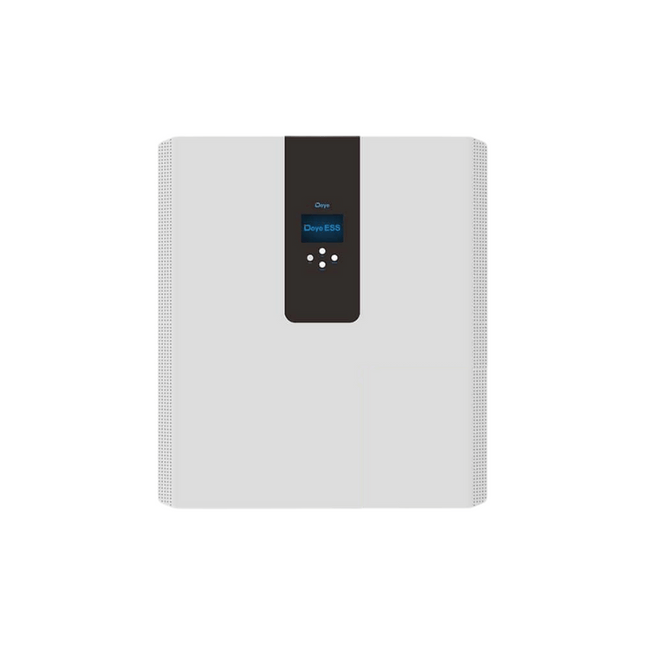

The Deye 5kW inverter + 5.12kWh storageunit , model RW-F5.3-1H3, is a complete, ready-to-install photovoltaic solution . The system comprises a 5kW single-phase hybrid inverter and a 5.12kWh LiFePO₄ storage unit , pre-assembled into a compactvertical unit .
It is ideal for homes seeking energyindependence , high efficiency and uninterrupted power supply , even in the event of powercuts .
See also: Complete photovoltaic kits – SolarTech
Technicalspecifications :
Invertermodel :RW-F5.3-1H3
Inverterpower : 5,000 W (5 kW)
Invertertype :Single-phase hybrid
Storagecapacity : 5.12 kWh (LiFePO₄)
Nominal voltage of storageunit : 51.2 V
MaximumPV voltage : 600 Vdc
Number ofMPPTtrackers : 2
Maximum inputcurrent : 14 A / 14 A
Inverterefficiency : up to 97.6%
UPSswitching time :≤10 ms
Communication: RS485 / CAN / Wi-Fi / Bluetooth
Total systemweight :71 kg
Dimensions: 616x 690 x 191 mm
Protectionrating : IP65 (for outdoor/indooruse )
Keyfeatures :
Plug & Play – pre-assembled system , ready for installation
IntegratedLiFePO₄ storage unit – lifespan≥6000 cycles
2 MPPTinverter – optimised performance even in shadedconditions
Rapidbackup system (UPS) – ensures instant power supply in the event of an outage
Compactdesign – suitable for small spaces , can also be installed indoors
Real-timemonitoring – mobile app and onlineplatform
Scalability – option to add additionalstorage units (with compatibleequipment )
Installation and use:
The Deye 5kW inverter + 5.12kWh storage unitis quick and easy to install , with all main connections pre-configured. It requires only:
Wallmounting (or floor mounting with a stand)
Connection to solarpanels
Connection to the grid and consumers
Advantages of the All-in-Onesystem :
Deye 5kW inverter + integrated 5.12kWhstorage – all ina single unit
Instantbackup in the event of a powercut (UPS≤10 ms)
Real-timemonitoring via mobileapp
Compactvertical design , ideal for smallspaces
LiFePO₄technology – over 6 ,000 chargecycles
Quickinstallation – pre-configuredconnections
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The DEYE 50kW inverter, combined with the Oliter 60kWh high-voltage storage system, is an advanced energy management solution for large-scale commercial and residential applications. This system ensures intelligent and efficient management of solar energy, providing both a reliable energy source and storage capacity to meet fluctuating energy demands.
Technical specifications
Installation type: Rack-mountable
Battery type: LiFePO4 (LFP) – long-cycle technology
Energy per module: 5.12 kWh
Nominal module voltage: 51.2 V
Capacity per module: 100 Ah
Total system capacity (12 modules): 61.44 kWh
Usable capacity: 49.15 kWh (80% DOD – Depth of Discharge)
System operating voltage: 556.8 – 681.6 V
Recommended charging/discharging current: 50 A
Total weight: 632.5 kg
Dimensions: 580 mm x 584.5 mm x 2162 mm
Protection: IP20 – for protected indoor environments
Monitoring: System voltage, current, module/cell temperature
Lifespan: ≥6000 cycles at 70% EOL
Operating temperature: Between 0°C and 45°C (charging) and between -10°C and 55°C (discharging)
Storage temperature: Between 0°C and 35°C
Product advantages
Superior safety and efficiency: LiFePO4 batteries are renowned for their safety and stability, offering a long service life and enhanced resistance to extreme temperatures.
High durability: With over 6,000 charge/discharge cycles, the system delivers consistent long-term performance.
Significant usable capacity: With a nominal capacity of 61.44 kWh and a usable capacity of 49.15 kWh, this system provides a considerable energy reserve for critical applications.
Intelligent monitoring: CAN communication and advanced monitoring of system parameters ensure efficient, real-time energy management.
Modularity: The system is rack-mountable and can be expanded or reconfigured as required, making it ideal for variable energy needs.
Package contents
DYE 50kW inverter – Reliable power converter for utilising stored energy.
12 OHR60k-100 storage modules – LiFePO4 (LFP) batteries with a total capacity of 60kWh.
Cables and connectors – For easy and secure connection between the modules and the inverter.
User manual – Guide for installation and operation.
Conclusion
The DEYE 50kW Inverter + 60kWh HV Oliter Storage system is a reliable solution for those seeking efficient solar energy management, ensuring an optimal balance between storage, safety and long-term performance.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
This 5-metre cable for Deye micro-inverters is designed to provide a stable and secure connection within photovoltaic systems. Ideal for professional installations, the cable ensures efficient power transmission between the solar panels and the inverter, contributing to the optimal performance of your green energy generation system.
Key features:
Length: 5 metres, ideal for installation flexibility
Compatibility: Specially designed for Deye micro-inverters
Durability: High-quality materials, resistant to harsh weather conditions
Secure connection: Reduces energy loss and ensures consistent operation
Easy to install: Ideal for both professional and DIY installers
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

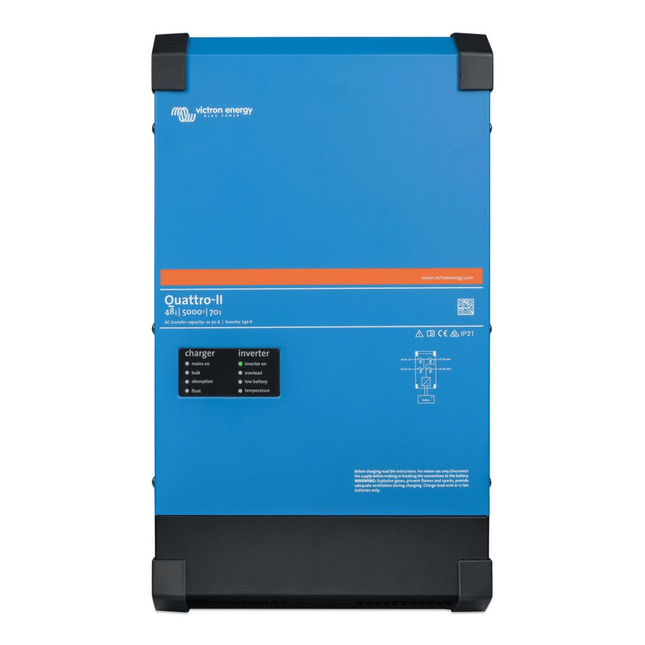

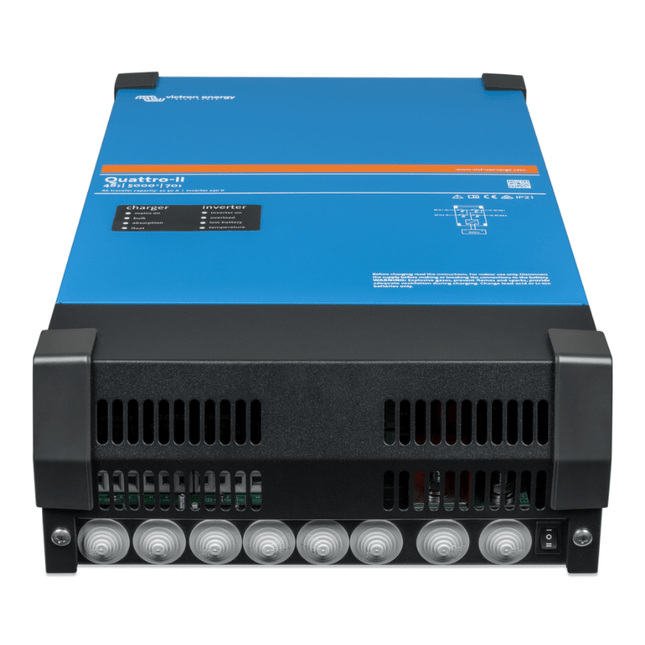

The Quattro offers a wide range of advanced features.
The Quattro-II has two AC inputs (AC-in-1 and AC-in-2) for connecting two independent power sources. For example, two generators or a mains supply and a generator. The Quattro automatically selects the input to which power is present.
If power is present at both inputs, the Quattro-II selects the AC-in-1 input to which the generator is normally connected.
Automatic and uninterrupted switching
In the event of a power failure or when the generator set is switched off, the Quattro-II will switch to inverter operation and take over the power supply to the connected devices. This happens so quickly that the operation of computers and other electronic devices is not disrupted (continuous power supply or UPS functionality). This makes the Quattro-II very suitable as an emergency power supply system in industrial and telecommunications applications,
Product details
PowerControl & PowerAssist
Yes
Transfer switch
50A
Maximum AC input current
50A
Continuous output power at 25°C
5000VA
Maximum power
9000W
Maximum efficiency %
96
Maximum battery charging current
70A
Battery temperature sensor
Yes
Programmable relay
Yes
Operating temperature range
from -40 to +65°C (fan-assisted cooling)
Degree of protection
IP22
Weight
30 kg
Dimensions (H x W x D) mm
560 x 328 x 148
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The VE.Direct port can be connected to:
A computer (requires a VE.Direct to USB cable)
Apple and Android smartphones, tablets, MacBooks and other devices (requires VE.Direct Dual Bluetooth)
Fully configurable:
Triggering and resetting low battery voltage alarms
Battery voltage cut-off and restart levels
Dynamic disconnection: load-dependent cut-off level
Output voltage: 210–245 V
Frequency: 50 Hz or 60 Hz
ECO mode on/off and ECO sensitivity level
Monitoring:
Input and output voltage
Charging and alarms

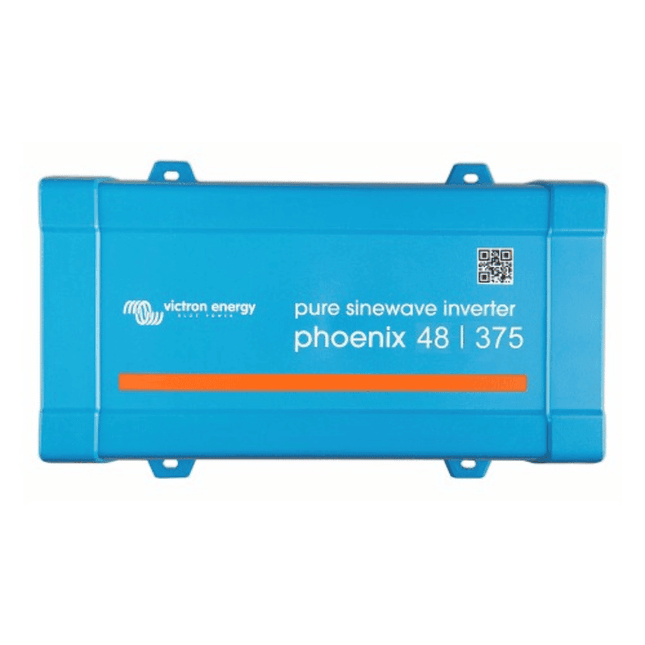

Phoenix inverters are part of a range designed for high-quality services, based on advanced SinusMAX photovoltaic technology, with the unique feature of starting at full load.
Superior technology – SinusMAX
The Phoenix range of inverters has been designed for professional applications and is suitable for a variety of uses. The design focuses on achieving a sinusoidal output with maximum efficiency, without compromising performance.
Key features:
HF hybrid technology: a compact, lightweight, reliable product capable of supplying power to any type of load.
Full-load start-up: ideal for demanding loads such as computers or power tools.
VE.Direct communication port: can be connected to computers, smartphones, tablets and other devices, offering flexibility and ease of use.
Proven reliability: toroidal transformer technology provides protection against short circuits, overheating and overloads, ensuring long-term reliability.
ECO mode: the inverter enters standby mode when the load drops below a preset value, saving energy. If the load exceeds a preset level, it restarts automatically.
On/off remote control: a remote control can be connected to a two-pin connector, available on all models.
Automatic load transfer to another AC source: for low-power models, we recommend the Filax automatic transfer switch, which ensures a very short transfer time (<20 ms), so that electronic equipment will continue to operate without interruption.
Technical specifications:
Dimensions: 86 x 165 x 260 mm
Weight: 3 kg
Power output at 25°C: 375VA
Power output at 25°C/40°C: 300/260W
Peak power: 700W
Output voltage: 230VAC ± 3%, 50Hz or 60Hz ± 0.1%
Input voltage range: 36.8–62.0V
Low battery voltage alarm: 43.6V
Battery power cut-off: 37.2V
Self-regeneration battery voltage: 56.0V
Maximum efficiency: 90%
No-load power: 8.5W
Operating temperature range: -40°C to +65°C (fan-cooled)
Humidity: max. 95% (non-condensing)
Standards: EN-IEC 60335-1, EN-IEC 62109-1, UL 458, EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
4°C
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The VE.Direct port can be connected to:
A computer (VE.Direct to USB cable required)
Apple and Android smartphones, tablets, MacBooks and other devices
(VE.Direct Dual Bluetooth required)
Fully configurable:
Low battery voltage alarm triggers and reset levels
Battery voltage cut-off and battery restart levels
Dynamic disconnection: load-dependent cut-off level
Output voltage 210–245 V
Frequency: 50 Hz or 60 Hz
ECO mode on/off and ECO sensitivity level
Monitoring:
Input and output voltage
Charging and alarms
Phoenix inverters are part of a range designed for high-quality performance, based on superior solar photovoltaic technology – SinusMAX – featuring the unique ability to start at maximum load.
Superior technology – SinusMAX
The Phoenix range of inverters, designed for photovoltaic panel systems, is created for professional use and is suitable for a wide range of applications.
The design focuses on optimal efficiency without compromising on performance, delivering a high-quality sinusoidal output.
Using HF hybrid technology, Phoenix offers a product:
High quality
Compact in size
Lightweight
Highly reliable
Capable of supplying power for any type of load.
Start-up at full load – A unique feature of SinusMAX technology.
Wide range of applications
Phoenix inverters are recommended for powering demanding loads. They can be integrated into stand-alone photovoltaic kits – independent photovoltaic systems.
VE.Direct communication port
This can be connected to computers, smartphones (Apple, Android), tablets, MacBooks and other compatible devices.
Proven reliability
The toroidal transformer design has proven its long-term reliability.
Phoenix inverters offer protection against:
Short circuits
Overload
Overheating
High ambient temperatures
ECO mode
In ECO mode, the inverter goes into standby when the load drops below a preset level.
After entering standby mode, it activates for a short period (2.5 seconds, factory setting). If the load exceeds the preset level, the inverter remains on.
Remote control on/off
Can be connected to a two-pin connector, available on all Phoenix models.
Automatic transfer switch
For low-power models, we recommend using the Filax automatic transfer switch.
Filax has a very short transfer time (under 20 milliseconds), allowing computers or electronic equipment to operate without interruption.
Technical specifications:
Dimensions: 86 x 172 x 275 mm
Weight: 3.9 kg
AC power output at 25°C: 500VA
Power output at 25°C / 40°C: 400 / 350W
Peak power: 900W
AC output voltage / frequency: 230VAC +/- 3%, 50Hz or 60Hz +/- 0.1%
Input voltage: 36.8 - 62.0V
Low battery voltage alarm: 43.6V
Battery power cut-off: 37.2V
Low battery voltage (self-regeneration): 56.0V
Maximum efficiency: 91%
No-load power consumption: 9W
Inverter protection: a - f
Operating temperature: -40 to +65°C (with fan)
Maximum humidity: 95% (non-condensing)
Standards: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 / EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

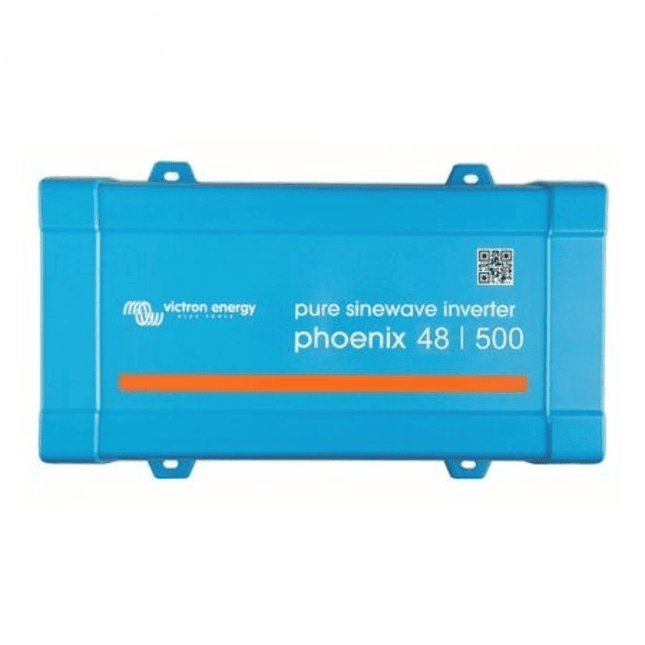

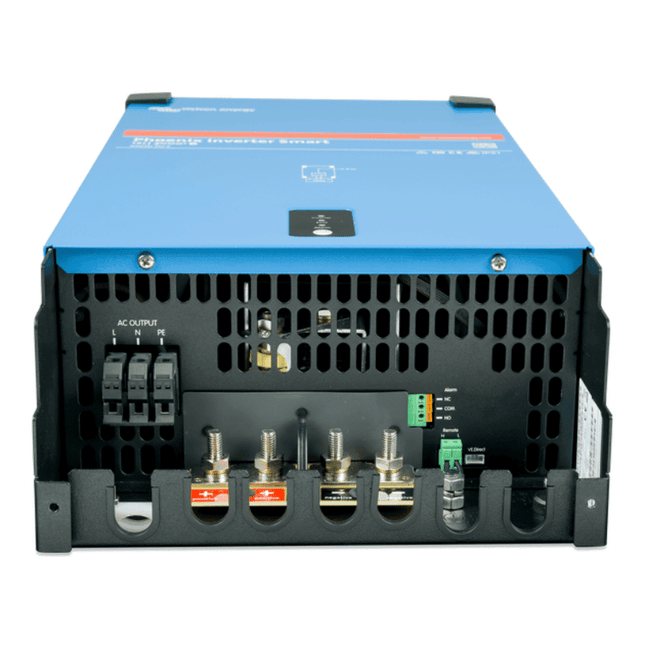

Phoenix inverters are designed for high-quality performance, utilising advanced SinusMAX solar photovoltaic technology, and feature the unique ability to start up at full load.
Key features:
Built-in Bluetooth: Fully configurable via a tablet or smartphone.
Low battery voltage: Integrated functions for low voltage management.
Disconnection and restart: Configurable levels for low battery voltage.
Dynamic disconnection: Adjustment of the disconnection level according to load.
Output voltage: 210–245 V.
Frequency: 50 Hz or 60 Hz.
ECO mode:
Automatic start/stop.
Level sensor for ECO mode.
Alarm relay.
Monitoring:
Monitoring of input and output voltage.
Load and alarm monitoring.
VE.Direct communication port:
Allows connection to a computer (VE.Direct to USB interface cable required) for configuration and parameter monitoring.
Proven reliability:
Complex topology: H-bridge toroidal transformer, demonstrating reliability over the years.
The inverters are short-circuit resistant and protected against overheating caused by overload or high ambient temperatures.
ECO mode:
In ECO mode, the inverter switches to standby when the load falls below a certain preset value. In standby, the inverter starts up every 2.5 seconds (adjustable). If the load exceeds the preset level, the inverter remains on.
Technical specifications:
Dimensions: 485 x 285 x 150 mm
Weight: 19 kg
AC power output at 25°C: 3000 VA
Power output at 25°C / 40°C: 2400 / 2200 W
Peak power: 6000 W
AC output voltage / frequency: 230 VAC ± 2% 50 Hz ± 0.1%
Input voltage range: 37.2–68 V
Maximum efficiency: 95%
No-load power: 15 W
Photovoltaic panel system protection: A - G
Operating temperature range: -40 °C to +50 °C (fan-cooled)
Humidity (non-condensing): maximum 95%
Standards: EN 60335-1 / EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

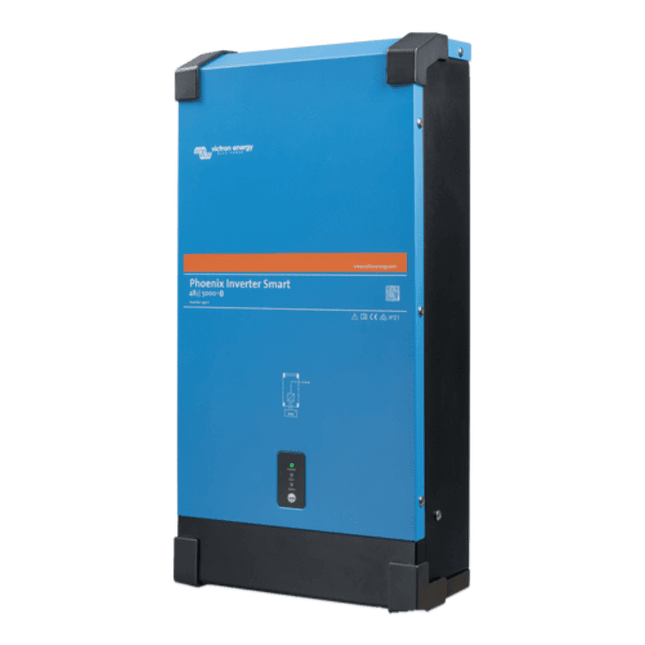

Phoenix inverters are designed for high-quality performance, utilising advanced SinusMAX solar photovoltaic technology, and feature the unique ability to start up at full load.
Key features:
Built-in Bluetooth: Fully configurable via a tablet or smartphone.
Low battery voltage: Integrated functions for low voltage management.
Disconnection and restart: Configurable levels for low battery voltage.
Dynamic disconnection: Adjustment of the disconnection level according to load.
Output voltage: 210–245 V.
Frequency: 50 Hz or 60 Hz.
ECO mode:
Automatic start/stop.
Level sensor for ECO mode.
Alarm relay.
Monitoring:
Monitoring of input and output voltage.
Load and alarm monitoring.
VE.Direct communication port:
Allows connection to a computer (VE.Direct to USB interface cable required) for configuration and parameter monitoring.
Proven reliability:
Complex topology: H-bridge toroidal transformer, demonstrating reliability over the years.
The inverters are short-circuit resistant and protected against overheating caused by overload or high ambient temperatures.
ECO mode:
In ECO mode, the inverter switches to standby when the load falls below a certain preset value. In standby, the inverter starts up every 2.5 seconds (adjustable). If the load exceeds the preset level, the inverter remains on.
Technical specifications:
Maximum power: 10,000 W
AC output voltage: 230 V
DC input voltage: 37.2–68 V
Maximum efficiency: 95%
Operating temperature: -40 °C to +50 °C
Dimensions: 555 x 295 x 160 mm
Weight: 28 kg
Standards: EN 60335-1 / EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

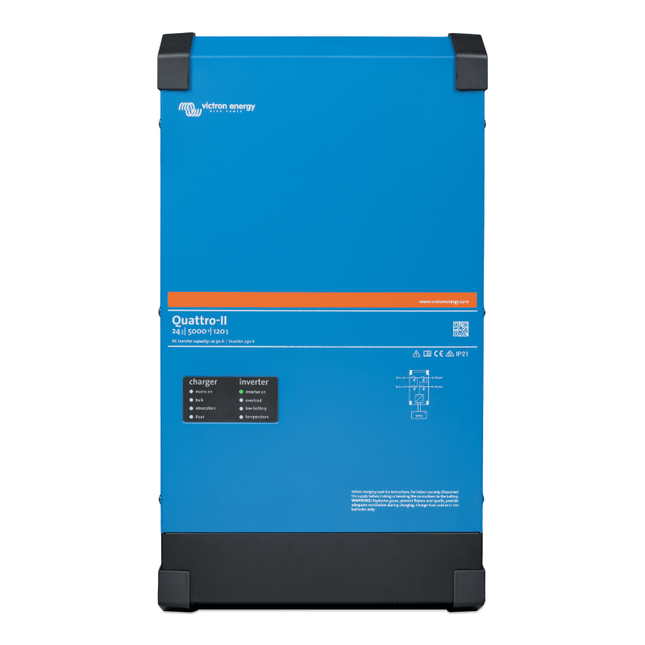

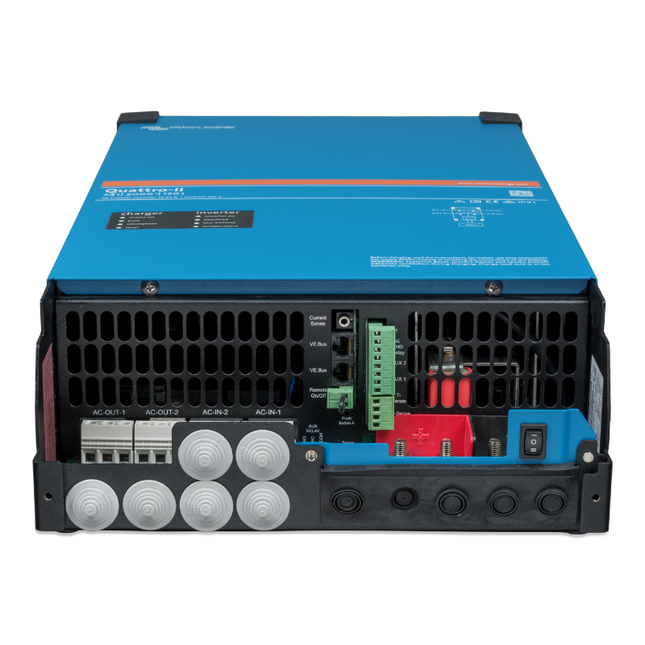

The Quattro offers a wide range of advanced features.
The Quattro-II has two AC inputs (AC-in-1 and AC-in-2) for connecting two independent power sources. For example, two generators or a mains supply and a generator. The Quattro automatically selects the input to which power is present.
If power is present at both inputs, the Quattro-II selects the AC-in-1 input to which the generator is normally connected.
Automatic and uninterrupted switching
In the event of a power failure or when the generator set is switched off, the Quattro-II will switch to inverter operation and take over the power supply to the connected devices. This happens so quickly that the operation of computers and other electronic devices is not disrupted (continuous power supply or UPS functionality). This makes the Quattro-II very suitable as an emergency power supply system in industrial and telecommunications applications,
Product details
PowerControl & PowerAssist
Yes
Transfer switch
50A
Maximum AC input current
50A
Continuous output power at 25°C
5000VA
Maximum power
9000W
Maximum efficiency %
96
Maximum battery charging current
120A
Battery temperature sensor
Yes
Programmable relay
Yes
Operating temperature range
from -40 to +65°C (fan-assisted cooling)
Degree of protection
IP22
Weight
31 kg
Dimensions (H x W x D) mm
607 x 330 x 149
![[Re-sealed] DEYE SUN-12K-SG04LP3-EU 12kW Three-Phase Hybrid Inverter](//solar-tech.it/cdn/shop/files/SUN-10K-SG04LP3-EU_2.jpg?v=1776539537&width=645)
![[Re-sealed] DEYE SUN-12K-SG04LP3-EU 12kW Three-Phase Hybrid Inverter](//solar-tech.it/cdn/shop/files/SUN-10K-SG04LP3-EU.jpg?v=1776539537&width=645)
![[Re-sealed] DEYE SUN-12K-SG04LP3-EU 12kW Three-Phase Hybrid Inverter](http://solar-tech.it/cdn/shop/files/SUN-10K-SG04LP3-EU_2.jpg?v=1776539537&width=645)
![[Re-sealed] DEYE SUN-12K-SG04LP3-EU 12kW Three-Phase Hybrid Inverter](http://solar-tech.it/cdn/shop/files/SUN-10K-SG04LP3-EU.jpg?v=1776539537&width=645)
