UNI-T DC Power Supplies

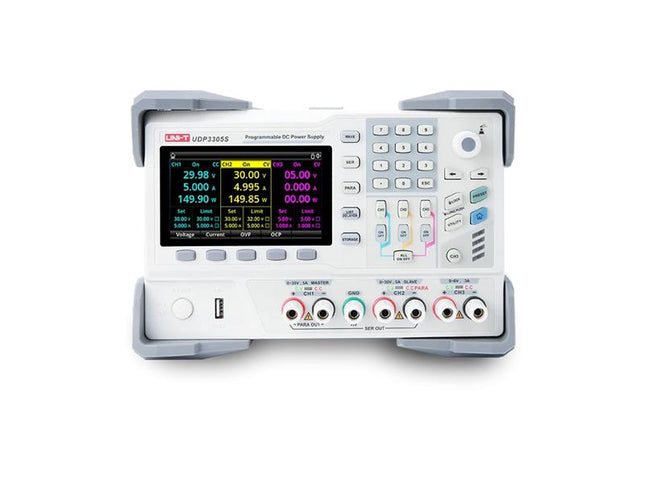

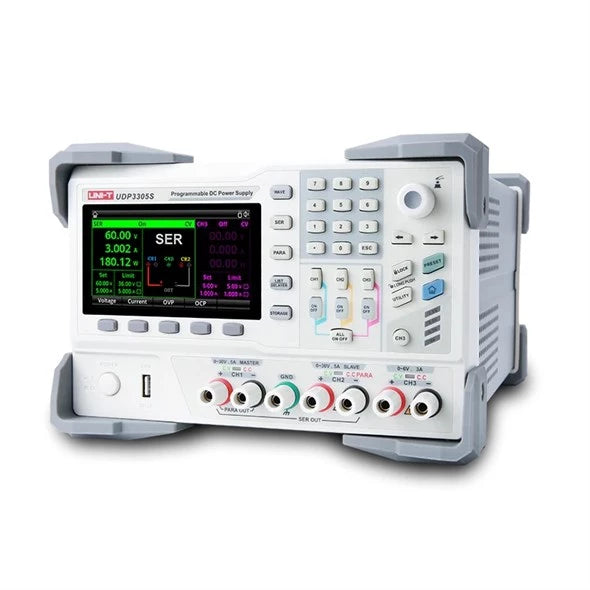

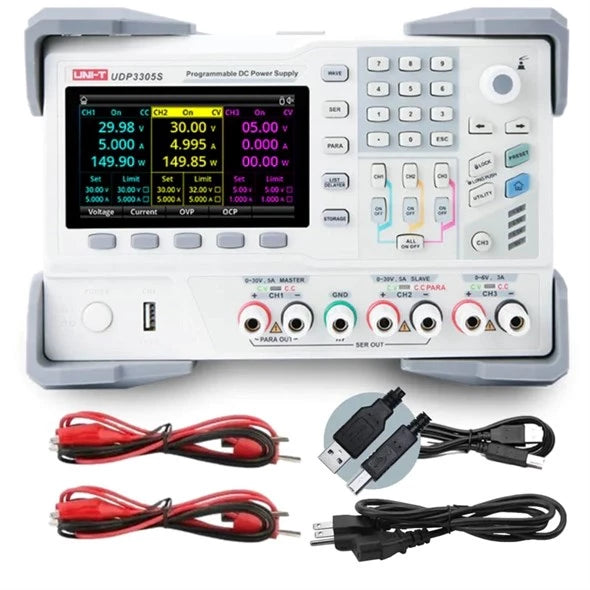

This product comes with a 3-year warranty. The UNI-T UDP3305S Programmable Linear DC Power Supply – UDP3000S Series is a high-performance programmable linear DC power supply. It features a clear LCD user interface, excellent performance indicators, a range of analytical functions and communication interfaces. It can meet users’ diverse testing needs. Its aim is to provide affordable programmable DC power supplies for education, scientific research, industry and other fields. 4 channels, CH1/CH2: 0–30V/0–5A, CH3: 0–6V/0–3A, CH4: 5V/2A, Power: 13W/2A, Resolution: 13W/2A, Resolution: 13W <0.03%+10mV/<0.2%+5mA, USB/RS232/LAN, Digital I/O Product parameters: - split-screen function - real-time value monitoring Interactive LCD interface: - utilising a high-definition function and rich user interface, with a 4.3-inch high-definition display. operation, which can display the current set output voltage/current, actual output voltage/current and real-time protection of the power supply output value. The functional interface is simple yet comprehensive, and easy to operate List/delay functions: - With list and delay setting functions, up to 2048 data sets can be set according to test requirements, and the number of cycles can reach 99999. It is used with waveform templates, which is very convenient for cyclic testing and loop testing. Parallel connection: - The serial-parallel connection between CH1 and CH2 of the main channel can be implemented without an external connection, which simplifies the connection and facilitates testing Extended interface for remote control: - Standard RS232 communication interface, Ethernet interface, digital I/O, and USB master and slave interfaces can be controlled via a remote connection to the RS232 host computer or USB32 software, or via RS232 host software. Control Technical parameters: - Model type: UDP3305 - Linear, programmable laboratory power supply, multi-channel - Number of channels: 4Ch - Display type: 4.3" LCD - supply voltage: 230 V AC>- output voltage: 230 V/A - CH1/CH2: 0 ~ 30V DC CH3: 0 ~ 6V DC CH4: 5V DC - output current: CH1/CH2: 0–5A CH3: 0–3A CH4: 2A - total resolution of 8 W 10mV - output current resolution: 1mA - voltage stabilisation: ≤0.3% + 20mV - current stability: ≤0.2% + 5mA - Interface: USB device, RS-232, LAN, USB host, digital I/O - Dimensions: 6/24 mm - 1 x 24 mm Accessories supplied: power cable, USB 2.0 print cable - Shipping weight: 10.2 kg Manufacturer: UNI-T Link to download software for PC connection: https://instruments.uni-trend.com/products/dc-power-supplies/UDP3000S

Leggere Di più Meno

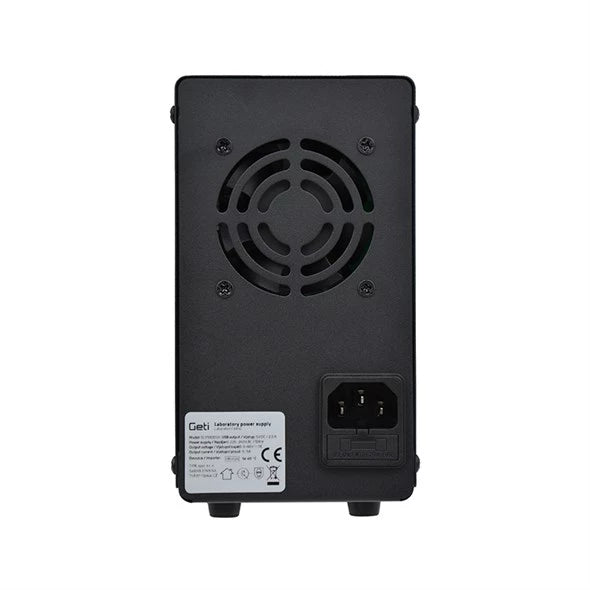

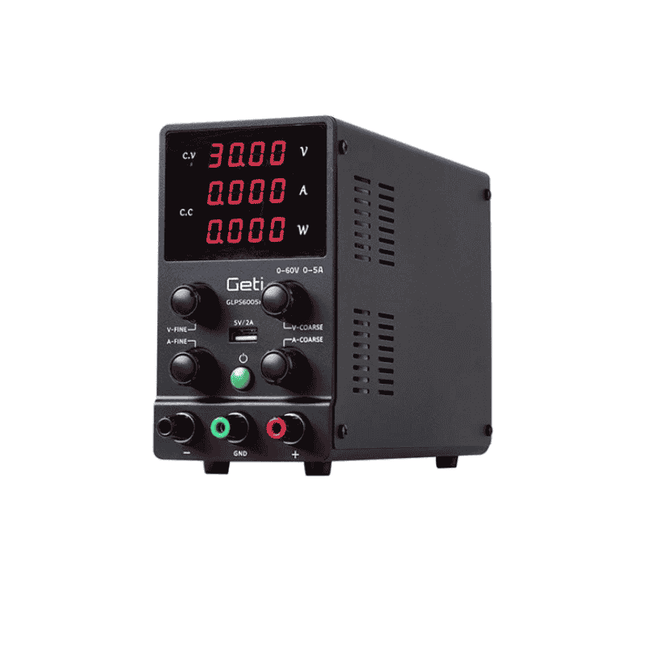

This product comes with a 3-year warranty. The Geti GLPS6005H laboratory power supply is designed to power various electronic equipment. It allows for fine adjustment of the output voltage and current, maintaining the set values stably and accurately, regardless of fluctuations in the input voltage or the connected load.The output voltage is adjustable between 0V and 60V, and the current between 0A and 5A. The power supply ensures excellent stability and low ripple, delivering consistent performance under all conditions. The device can operate both as a constant voltage source and as a constant current source. It is equipped with short-circuit and overload protection, offering complete safety to the user and protecting the equipment from damage. This power supply is ideal for use in laboratories, electronics workshops, production lines, household appliance service centres, DIY projects, and as an educational tool in schools. Product specifications: Single-channel DC power supply Adjustable voltage and current Triple illuminated LED display for U(V), I(A) and P(W) Compact, high-quality design Overload protection 5V / 2A USB output Technical specifications: Output voltage range: DC 0–60 V, coarse + fine adjustment Output current range: 0–5 A, coarse + fine adjustment Supply voltage: 220–230 V AC, 50 Hz Constant voltage condition: Voltage stability: ≤0.2% ± 3 mV Low-voltage variation: 0.3–0.4% ± 3 mV Load stability: ≤0.5% ± 3 mV Ripple and noise: ≤150 mVp-p Constant current condition: Current stability: ≤0.2% ± 3 mA Load stability: ≤0.2% ± 3 mA Ripple and noise: ≤20 mAms Display accuracy: 0.5% ± 2 digits Voltage display resolution: 0.01 V Current display resolution: 0.001 A Operating temperature: 0°C – 40°C Operating humidity: <80% RH Weight: 1.4 kg Dimensions: 220 × 85 × 150 mm Standard fuse: T5A Main parameters: Number of outputs: 1 channel Maximum voltage: 60 V Maximum current: 5 A

Leggere Di più Meno

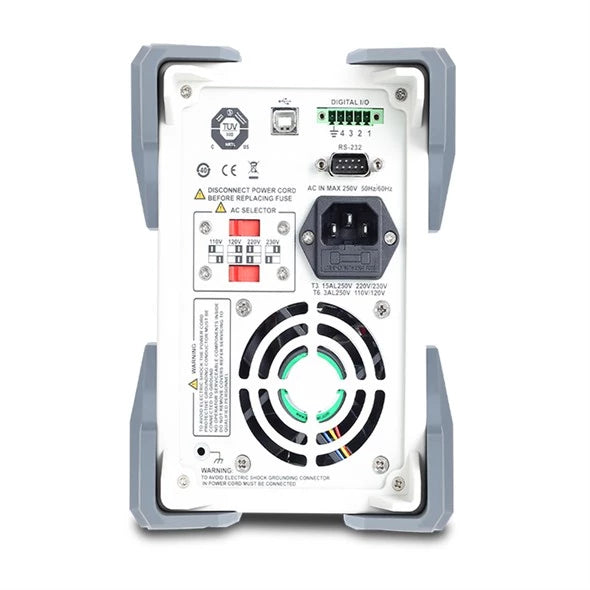

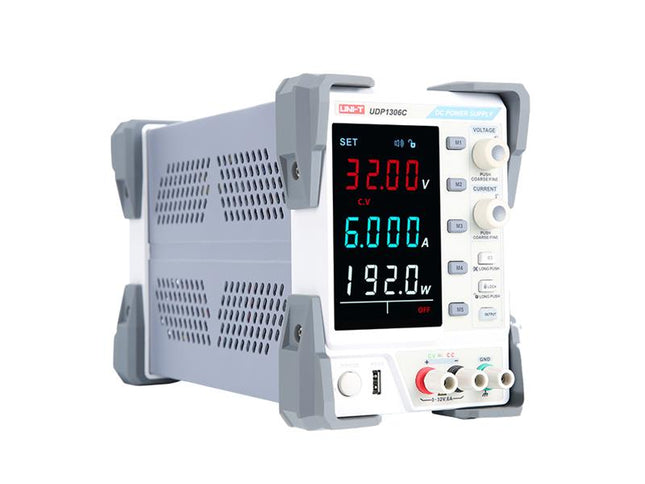

UNI-T UDP 1306C DC Power Supply The UDP1306C programmable DC power supply is a cost-effective laboratory power supply featuring a main output channel and a USB charging channel. It is a basic power supply for users who require a smaller, highly reliable power supply. Compared to the higher-end (multi-channel) UDP power supplies, this model allows for a higher channel load, up to 6A at a voltage of 32V. The power supply contains a classic linear transformer and allows operation in constant voltage (CV) mode within the range of 0 to 32V or in constant current (CC) mode from 0 to 6A. In addition, there is a USB connector on the front panel, which can be used to charge, for example, a mobile phone at a voltage of 5V and a current of up to 3A. The laboratory power supply features an EBTN display with three high-precision indicators that simultaneously display voltage, current and power with 4-digit accuracy. The power supply has programmable parameters. It features 5 memory slots for easy storage and recall of set modes, and a lock button to prevent unwanted changes to the parameters. On the rear of the power supply housing are USB-Device and RS232 connectors, and a DIGITAL I/O interface for remote control of the power supply. Using the supplied software, it is possible to record and display the consumption or load characteristics of the connected load in real time on the connected PC in an Excel spreadsheet or graph, and communication with the computer can be carried out via SCPI commands. Regular calibrations can be performed via the software. The power supply contains an overheat-controlled fan; the long-term temperature of the power supply is monitored by an overheat fan, which shuts down the power supply when the limit value is reached and restarts it after cooling. Product parameters: - fine software adjustment of output voltage and current - three four-digit displays for immediate monitoring of voltage, current and power - Voltage setting from 0 to 32V with a resolution of 60V, current setting from 0 to 32V with a resolution of 6mV - power supply operation in constant voltage (CV) or constant current (CC) mode - Overvoltage protection (OVP), overcurrent protection (OCP), over-temperature protection (OTP) - one channel for charging, e.g. a mobile phone via the USB port on the front panel - USB-Device, RS232 and DIGITAL I/O interfaces on the rear panel - built-in buzzer to indicate status changes - Lock buttons to prevent unwanted changes to parameters - Intelligent temperature-controlled cooling fan - Automatic power cut-off in the event of transformer overload - on the rear panel, input voltage selector 110V/120V/220V/230V (AC 50/60Hz) Technical parameters: - rated output voltage: 0 to 32V - rated output current: 0 to 32V - rated output current: 0 to approx. 192 W - Voltage/current setting resolution: 10 mV/1 mA - Voltage setting accuracy in (CV) mode: ≤ (0.01% of measured value + 3 mV) - current setting accuracy in (CC) mode: ≤ (0.1% of measured value plus noise +3mA (-5 mA) at 20MHz) at the main output: ≤2mV RMS / ≤3mA RMS - Nominal voltage/current protection at the USB output: 5V ± 5%/3A - Voltage/current temperature coefficient: ≤ 300ppm/°C // ≤ 300ppm/°C // ≤ 300ppm/°C supply voltage-°C 110V/120V/220V/230V / (50/60Hz) - Protection (for 110/120V AC power supply): fuse type: T6.3AL/250V (20x5mm) - protection (for 220/230V AC power supply type: fuse T6.3AL/250V/AC): 35V/250V (20x5mm) - dimensions (width x height x depth): 136 x 194 x 327mm - weight: approx. 7.5 kg Contents of individual package: - UDP1306C laboratory power supply: 1 pc - power cable: 1 pc - USB-A to USB-B interface cable (UT-D14): 1 pc - Set of connection cables with alligator clips: 1 set - user manual: 1 pc - RS232 communication cable (on request): 1 pc Packaging for bulk customers: - Standard quantity per box: 1 pc - Standard box dimensions: 505 x 270 x 335 mm - Gross weight of box: 6 kg MANUFACTURER: UNI-T PC software download link: https://instruments.uni-trend.com/EU-EN/powersupplies/udp1306c.html

Leggere Di più Meno

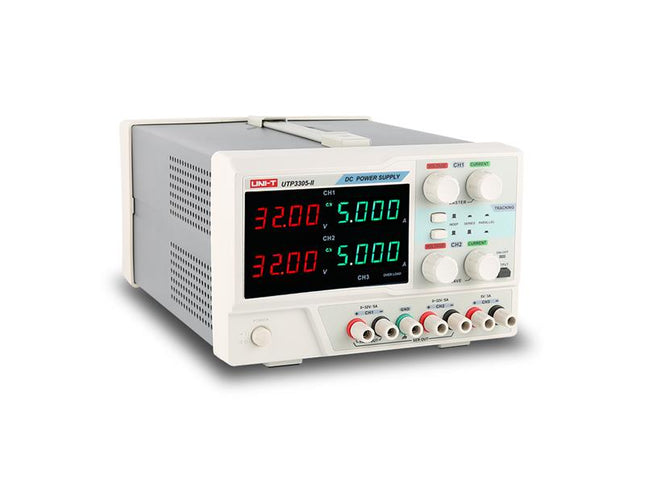

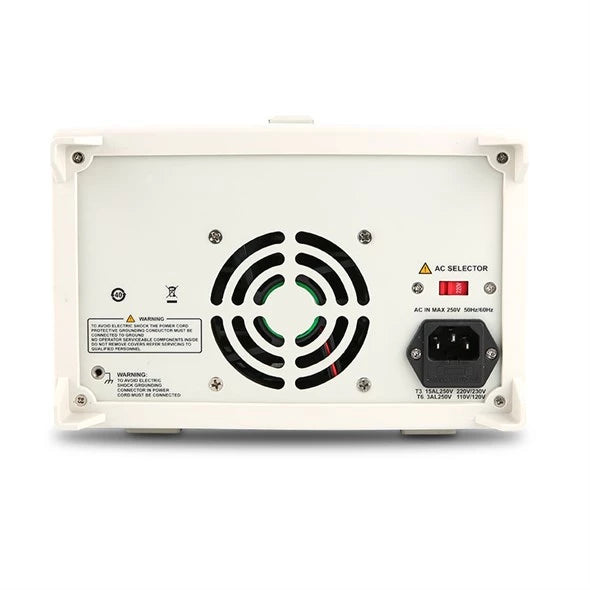

This product comes with a 3-year warranty. The UTP3305-II laboratory power supplies are high-quality power supplies with three independent channels from the manufacturer UNI-T. The power supplies contain a classic linear transformer, and channels CH1 and CH2 allow operation in constant output voltage mode within the range of 0 to 32V or in constant output current mode from 0 to 5A. Channel CH3 provides a constant output voltage of 5V and features overload protection when the current draw reaches 3A. Channels CH1 and CH2 can operate independently of each other, or can be connected internally in series or in parallel, then supply voltages from 0 to 64V / 0 to 5A or from 0 to 32V / 10A. The laboratory power supplies have four LED displays that show voltages and currents simultaneously, with 4-digit accuracy on each of the CH1 and CH2 channels. The power supply contains a temperature-controlled fan; the long-term thermal overload of the laboratory power supply’s transformer is monitored by a sensor, which shuts down the power supply when the limit value is reached and restarts it after cooling. The device is CE certified. Product parameters: - setting of currents and voltages using fine multi-turn potentiometers - four four-digit LED displays for immediate monitoring of voltages and currents in channels CH1 and CH2 - Voltage setting from 0 to 32V with a resolution of 0 to 32V with a resolution from 0/10V to -m resolution of 1mA - operation of channels CH1 and CH2 in constant voltage and constant current modes - option to connect channels CH1 and CH2 internally in series or in parallel - CH3 channel with fixed voltage of 5V, max. 3A - temperature-controlled cooling fan - disconnection from the power supply when the transformer is thermally overloaded - 110V / 120V / 220V / 230V (AC 50 / 60Hz) input voltage selector on the rear Technical output voltage CH1 and CH2: 0 to 32 V - CH1 and CH2 rated output current: 0 to 5 A - CH3 rated output voltage / current: 5 V / max. 3 A - total rated output power: 335W - voltage / current setting resolution: 10 mV / 1 mA - voltage setting accuracy: ± (0.1% of measured value + 30 mV) - current setting accuracy: ± (0.3% of measured value) - 0.3% of measured value + 0.1% of measured value plus noise (0–20 MHz) at CH1 and CH2 outputs: ≤1 mV RMS / ≤3 mA RMS - ripple and noise at the CH3 output: ≤2mV - temperature coefficient: voltage ≤300 ppm/°C // current ≤300 ppm/°C Recovery time: 50%, minimum load: 0.5A) - Rated supply voltage: AC 110V / 120V / 220V / 230V / (50 / 60Hz) - protection via tubular fuse type: F10AL250V (when powered by 110/120V AC), (powered by 110/120V AC) 230V AC) - power consumption: 700W - dimensions: 319 x 146 x 226mm - weight: 10.5kg Package contents: - UTP3305-II laboratory power supply power cable clips - user manual MANUFACTURER: UNI-TREND

Leggere Di più Meno

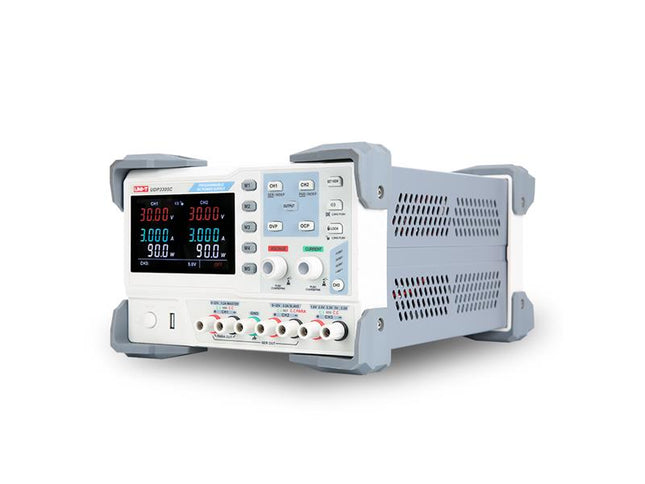

The UDP3305C programmable DC power supply is a cost-effective, four-channel independent laboratory power supply from UNI-T. The power supply contains a classic linear transformer, and in channels CH1 and CH2 it allows operation in constant voltage (CV) mode within the range of 0 to 30V or in constant current (CC) mode from 0 to 5A. Channel CH3 provides a constant output voltage with the option to select a level of 1.8V, 2.5V, 3.3V or 5.0V and features overload protection when the current draw reaches 3.2A. In addition, there is a USB connector on the front panel, which serves as channel CH4 and can be used to charge, for example, a mobile phone at 5V/2A. Channels CH1 and CH2 can operate independently, or can be connected internally in series or in parallel, in which case the power supply provides a voltage of 0 to 60 V or 0 to 50 V or 30 V/10 A. The laboratory power supply features an EBTN display with 6 high-precision indicators that simultaneously display voltages, currents and power in both CH1 and CH2 channels to 4 decimal places. The power supply has programmable parameters. It features 5 memory slots for easy storage and recall of preset modes and a lock button to prevent unwanted changes to the parameters. On the rear of the power supply housing are USB-Device and RS232 connectors and a DIGITAL I/O interface for remote control of the power supply. Using the supplied software, it is possible to record and display the consumption or load characteristics of the connected load in real time on the connected PC in an Excel spreadsheet or a graph, and it can communicate with the computer via SCPI communication commands. Regular calibrations can be performed via the software. The power supply contains a temperature-controlled fan; the long-term temperature overload of the laboratory power supply’s transformer is monitored by sensors which shut down the power supply when the limit value is reached and restart it after cooling. Product parameters: - fine adjustment of current and voltages CH1/2 in both channels. Four-digit displays for immediate monitoring of voltages, currents and powers in channels CH1 and CH2 - Voltage setting from 0 to 30V with a resolution of 10mV - Current setting from 0 to 5A with a resolution of 1mA - Operation of CH1 and CH2 channels in constant voltage mode, with the option to connect CH1 and CH2 channels in series or in parallel - Overvoltage protection (OVP), overcurrent protection (OCP), over-temperature protection (OTP) - CH3 channel with a fixed voltage of 1.8V; 2.5V; 3.3V or 5.0V, max. 3.2A - CH4 channel on the front panel USB port for charging, e.g. a mobile phone - built-in buzzer to indicate status changes - Lock buttons to prevent unwanted changes to parameters - USB-Device, RS232, and DIGITAL I/O interfaces on the rear panel - Temperature-controlled cooling fan - Disconnection from the power supply in the event of a voltage transformer overload - rear voltage selector 110V/120V/220V/230V (AC 50/60Hz) Technical parameters: - Nominal output voltage CH1 and CH2: 0 to 30V - Nominal output current CH1 and CH2: 0 to 5 A - total output voltage - 30 V resolution (CH1 and CH2): 10 mV/1 mA - in (CV) mode, voltage setting accuracy (CH1 and CH2): ≤ (0.01% of measured value +3 mV, at current ≤ 3 A) - in (CV) mode, voltage setting accuracy (CH1 and CH2): ±5% of the measured value, for current > 3 A - in (CC) mode, current setting accuracy (CH1 and CH2): ≤ (0.2% of measured value +3mA) - noise and distortion (20 Hz to 20 MHz) at CH1 and CH2 outputs: ≤1 mV RMS / ≤3 mA RMS – nominal output voltage / ≤3 mA RMS – nominal current 1.8 V; 2.5 V; 3.3 V; 5.0 V (±3%, can be precisely set)/max. 3.2 A - noise and hum (20 Hz to 20 MHz) at CH3 output: ≤2 mV - Output voltage/max. current in CH4 channel (USB): 5 V ± 0.25 V/2 A - temperature coefficient of voltage/current: ≤ 300 ppm/°C // ≤ 300 ppm/°C - Nominal supply voltage: AC 110V/120V/220V/220V/20V (protection) - protection (with 220/230V AC supply): fuse type: T3.13AL/250V (20x5mm) - dimensions (width x height x depth): 16 mm x 40 x 40 mm approx. 10.2 kg - gross weight of the box: 12 kg Contents of individual package: - UDP3305C laboratory power supply: 1 pc - power cable: 1 pc - USB-A to USB-B interface cable (UT-D14): 1 set of connection cables - 1 pc set - Spare fuses: 1 pc - user manual: 1 pc - RS232 communication cable (on request): 1 pc Packaging for bulk customers: - standard quantity per box: 2 pcs - Standard box dimensions: 445 x 3003 mm MANUFACTURER: UNI-T PC software download link: https://instruments.uni-trend.com/EU-EN/powersupplies/udp3300.html

Leggere Di più Meno

This product comes with a 3-year warranty. The UNI-T UDP3305S Programmable Linear DC Power Supply – UDP3000S Series is a high-performance programmable linear DC power supply. It features a clear LCD user interface, excellent performance indicators, a range of analytical functions and communication interfaces. It can meet users’ diverse testing needs. Its aim is to provide affordable programmable DC power supplies for education, scientific research, industry and other fields. 4 channels, CH1/CH2: 0–30V/0–5A, CH3: 0–6V/0–3A, CH4: 5V/2A, Power: 13W/2A, Resolution: 13W/2A, Resolution: 13W <0.03%+10mV/<0.2%+5mA, USB/RS232/LAN, Digital I/O Product parameters: - split-screen function - real-time value monitoring Interactive LCD interface: - utilising a high-definition function and rich user interface, with a 4.3-inch high-definition display. operation, which can display the current set output voltage/current, actual output voltage/current and real-time protection of the power supply output value. The functional interface is simple yet comprehensive, and easy to operate List/delay functions: - With list and delay setting functions, up to 2048 data sets can be set according to test requirements, and the number of cycles can reach 99999. It is used with waveform templates, which is very convenient for cyclic testing and loop testing. Parallel connection: - The serial-parallel connection between CH1 and CH2 of the main channel can be implemented without an external connection, which simplifies the connection and facilitates testing Extended interface for remote control: - Standard RS232 communication interface, Ethernet interface, digital I/O, and USB master and slave interfaces can be controlled via a remote connection to the RS232 host computer or USB32 software, or via RS232 host software. Control Technical parameters: - Model type: UDP3305 - Linear, programmable laboratory power supply, multi-channel - Number of channels: 4Ch - Display type: 4.3" LCD - supply voltage: 230 V AC>- output voltage: 230 V/A - CH1/CH2: 0 ~ 30V DC CH3: 0 ~ 6V DC CH4: 5V DC - output current: CH1/CH2: 0–5A CH3: 0–3A CH4: 2A - total output resolution: - 8 W output power - 8 W 1mV - output current resolution: 1mA - voltage stabilisation: ≤0.03% + 10 mV - current stability: ≤0.2% + 5mA - Interface: USB device, RS-232, LAN, USB host, digital I/O - Dimensions: 6/24 mm - 1 x 24 mm Accessories supplied: power cable, USB 2.0 print cable - Shipping weight: 10.2 kg Manufacturer: UNI-T Link to download software for PC connection: https://instruments.uni-trend.com/products/dc-power-supplies/UDP3000S
