UNI-T T10 Temperature Probe
UT-T10K Temperature Probe
● Measurement range: -40°C to 260°C (40°F to 500°F)
● Accuracy: ±0.75%
● Features and application: used for the UT213 series, UT39C, UT204A, UT206, UT208, UT208A, UT107, UT109, UT133A
● Quantity: 1PC
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

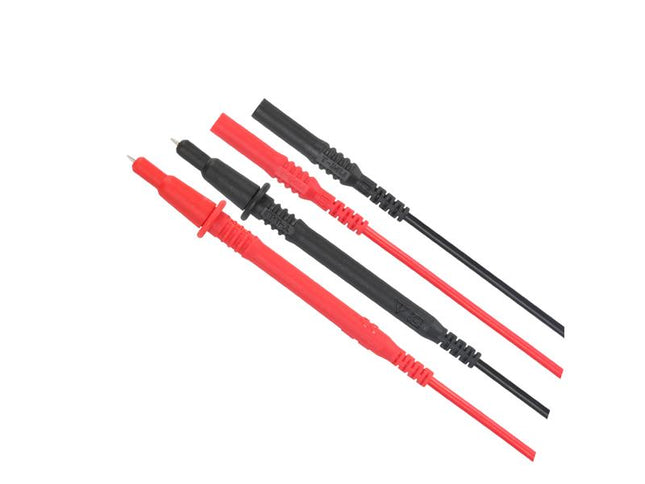

UNI-T L07 Test Probe - Set UT-L07 Test Probe - universal for multimeters
Technical specifications:
- length: test leads 1000 mm, probe length: 5 mm + 12 mm- probe tip length: 17 mm - double insulation class: 17 mm- Insulation class III 1000V 10A- application: multi-purpose connectors, all multimeters- operating temperature: -15 to 40 °C- packaging: 1 pair
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
UNI-T T03 Temperature Probe
Used to measure the temperature of liquids and semi-solids.
Probe length: 180mm
Cable length: 1000 mm
Measuring range: -50˚C ~ 600˚C (-50˚F ~ 1112˚F)
/en/
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
UNI-T T06 Temperature Probe
Designed for measuring flat and sloped surfaces. Suitable for measuring the temperature of hot drums and the surfaces of utensils.
Probe length: 125 mm
Cable length: 1000 mm
Measuring range: -50˚C to 500˚C (-50˚F to 932˚F)
/>/
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

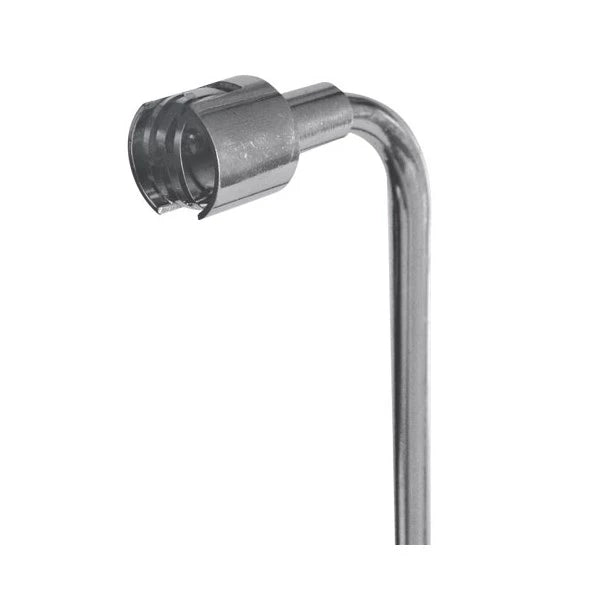

UNI-T T07 Temperature Probe
Designed for measuring flat and sloped surfaces. Suitable for measuring the temperature of hot drums and the surface of utensils.
Probe length: 200 mm
The probe is bent at 90˚
Cable length: 1000 mm
Measuring range: -50˚C ~ 500˚C (-50˚C ~ 500˚C (-50˚F ~ 93˚F) </2˚F/93/2
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

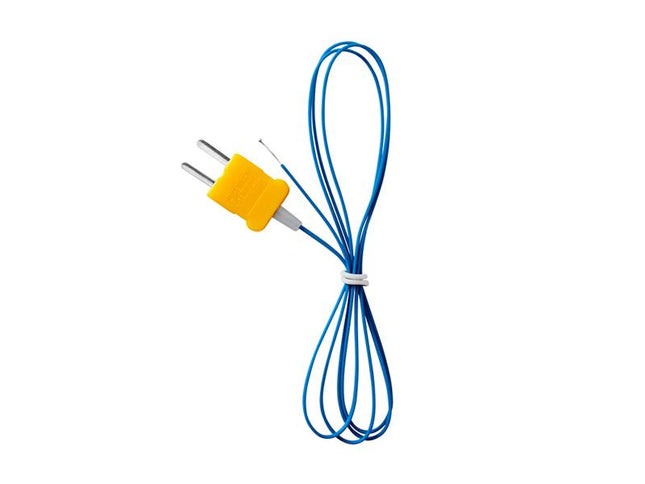

UNI-T T12 temperature probe UT-T12 temperature probe
- contact temperature probe (type K thermocouple)- adapter plug- 0°C to 800°C• accuracy ±0.4%
TRENDUNI- Manufacturer:
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

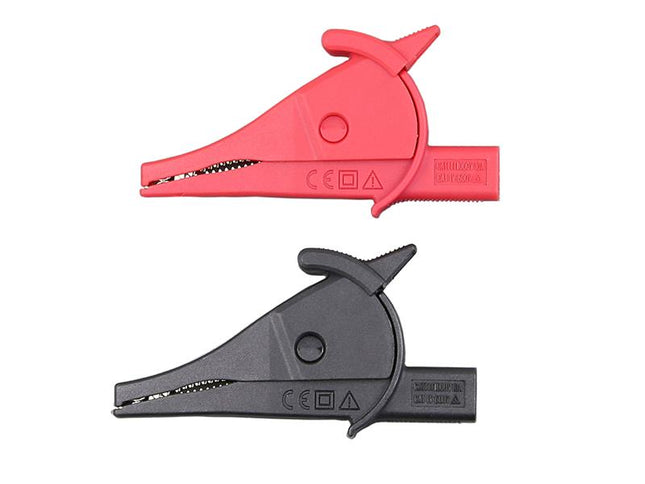

UNI-T C02A alligator clip set – red + black UNI-T UT-C02A Alligator clip
Technical specifications:
- length: 80 mm- max. opening: 36 mm- insulated with the option to connect to a standard banana plug- measurement category: CAT III 1000V / CAT IV 600V 10A- packaging: 1 pair
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

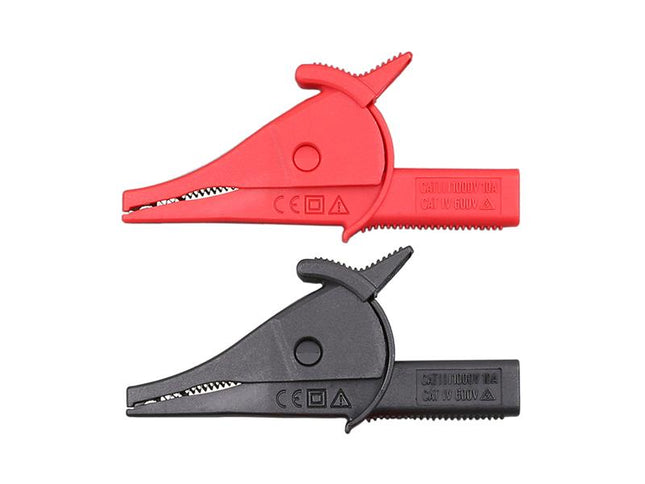

UNI-T C04A alligator clip set – red + black UNI-T UT-C04A Alligator clip
Technical specifications:
- length: 75 mm- max. opening: 27 mm- insulated with the option to connect to a standard banana plug- measurement category: CAT III 1000V / CAT IV 600V 10A- packaging: 1 pair
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

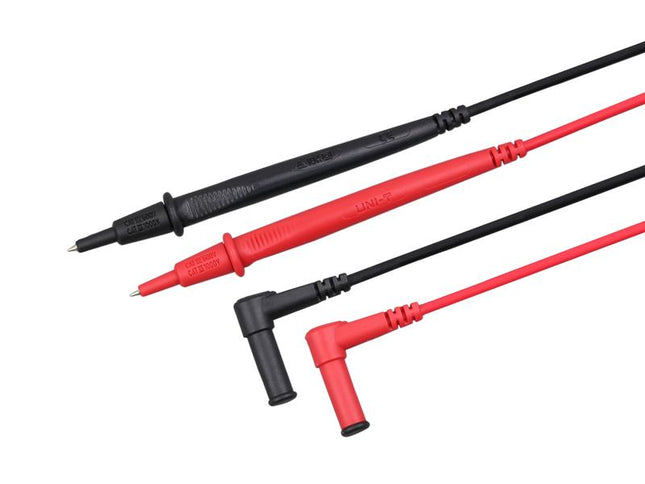

UNI-T L25 test lead set for UT132/139/213/216 UT-L25 Test leads – universal for multimeters
Technical specifications:
- length: test leads 900 mm- length: probe tip and body: 15 mm- double insulation, with removable cap- right-angle connection- measurement category: CAT III 1000V / CAT IV 600V 10A- use: multi-purpose connectors, all multimeters- packaging: 1 pair
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

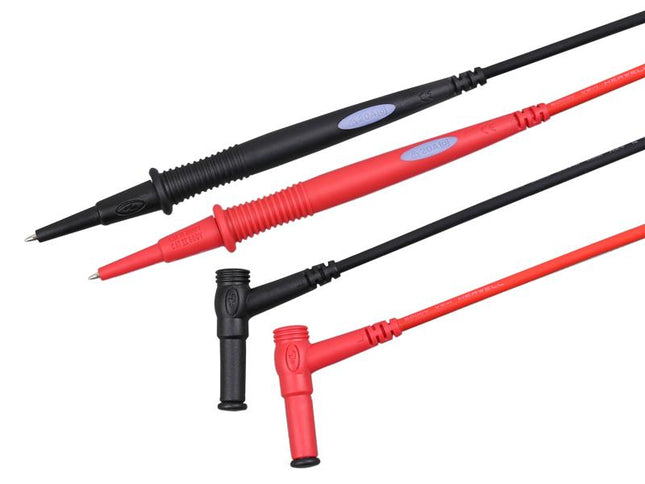

UNI-T L26 test lead set for UT171/181 UT-L26 Test leads – universal for multimeters
Technical specifications:
- length: test leads 900 mm- length: probe tip and body 136 mm – probe tip length1/> UL. 16AWG with double insulation and removable cap- Angled connection- measurement category: CAT III 1000V / CAT IV 600V 20A- use: multi-purpose connectors, all multimeters- packaging: 1 pair
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

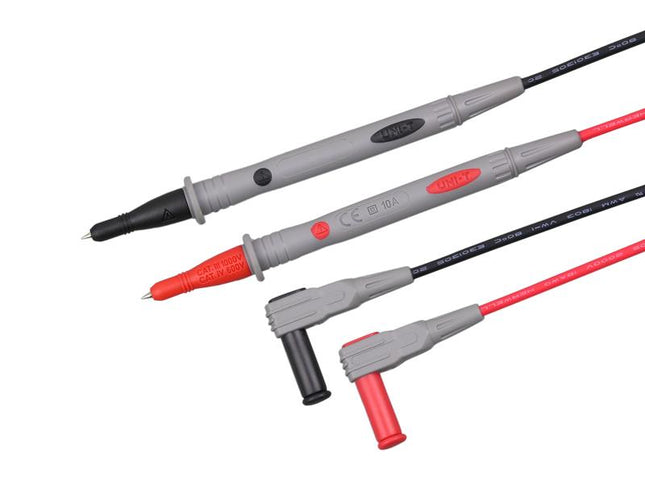

UNI-T L27 test lead set for UT71/81/800 – screw-type probes UT-L27 Test leads - universal for multimeters
Technical specifications:
- length: test leads 900 mm- Length: probe tip and body: 130 mm- UL 18AWG with double insulation and removable cap- right-angle connection- measurement category: CAT III 1000V / CAT IV 600V 10A- application: multi-purpose connectors, all multimeters- packaging: 1 pair
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

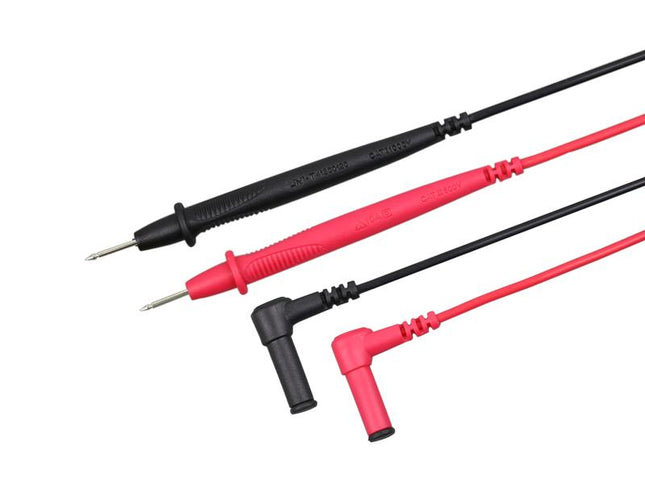

UNI-T L20 test lead set for UT33/UT58/T201 UT-L20 Test leads – universal for multimeters
Technical specifications:
- length: test leads 900 mm- Length of right-angle probe tip:
- CAT I 1000V / CAT II 600V 10A- application: multifunctional connectors, all multimeters- for the UT33, UT58, UT201, UT131 series- packaging: 1 pair
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
UNI-T L28 test lead set for UT171/181 UL 18AWG double-insulated test lead with detachable capCable length 900mmProbe and body length 130mmCAT III 1000V / CAT IV 600V 600V 10A for the UT117 series/>
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

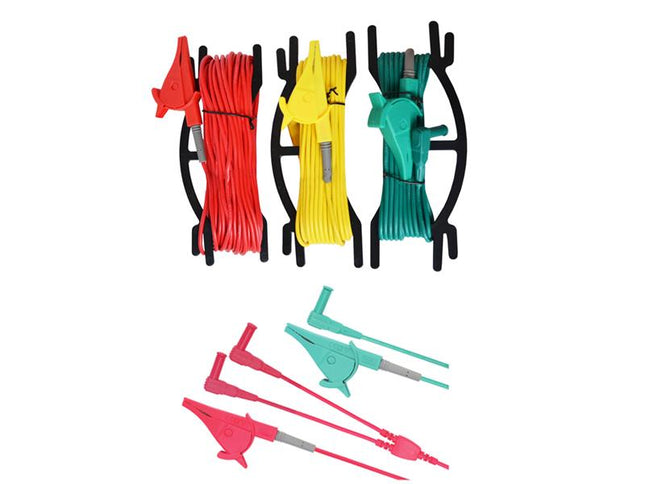

UNI-T L35 Test Lead Set for UT521/522/572 The item consists of:
1. 1.6 m test lead (green + red) – 1 pair 2. 5 m green test lead - 1 piece 3. 10 m yellow test lead - 1 piece4. 20 m red test lead - 1 piece
- Material: UL certified - Safety rating: CAT III 1000V/CAT IV 600V 10A - Suitable for: UT521, UT522, UT572
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

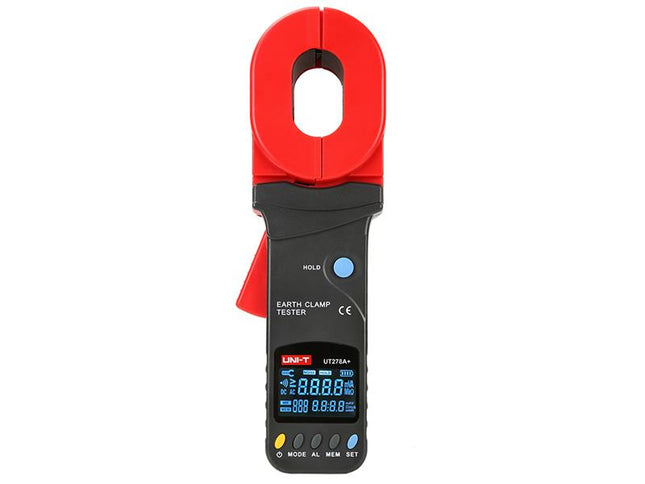

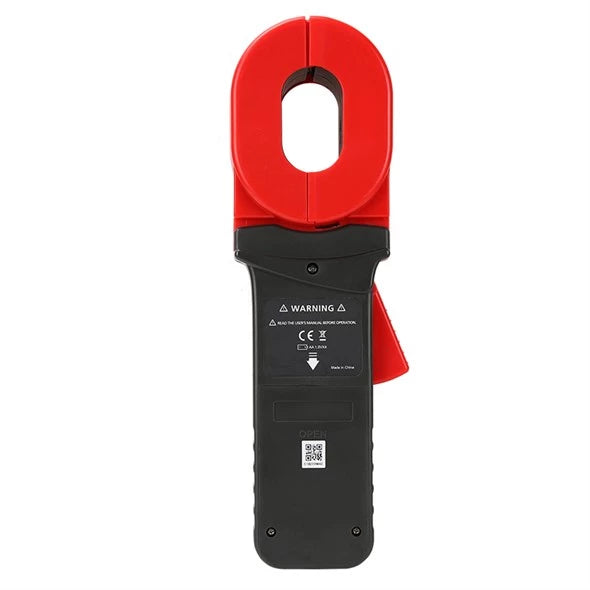

This product comes with a 3-year warranty. The UT278A+ from UNI-T is a clamp-on tester for earth resistance. Based on the principle of mutual induction, it can measure earth resistance without disconnecting the earth conductors and without auxiliary electrodes, in both multi-point and single-point earthing systems. Unlike a similar instrument, the UT276A+ has an extended earth loop resistance measurement range up to 1200Ω and can also measure earth loop leakage currents in the range from 0.00 mA to 20.0 A.
The tester is designed for professional use, with resistance to shock, dust and humidity, and is controlled by microprocessors, including for the precise identification of resistance and rapid filtering of interfering signals using advanced arithmetic methods. It is designed for measuring earthing systems in power stations, power distribution and telecommunications, oil fields, computer rooms, electromechanical installations and maintenance in industrial plants, wherever electricity is used as an industrial power source, or where it is necessary to check the earthing resistance of lightning arresters. The device measures earth loop resistance from 0.01 Ω to 1200 Ω with a resolution of 0.001 Ω and leakage currents from 0 to 20 A; the measured values are displayed on a four-digit backlit EBTN display (light-on-dark background) and, at the same time, up to 30 values can be stored in the internal memory. The unit is powered by four 1.5V alkaline batteries.
Manufactured in accordance with safety standard IEC 61010-1 (CAT III 300V, CAT IV 150V, pollution degree 2); IEC 61010-031.
Product specifications:
- earth loop resistance measurement range: 0 to 1200Ω
- resolution 0.001 Ω
- Earth loop leakage current measurement range: resolution 0 to
-0.01 mA
- automatic range selection
- 4-digit EBTN display
- Simultaneous display of resistance and current on a single screen
- Resistance limit setting with audible indication of exceedance
- Filtering of interfering signals
- High reliability and durability, dual resistance calibration
automatic
- Resistance/insulation
Capacity to store up to 300 sets of measured data
- Powered by 4 x 1.5V AA alkaline batteries
- low battery indicator
Technical parameters:
- Measurement method: mutual induction
- Earth loop resistance measurement range at a resolution of 1/2000Ω
Earth loop resistance measurement accuracy:
in the 0.01 to 0.099 Ω sub-range: 0.001Ω ± (1% + 0.01Ω)
in the sub-range 0.1 to 0.99 Ω: 0.01 Ω ± (1% + 0.01 Ω)
in the sub-range 0.1 to 0.99 Ω: 0.1 Ω ± (1% + 0.1 Ω)
in the 50 to 99.5 Ω sub-range: 0.5 Ω ± (1.5% + 0.5 Ω)
in the sub-range 100 to 199 Ω: 1 Ω ± (2% + 1 Ω)
in the sub-range: 3 Ω ± 20 Ω: -3 Ω) (5% + 5 Ω)
in the secondary range from 400 to 590 Ω: 10 Ω ± (10% + 10 Ω)
in the secondary range from 600 to 880 Ω: 20 Ω ± (20% + 20 Ω)
in the secondary range from 900% to ±: +200Ω (2300Ω) 30Ω)
- resolution and accuracy of measurements of currents flowing through the ground loop:
in the sub-range 0.00 mA to 9.95 mA: 0.01 mA ± (2.5% + 1 mA)
in the sub-range 10.0 mA to 9.95 mA: 90.0 mA to 9.95 mA: 5 mA)
in the secondary range 100 mA to 300 mA: 1 mA ± (2.5% + 10 mA)
in the secondary range 0.3A to 2.99A: 0.01A ± (2.5% + 0.1A)
in the secondary range 0.3A to 2.99A:
in the secondary range: 0.3–1A: (2.5% + 0.3A)
in the sub-range 10.0A to 20.0A: 0.1A ± (2.5% + 0.5A)
- EBTN display dimensions: 47 x 28.5 mm
- Measurement frequency: 2x/sec - Simultaneous resistance
with clamp
- Simultaneous display on screen
opening: 32 x 55 mm
- Interference signal filter: yes
- visual and audible alarm: yes
- range overlap indication: yes, symbols ‘OL Ω’, ‘L0.01Ω’, ‘OL A’
- indication of excessive interference currents: yes, “Noise”, symbol for data storage
-0.01Ω, power supply: 6V (4 x 1.5 V AA (LR6) batteries)
- current consumption: max. 50mA
- low battery indication: yes
- automatic switch-off: yes, after 5 minutes
- Sheath insulation resistance: more than 20MΩ (500V between circuit and housing)
- voltage resistance: 3700V / RMS AC (between circuit and housing)
- maximum 40 mA external magnetic field
field: <1V/m
- Category: CAT III 300V, CAT IV 150V (IEC61010-1)
- Operating ambient temperature and relative humidity: 23 °C ± 5 °C, humidity <75%
- Tester dimensions L x W x H: 285 x 8 mm Tester weight: 1 x 1 x 1 g
(including batteries)
Contents of individual package:
- UT278A+ tester: 1 pc
- 1Ω and 10Ω test loops (calibration): 1 pc
- 1.5 V / AA (LR6) battery: 4 pcs.
>
Standard packaging quantities per box: 1 pc
- Standard box dimensions: 370 x 110 x 300 mm
- total weight of the box: 2.6 kg
