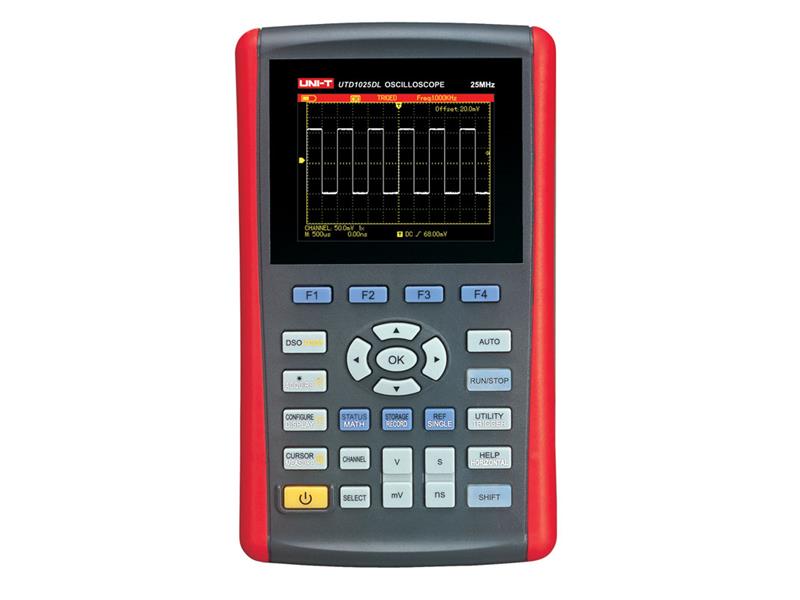

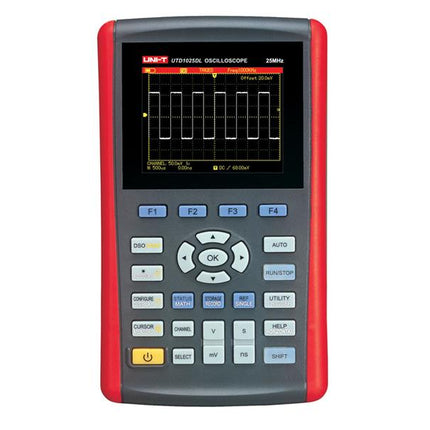

UNI-T UTD1025DL Oscilloscope
The UTD1000DL series portable digital storage oscilloscope is a 2-channel portable device. It also has a bandwidth of 25 MHz and a sampling rate of 250 MS/s. It offers a simple, functional front panel, allowing you to perform all basic measurements and procedures without having to reach round to the back of the device. Use the AUTO button to make quick settings. Software for connecting to a PC can be downloaded from the manufacturer’s website:
https://instruments.uni-trend.com/list_184/1059.html
SPECIFICATIONS (oscilloscope):
Channels 2
Bandwidth 25MHz
Sampling rate
MS/Sampling rate <200 <14 ns
Memory depth 12 kps
Vertical sensitivity 5 mV/div ~ 20 V/div
Time base 10 ns/div ~ 50 s/div
Save: bitmap, configuration, waveform
Trigger modes: edge, communication interface,
mini, communication interface
USB
SPECIFICATIONS (multimeter):
DC voltage 400mV/4V/40V/400V ±(1%+5)
AC voltage 400mV/4V/40V/400V ±(1.2%+5)
DC current: 4000 μA ±(1.2% + 5), 40 mA, 4000 mA ±(1% + 5), 10 A ±(1.5% + 5)
AC current 400μA, 4000μA ±(2%+5), 40mA, 4000mA ±(1.5%+5), (15%+5)
resistance 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ ±(1.2%+5), 40MΩ ±(1.5%+5)
Capacitance 51.20nF, 512nF, 5.120uF, 51.20uF+51.20uF, +-1.00uF, +-1. 4000
GENERAL CHARACTERISTICS:
Dimensions: 199 mm x 118 mm x 49 mm
Weight: 0.9 kg
LCD size: 3.5", 320x240
Power: 100–240 V<br/60 A, 50/60 Hz Accessories: DC adapter, test leads, 1x/10x OSC probe, 10 A current divider, power cable, USB cable
Manufacturer: UNI-TREND
