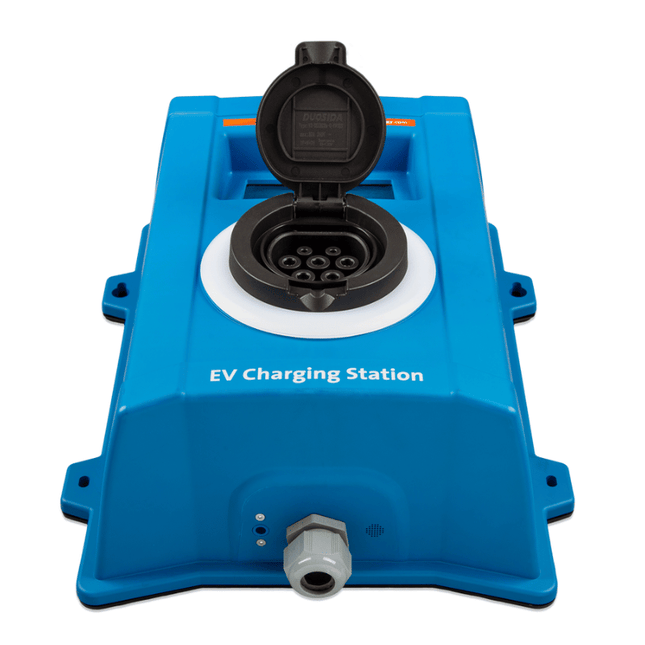

High-power electric vehicle charging station
The EV Charging Station has three-phase and single-phase capabilities. It supplies a maximum of
22 kW in three-phase operation or 7.3 kW in single-phase operation.
WiFi communication
WiFi: 802.11 b/g/n for configuration, monitoring and control. The internal WiFi module can be configured in Access Point mode or Station mode
for both initial configuration and monitoring.
Easy operation and control via Bluetooth and the VictronConnect app
Get complete control and an overview of all operating parameters and session statistics at a glance.
Touchscreen LCD
Built-in 4.3-inch LCD touchscreen for monitoring and control.
Light ring for quick device status view
Fully programmable RGB light ring around the charging port, for quick determination of the device’s status. Can be programmed via
the integrated web interface to display different lighting effects depending on the current status (off, charging, charged, etc.).
Three operating modes available:
1. Manual mode for configuring the output current
Manual mode allows an output current to be set between 6 and 32 A. The charging power is controlled in two
ways: using the slider on the LCD touchscreen or via the web page. It allows manual start or stop
the charging process when a vehicle is connected to the charging station.
2. Automatic mode to ensure maximum efficiency of the photovoltaic system
It detects when excess power is available and uses only the power required to
charging the vehicle.
3. Scheduled mode for charging an electric vehicle at specific times
A fully programmable controller allows charging at different times, such as specific hours
the night, when grid energy is cheaper.
Integration with GX and VRM devices
Control and monitor the EV Charging Station via the GX device’s touchscreen, the remote console and the VRM portal. The VRM portal
provides real-time and customised reports for configurable time periods.
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

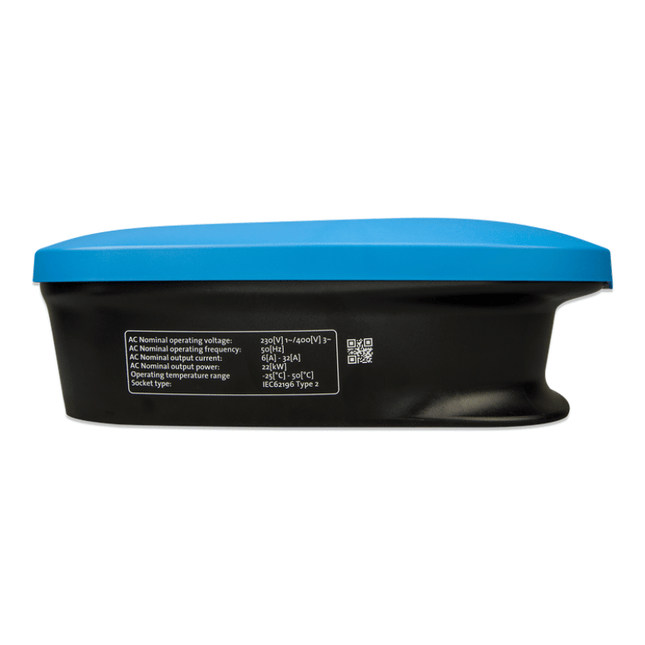

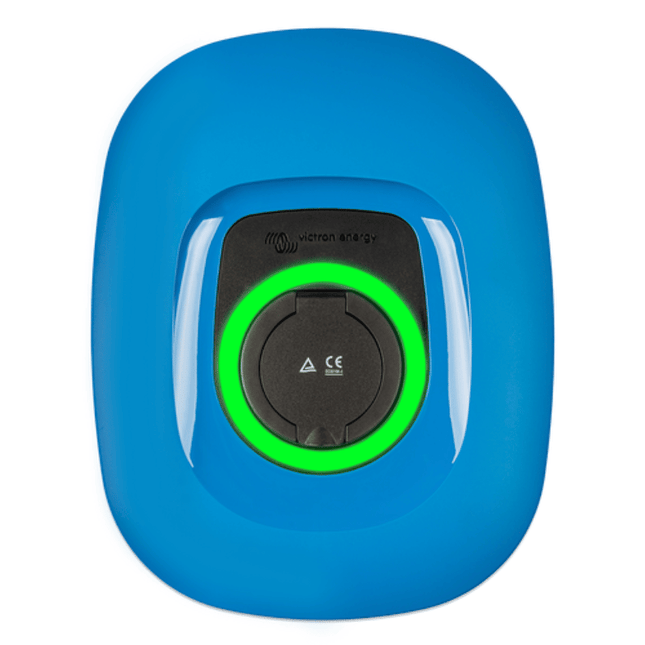

High-power electric vehicle charging station
The EV Charging Station NS (NS electric vehicle charging station) supports both three-phase and single-phase operation. It supplies
up to 22 kW in three-phase operation or 7.3 kW in single-phase. It has a blue front panel. A white or black front panel can be purchased separately.
WiFi communication
WiFi: 802.11 b/g/n for configuration, monitoring and control. The internal WiFi module can be configured in Access Point mode or in
Station mode for both initial configuration and monitoring.
Easy operation and control via Bluetooth and the VictronConnect app
Get full control and an overview of all operating parameters and session statistics at a glance.
Light ring for quick device status overview
Fully programmable RGB light ring around the charging port, for quick determination of the device’s status. Can be programmed via
the integrated web interface to display different lighting effects depending on the current status (off, charging, charged, etc.).
Three operating modes available:
1. Manual mode for configuring the output current
Manual mode allows an output current to be set between 6 – 32 A. The charging power can be adjusted in
various ways: via the web interface, from a GX and VRM device, and via VictronConnect. It allows the
manually stopping the charging process when a vehicle is connected to the charging station.
2. Automatic mode to ensure maximum efficiency of the photovoltaic system
It detects when excess power is available and uses only the power required to
charging the vehicle.
3. Scheduled mode to charge an electric vehicle at specific times
A fully programmable controller allows charging at different times, such as specific hours
the night, when grid energy is cheaper.
Integration with GX and VRM devices
Control and monitor the NS EV Charging Station via the GX device’s touchscreen, the remote console and the VRM portal. The
VRM portal provides real-time and customised reports for configurable time periods.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

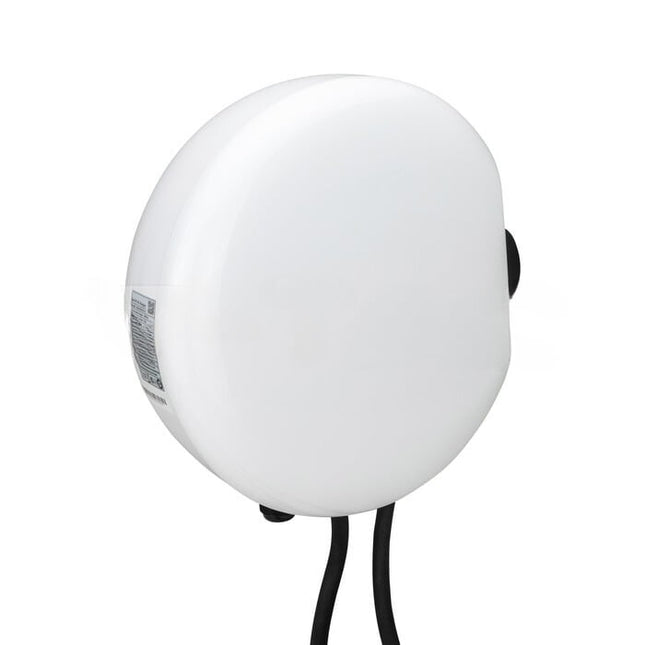

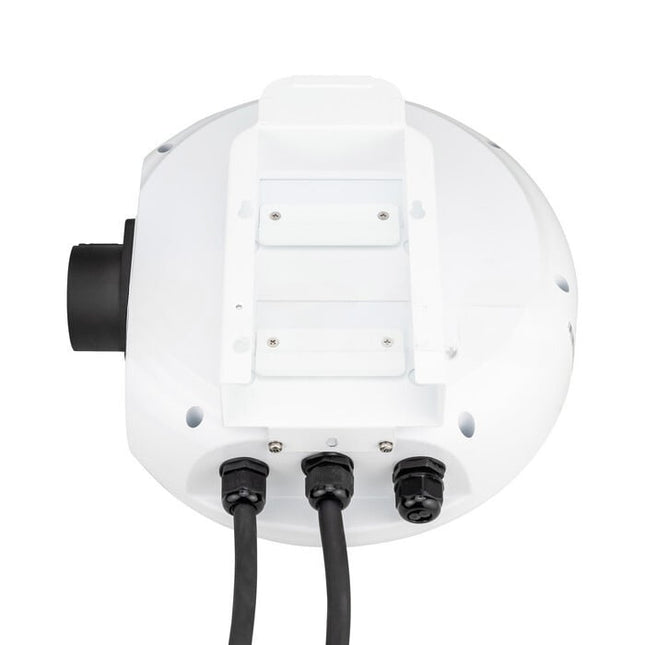

Optimal Performance and Flexibility: The Sinexcel IZAR charging station offers an efficient and powerful solution for charging electric vehicles, with a rated power of 7kW. It supports a single-phase input voltage of 230V and a current of 6–32A, making it ideal for residential use. The included 5m cable offers increased flexibility in various installation scenarios.
Durable and Safe Design: With an IP65 and IK10 protection rating, the station is designed to withstand harsh outdoor conditions, including protection against dust and water ingress. It features a built-in Type A+DC 6mA residual current device (RCD) for added safety.
Advanced Technology: The station utilises cutting-edge technology, including an optional MID meter for consumption measurement and multiple authorisation options, such as NFC/RFID (optional), ‘Plug and Charge’, and app control. It supports the OCPP 1.6J communication protocol, upgradeable to 2.0, and can connect via LAN, Wi-Fi or 4G (optional), offering versatility in charging management and monitoring.
Security and Management Features: The station incorporates advanced cybersecurity features and enables remote management, diagnostics, configuration, maintenance and updates via the Sinexcel platform. It also allows user authorisation management via the Sinexcel AC APP.
Simple and Intuitive Installation: The station is easy to install and comes equipped with all the necessary installation accessories, including anti-theft screws and cable ties.
Durability and Certifications: The product complies with European standards and is CE, TR25, TUV Mark and RCM certified. It is built to operate in temperatures ranging from -30 ℃ to +55 ℃ and can function at altitudes of up to 2000m.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

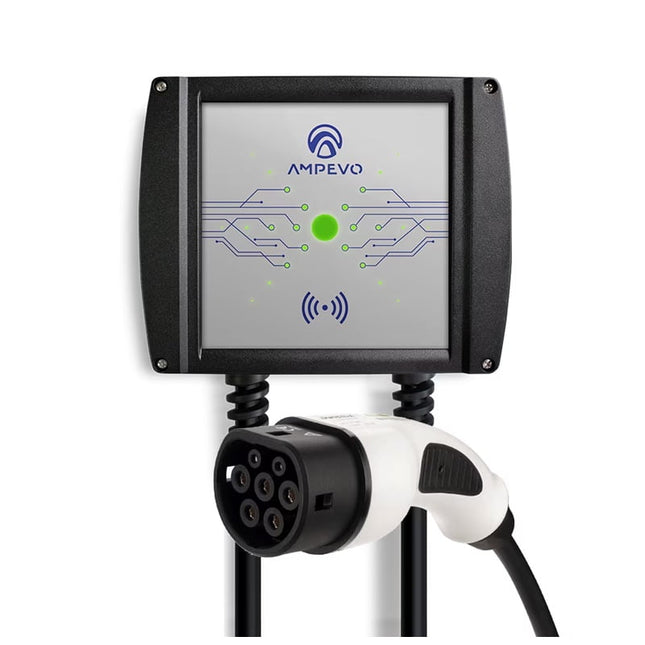

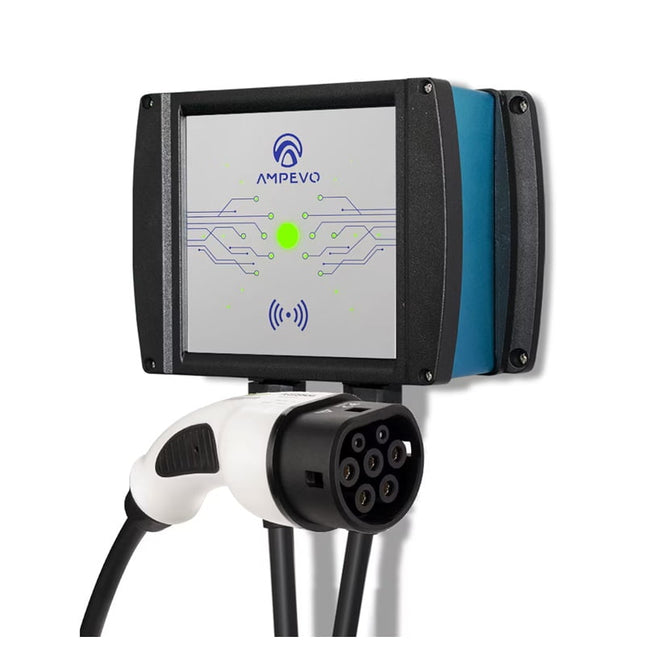

Electric vehicle charging station, 22 kW, three-phase, 32A, 400VAC ± 10% power supply, Type 2 cable, LEDs indicating charging status, 50Hz frequency, IP65 weatherproofing, IK10 vandal-proofing, dimensions 170x210x105mm, aluminium housing.
Management and access via Android & iOS mobile app, Bluetooth, option to configure the charging current via the app and set any value within the range of 8A – 32A.
The station includes AC 30mA + DC 6mA electronic residual current protection and two RFID cards.
Product manufactured in ROMANIA
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
Electric vehicle charging station, 22 kW, three-phase, 32A, 400VAC ± 10% power supply, Type 2 cable, LEDs indicating charging status, 50Hz frequency, IP65 weatherproofing, IK10 vandal-proofing, dimensions 170x210x105mm, aluminium housing.
Management and access via Android & iOS mobile app, Bluetooth, option to configure the charging current via the app and set any value within the range of 8A – 32A.
The station includes electronic differential protection: AC 30mA + DC 6mA.
Product manufactured in ROMANIA
