UNI-T Function Generators

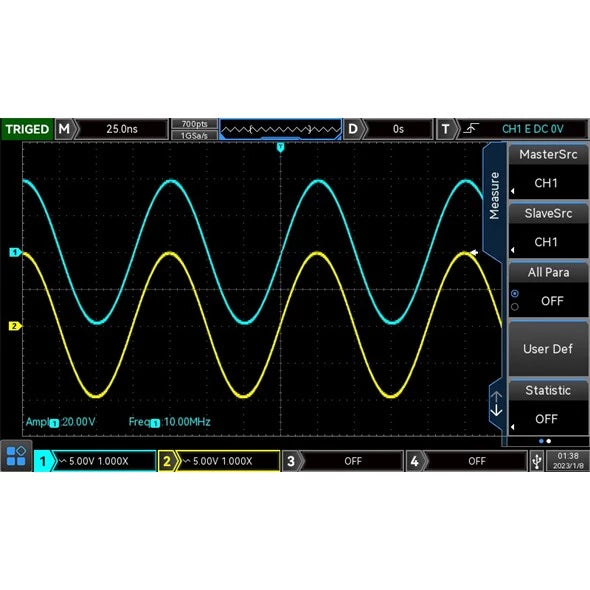

This product comes with a 3-year warranty. The UTG1022X function generator from the UTG1000X series features a precise and stable output waveform with a resolution of up to 1 μHz. It is an economical, high-performance, multifunctional arbitrary waveform generator. It can generate precise, stable and clean output signals with low distortion. With convenient operation, excellent technical specifications and an easy-to-use graphical display, it is a multifunctional device that meets the needs of learning, testing and manufacturing. The generator is expected to be used in the teaching, design, testing, debugging and repair of electronic and electro-acoustic devices; testing of semiconductor components, etc. Product specifications: - dual-channel system with equal power - Simultaneously provides two high-power channels. High output amplitude is still guaranteed even at high frequencies - Can generate a square wave up to 10MHz - High signal-to-noise ratio - Optional power amplifier module: The PA model is equipped with a standard power amplifier module, which can provide a maximum 4W waveform signal to meet the testing requirements of certain pulse generators with three pulse generation functions/n-Offer. methods, allowing for more flexible generation of various pulse trains - Multiple modulation modes: Offers seven analogue and digital modulation methods—AM, FM, PM, FSK, ASK, PSK and PWM—enabling the use of multiple fields - Sweep function: supports two frequency sweep methods: ‘linear’ and ‘logarithmic/s2000br/MS-/sweep’ 16-bit vertical resolution - Multifunction button and numeric keypad for easy operation Technical specifications: - Maximum waveform frequency: 20 MHz - Supply voltage: 220–240 V AC / 50 Hz - Waveform - 1 µHz... 1 µHz... 10 MHz (pulse waveform), 1 µHz... 10 MHz (square waveform), 1 µHz... 20 MHz (sinusoidal waveform), 1 µHz... 400 kHz (ramp waveform) - display type: 4.3" TFT LCD - display: 4.3" TFT LCD, 2.7" diagonal - number of channels: 2 - vertical resolution: 16 bits - memory depth: 4 kpts - output parameters: impedance: 50Ω - dimensions: 215 x 103 x 316 mm - interface: USB -, modulation type: USB , FSK, PM, PSK, AM, PWM - waveforms: arbitrary, square, DC, pulse, ramp, sinusoidal, noise - sampling rate: 200 MSa/s - memory: 200 waveforms Package contents: - BNC-BNC cable - BNC cable - Alligator clip cable - USB cable - Power clip - Cable Manufacturer: UNI-TREND

Leggere Di più Meno

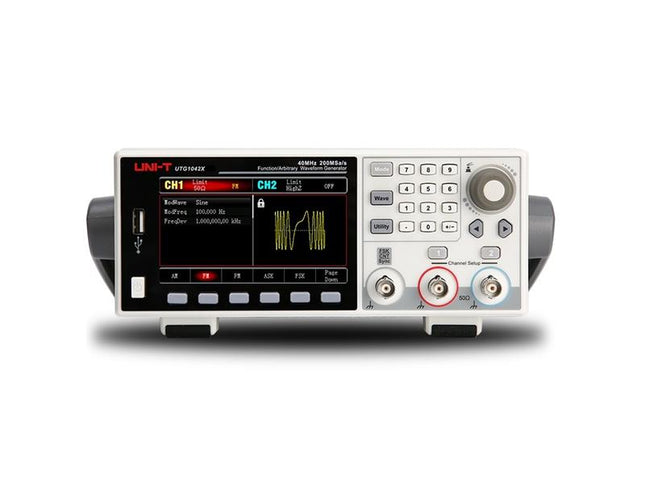

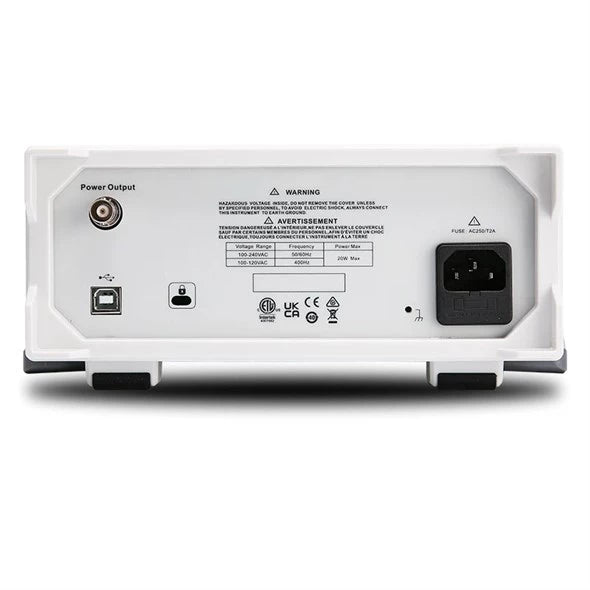

This product comes with a 3-year warranty. The UTG1042X function generator from the UTG1000X series features a precise and stable output waveform with a resolution of up to 1 μHz. It is an economical, high-performance, multifunctional arbitrary waveform generator. It can generate precise, stable and clean output signals with low distortion. With convenient operation, excellent technical specifications and an easy-to-use graphical display, it is a multifunctional device that meets the needs of learning, testing and manufacturing. The generator is expected to be used in the teaching, design, testing, debugging and repair of electronic and electro-acoustic devices; testing of semiconductor components, etc. Product specifications: - dual-channel system with equal power - Simultaneously provides two high-power channels. High output amplitude is still guaranteed even at high frequencies - Can generate a square wave up to 10MHz - High signal-to-noise ratio - Optional power amplifier module: The PA model is equipped with a standard power amplifier module, which can provide a maximum 4W waveform signal to meet the testing requirements of certain pulse generators with three pulse generation functions/n-Offer. methods, allowing for more flexible generation of various pulse trains - Multiple modulation modes: Offers seven analogue and digital modulation methods—AM, FM, PM, FSK, ASK, PSK and PWM—enabling the use of multiple fields - Sweep function: supports two frequency sweep methods: ‘linear’ and ‘logarithmic/s2000br/MS-/sweep’ 16-bit vertical resolution - Multifunction button and numeric keypad for easy operation Technical specifications: - Maximum waveform frequency: 40 MHz - Supply voltage: 220–240 V AC / 50 Hz - Waveform: 1 µHz...20 MHz (pulse waveform), 1 µHz...20 MHz (square waveform), 1 µHz...40 MHz (sinusoidal waveform) - Display type: 4.3" TFT LCD - Display: 4.3" TFT LCD, 480 x 272 pixels - Vertical channel resolution - 2 pixels 16 bits - memory depth: 4 kpts - output parameters: impedance: 50Ω - dimensions: 215 x 103 x 316 mm - interface: USB - modulation type: AM, ASK, FM, FSK, PM, PSK, square wave ramp - PWM, square wave ramp - sinusoidal PWM, noise - sampling rate: 200 MSa/s - memory: 200 waveforms Package contents: - BNC-BNC cable - BNC cable - alligator clip - USB cable - Power cable UNIu-TRENDr: MAN

Leggere Di più Meno

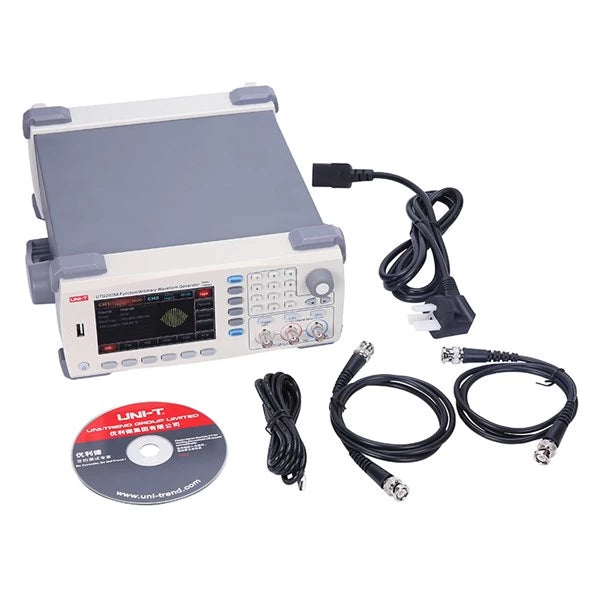

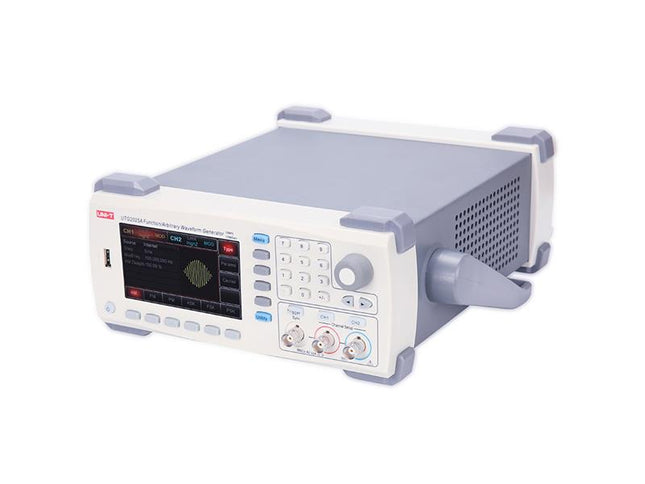

UNI-T UTG2025A Function Generator This product comes with a 3-year warranty. The UTG2025A arbitrary waveform generator is a modern dual-channel generator that utilises direct digital synthesis technology to produce a precise and stable arbitrary waveform output with a resolution of 1μHz. Signal modulation is available with various modulation types, such as AM, PM, FM, ASK, FSK, etc., from an internal or external source, as well as linear and logarithmic sweep. The panel is ergonomically designed for easy operation. The generator is intended for use in the design, testing, debugging and repair of electronic and electroacoustic devices, such as circuits and test equipment in cellular and wireless systems, radio, television and radio systems; testing of semiconductor components, etc. Thanks to DDS technology, it is capable of generating precise and clear signals with minimal distortion. An easy-to-use panel with simple operation and a clear display allows you to work much more efficiently and quickly. It features a USB interface and powerful software for data transfer to a computer. It offers excellent value for money and a range of features. Product specifications: - dual-channel generator - 2 equivalent, independent channels - DDS digital signal synthesis - generation of sinusoidal signals with a frequency of 1μHz to 25 MHz and a square-wave signal generation frequency - 25 MHz, 1 μHz to 5 MHz - generation of other waveforms (sinusoidal, square, ramp, triangle, pulse, noise, DC, arbitrary) - signal modulation types: AM, FM, PM, ASK, FSK, PSK, PWM from internal and external sources - support for manual triggering of sweep and burst signals /- supports manual output /> High-precision 6-bit frequency measurement of TTL-compatible external signals up to 200 MHz - Signal output amplitude up to 10 Vpp at 50 Ω impedance or up to 20 Vpp in high-impedance mode - 125 M/s sampling rate and 14-bit vertical resolution - USB interface capable of storing up to 16 variable digital waveform groups - Front panel for waveform input - USB Host interface on the rear panel, powerful PC software - LAN connector on the rear panel for firmware updates - Multifunction button and numeric keypad for easy operation - System help - 4.3" high-resolution colour TFT LCD display Technical channel parameters:- /> 2 - sampling rate: 125 MS/s - Output frequency: up to 25 MHz - Frequency resolution: 1 μHz - vertical resolution: 14 bits - memory depth: 8 kpts - wavelength of any waveform: 8 pts ~ 8 kpts signal types - Frequencies generated by br/> sinusoidal: from 1μHz to 25MHz rectangular: from 1μHz to 5MHz ramp (sawtooth): from 1μHz to 400kHz pulse: from 1μHz to 5MHz any: from 1 μHz to 5 MHz noise /5 MHz -/25 MHz amplitude range: 1 mVpp to 10 Vpp (50 Ω), 2 mVpp to 20 Vpp (High Z) - modulation types: AM, FM, PM, ASK, FSK, PSK, PWM, Sweep - frequency measurement of TTL-compatible signals: yes, within the 1000 MHz range - accuracy of 1000 MHz ppm - output impedance: adjustable from 1Ω to 1kΩ, or High Z, factory setting 50Ω - Output short-circuit protection: yes - total distortion at 20kHz, 1Vpp (typical value): <0.2% - ageing coefficient in the first year - 1 ppm. 0.5 ppm/°C - Temperature coefficient: ＜ 2 ppm/°C - Display: 4.3" diagonal TFT LCD, WVGA (480 x 272 pixels) - USB device interface: yes - Power supply: AC 100 V to 240 V, 50 Hz, 60 Hz - power consumption: <40W - Protection: 250 V fuse, T2 A - Weight: 3.2 kg - Dimensions: 265 x 110 x 320 mm - Product colour: white and grey Contents of individual package:-5 UTG/Generator: 1 pc - Power cable: 1 pc - USB interface cable: 1 pc - BNC-BNC cable: 2 pcs - PC software CD: 1 pc - Manual in Czech and English: 1 pc Packaging for wholesale customers: standard carton quantities: - 2 pcs. 380 x 330 x 320 mm - Gross weight of the box: approx. 8.5 kg MANUFACTURER: UNI-TREND

Leggere Di più Meno

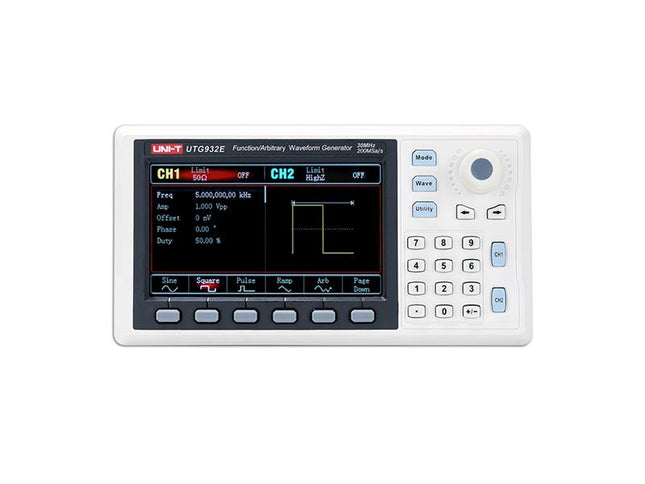

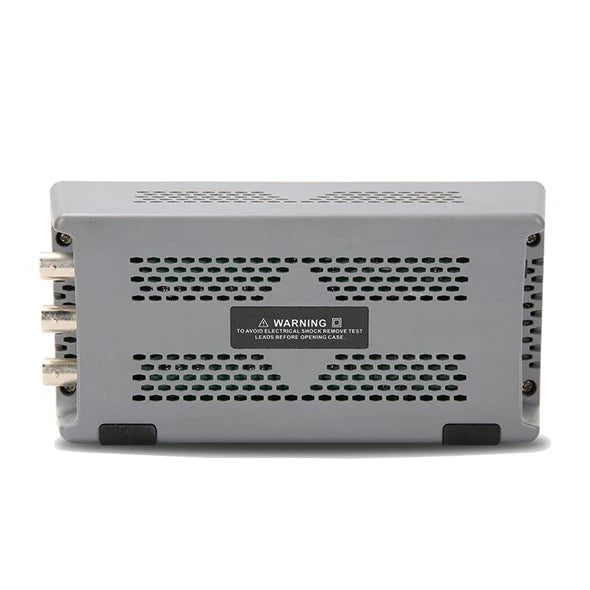

This product comes with a 3-year warranty. The UTG932E function generator (arbitrary waveform) from the UTG900E series is a dual-channel generator that utilises direct digital synthesis technology to produce a precise and stable arbitrary waveform signal, with a resolution of 1 μHz and low distortion. Signal modulation with various modulation types, such as AM, PM, FM, FSK etc., from an internal or external source, is available with linear and logarithmic frequency. The generator is miniature in size – it fits in the palm of your hand – yet is high-performance with excellent technical specifications, whilst remaining cost-effective; the generator panel is ergonomically designed for ease of use. The 4.3-inch TFT LCD graphic display will allow you to work much more efficiently and quickly. The generator is intended for use in teaching, design, testing, troubleshooting and repair of electronic and electroacoustic devices; testing of semiconductor components, etc. It features a USB interface and powerful software for data transfer to a computer. It offers excellent value for money and a range of functions. Product specifications: - dual-channel generator with DDS digital signal synthesis - generation of sinusoidal signals with a frequency ranging from 1μHz to 30MHz - generation of square-wave signals with a variable frequency of 1/1μHz /15 MHz waveforms (sine, square, triangular, pulse, noise, DC, any) - signal modulation types: AM, FM, PM, FSK from internal and external sources - support for frequency-swept signal output - supports internal/external/manual triggering - High-precision 6-bit measurement of external signals compatible with frequencies from 10 mHz to 100 MHz - output signal amplitude up to 10Vpp at 50Ω impedance or up to 20Vpp in high-impedance mode - 200 MSa/s sampling rate and 14-bit vertical resolution - storage of random waveforms up to 4 kpts in length, independent of the saved waveform points from 24 types of power sources from the factory - USB interface with powerful PC software - Multifunction button and numeric keypad for easy operation - System help - 109 mm (4.3 inch) diagonal TFT LCD colour display, 480 x 272 pixels Technical parameters :> Output frequency: 200 MSa/s - Output frequency: up to 30 MHz - Frequency resolution: 1 μHz - Vertical resolution: 14 bits - memory depth: 8 kpts - types and frequencies of generated signals: sine wave: from 1 μHz to 3 μHz approx. 15 MHz ramp (sawtooth): from 1μHz to 400kHz pulse: from 1 μHz to 15 MHz any: from 1μHz to 10MHz Gaussian white noise: 30 MHz DC signal offset (AC+V peak): (AC+V peak): (AC+V peak) resistance) - minimum signal rise/fall time: typically < 20 ns - amplitude range for signals ≤ 10 MHz: 1 mVpp to 10 Vpp; (50 Ω) - Amplitude range for signals ≤ 60 MHz: 1 mVpp to 5 Vpp; (50 Ω) - modulation types: AM, FM, PM, FSK, Sweep - output impedance: adjustable from 1Ω to 1kΩ, or High Z - factory-set impedance: High Z - output short-circuit protection: yes - Total harmonic distortion (for DC to 20 kHz, 1 Vpp, typical): <0.2% - Accuracy over 90 days: ±50 ppm (18°C to 28°C) - accuracy over 1 year: ±100 ppm (18°C to 28°C), with LCD display of 3°C to 28°C, diagonal - 480 x 272 pixels - USB device interface: yes - Power supply: DC 5V, 2A - Power consumption: max 10W - Cooling: natural - Operating ambient temperature: 0°C to +40°C - Operating ambient humidity: < +30°C, ≤ 60% RH - operating altitude: max 2000m - Weight (net): 0.33 kg - weight (gross): 0.77 kg - Dimensions: 172 x 90 x 68 mm Individual packaging: - UTG932E: 1 pc - AC/100–240V to DC/5V/2A power adapter: 1 pc - USB interface cable (UT-D14): 1 pc - BNC-alligator clip cable (UT-L02): 1 pc - BNC-UT-BL41 user cable (UT-D14): 1 pc. Manual: 1 pc. MANUFACTURER: UNI-TREND

Leggere Di più Meno

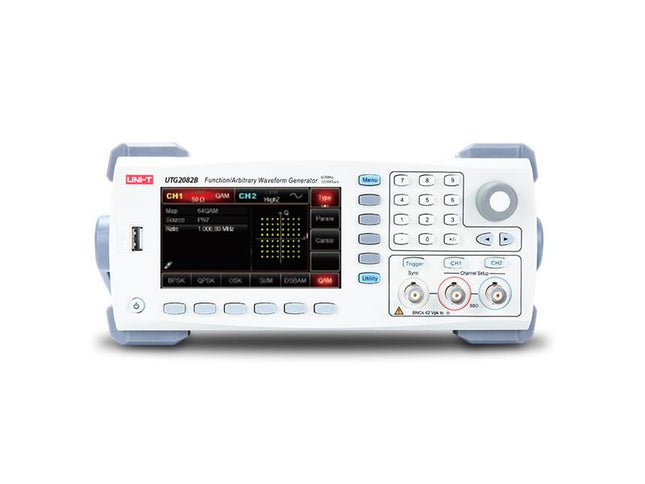

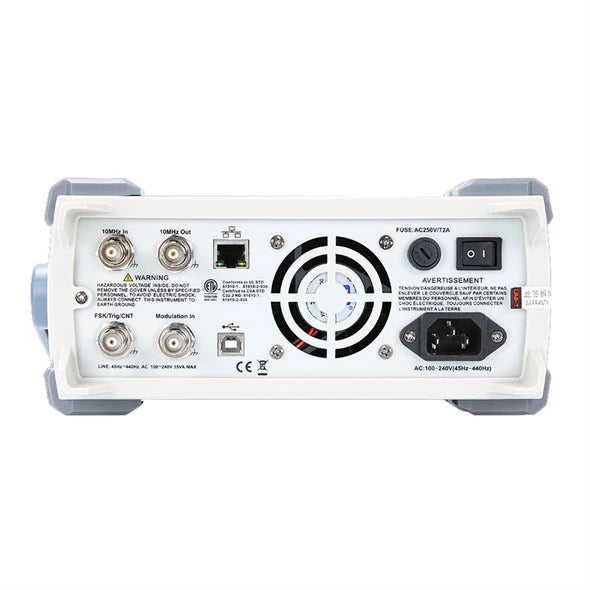

This product comes with a 3-year warranty. Function/Arbitrary Waveform Generator The UTG2082B is an advanced dual-channel generator that utilises direct digital synthesis technology to produce a precise and stable arbitrary waveform output with a resolution of 1μHz, a maximum output frequency of 80MHz, and a sampling rate of 320MS/s. Modulation of signals using various modulation types, such as AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM, Sweep etc., from an internal or external source, is available with linear and logarithmic sweep. The panel is ergonomically designed for easy operation. The generator is intended for use in the design, development, testing, debugging and repair of electronic and electroacoustic equipment, such as circuits and test equipment in cellular and wireless systems, radio and television systems; testing of semiconductor components, etc. Thanks to DDS technology, it is capable of generating precise and clean signals with minimal distortion. An easy-to-use panel with simple controls and a clear display allows you to work much more efficiently and quickly. It features a USB interface and powerful software for data transfer to a computer. More than 160 waveforms are stored in the non-volatile internal memory, e.g. mathematical, bioelectrical, medical, trigonometric, anti-trigonometric, automotive transient waveforms, etc. It offers excellent value for money and a range of functions. It can be used in university laboratories, research institutes, etc. This device meets the GB4793 safety requirements for electronic measuring instruments and the IEC 61010-1/2 safety standards, and complies with the CAT II 300V safety standards for isolated voltage when both channels are connected - DDS digital signal synthesis - Generation of sinusoidal signals with a frequency ranging from 1μHz to 80MHz - Generation of square-wave signals with a frequency range from 1μHz to 70MHz - Generation of various other waveforms (sine, square, any type of noise, ramp, triangle, pulse, AM - use of a modulation signal from an internal or external source - ability to enter the signal waveform using a mathematical formula - option to enter the signal phase in degrees or radians - supports both degrees and radians - supports output and burst signals - supports internal/external/manual triggering - High-precision 6-bit frequency measurement up to 200MHz for TTL-compatible external signals - Output signal amplitude up to 10Vpp at 50Ω impedance or up to 20Vpp in high-impedance mode - Terminal protection against overvoltage at 3/20M frequency/sampling 16-bit vertical resolution - Ability to store up to 16 groups of variable digital waveforms - Front-panel USB interface for waveform input - USB Host interface on the rear panel, powerful PC software - LAN connector on the rear panel for firmware updates - Multifunction button and numeric keypad for easy operation of the system with LCD display - 4.3" diagonal and WVGA resolution (480 x 272 pixels) Technical specifications: - Output channels: 2 - Sampling rate: 1.28 GS/s (interpolation), 320 MS/s (DDS mode) - Output frequency: - Output frequency: - 8 output frequencies: - 0 MHz 1 μHz - vertical resolution: 16 bits (including symbols, labels) - Waveform length: 8 pts to 16 Mpts - non-volatile memory: up to 160 groups of arbitrary waveforms can be stored - Types and frequencies of generated signals from 1μHz: to > sinusoidal: μzbr: / 80 MHz rectangular: from 1μHz to 70MHz ramp (sawtooth): from 1μHz to 4MHz pulse: from 1 μHz to 25 MHz any: from 1 μHz to 20 MHz Gaussian noise: up to 80MHz signal offset d-Bk) AC+DC): ± 5V (50 Ω), ± 10V (high resistance) - minimum rise/fall time of any signal: typically < 6 ns - amplitude range: 1 mVpp to 10 Vpp (50 Ω), 2 mVpp to 20 Vpp (High Z) , modulation types: PSK, AMSK, FSK, AMSK PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM, Sweep - operating modes: on/off output, continuous, modulation, sweep, serial - TTL-compatible signal frequency measurement: yes, in the range 100mHz – 200mHz, with a resolution of ±1ppm, with an accuracy of 5 ppm. digits/s - output impedance: adjustable from 1Ω to 1kΩ, or High Z, factory setting 50Ω - output short-circuit protection: yes - terminal protection against overvoltage: at input voltage >±12.0V, frequency <10kHz, amplitude >100mVpp at input overvoltage terminal protection against input overvoltage >±2.0V, frequency <10kHz, amplitude ≤100mVpp - total harmonic distortion 20kHz, 1Vpp (typical): <0.2% - accuracy: ± 0.5 ppm at 25°C - ageing rate in the first year - temperature coefficient: ± 1 ppm, 0.5 ppm/℃ - temperature coefficient: <2 ppm/°C - Display: 64K TFT LCD, 4.3" diagonal, WVGA (480 x 272 pixels) - USB device interface: yes - power supply: AC 100 V, 44 Hz, 40 V to 44 Hz II - power consumption: <50W - Protection: 250 V fuse, T2 A - Weight (net): 3.1 kg - Gross weight: 4.1 kg - Dimensions: 305 x 230 x 93 mm - Product colour: white and grey > > individual packaging > UTG2082B generator: 1 pc - Power cable: 1 pc. - USB interface cable: 1 pc 380 x 330 x 320 mm - gross weight of the box: approx. 8.5 kg MANUFACTURER: UNI-TREND

Leggere Di più Meno

This product comes with a 3-year warranty. Function/Arbitrary Waveform Generator The UTG2122B is an advanced dual-channel generator that utilises direct digital synthesis technology to produce a precise and stable arbitrary waveform output with a resolution of 1μHz, a maximum output frequency of 120 MHz/s, and a sampling rate of 320 MS/s. Signal modulation with various modulation types, such as AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM, Sweep etc., from an internal or external source, is available with linear and logarithmic sweep. The panel is ergonomically designed for easy operation. The generator is intended for use in the design, development, testing, debugging and repair of electronic and electroacoustic equipment, such as circuits and test equipment in cellular and wireless systems, radio and television systems; testing of semiconductor components, etc. Thanks to DDS technology, it is capable of generating precise and clean signals with minimal distortion. An easy-to-use panel with simple controls and a clear display allows you to work much more efficiently and quickly. It features a USB interface and powerful software for data transfer to a computer. More than 160 waveforms are stored in non-volatile internal memory, e.g. mathematical, bioelectrical, medical, trigonometric, anti-trigonometric, automotive transient waveforms, etc. It offers excellent value for money and a range of functions. It can be used in university laboratories, research institutes, etc. This device meets the GB4793 safety requirements for electronic measuring instruments and the IEC 61010-1/2 safety standards, and complies with the CAT II 300V safety standards for isolated voltage when both channels are connected- DDS digital signal synthesis- Generation of sinusoidal signals with a frequency ranging from 1μHz to 120MHz- Generation of square-wave signals with a frequency ranging from 1μHz to 80MHz- Generation of various other waveforms (sine, square, any type of noise, triangle, modulation, FM, any type of noise, triangle > PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM, Sweep- use of a modulation signal from an internal or external source- ability to enter the signal shape using a mathematical formula- option to enter the signal phase in degrees or radians - supports both degrees and radians- supports output and burst signals- supports internal/external/manual triggering- High-precision 6-bit frequency measurement up to 200MHz for TTL-compatible external signals- Output signal amplitude up to 10Vpp at 50Ω impedance or up to 20Vpp in high-impedance mode- Terminal protection against overvoltage at 3/20M frequency/sampling 16-bit vertical resolution- Ability to store up to 16 groups of variable digital waveforms- Front-panel USB interface for waveform input- USB Host interface on the rear panel, powerful PC software- LAN connector on the rear panel for firmware updates- Multifunction button and numeric keypad for easy operation of the system with LCD display- 4.3" diagonal and WVGA resolution (480 x 272 pixels) Technical specifications: - Output channels: 2- Sampling rate: 1.28 GS/s (interpolation), 320 MS/s (DDS mode)- Output frequency: 1.28 GS/s (interpolation),- 1 output frequency:- 1/2 output frequency:- 1 μHz- vertical resolution: 16 bits (including symbols, labels)- waveform length: 8 pts to 16 Mpts- non-volatile memory: up to 160 groups of arbitrary waveforms can be stored- types and frequencies of generated signals from 1μHz:to > sinusoidal: μzbr: / 120 MHz rectangular: from 1μHz to 80MHz ramp (sawtooth): from 1μHz to 5MHz pulse: from 1 μHz to 30 MHz any: from 1 μHz to 25 MHz Gaussian noise: up to 130MHz (signal disabled) AC+DC): ± 5V (50 Ω), ± 10V (high resistance)- minimum rise/fall time for any signal: typically < 5 ns- Amplitude range: 1 mVpp to 10 Vpp (50 Ω), 2 mVpp to 20 Vpp (High Z), modulation types: PSK, AMSK, PSK, PSK PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM, Sweep- operating modes: on/off output, continuous, modulation, sweep, serial- TTL-compatible signal frequency measurement: yes, in the range 100mHz – 200mHz, with a resolution of ± 1ppm, with an accuracy of 5 ppm. digits/s- output impedance: adjustable from 1Ω to 1kΩ, or High Z, factory setting 50Ω- output short-circuit protection: yes- terminal overvoltage protection: at input voltage >±12.0V, frequency <10kHz, amplitudine >100mVpp at input overvoltageterminal protection against input overvoltage >±2.0V, frequency <10kHz, amplitude ≤100mVpp- total harmonic distortion 20kHz, 1Vpp (typical): <0.2%- accuracy: ± 0.5ppm at 25℃- ageing rate in the first year- temperature coefficient: ± 1 ppm, 0.5 ppm/℃- temperature coefficient: <2 ppm/°C- Display: 64K TFT LCD, 4.3" diagonal, WVGA (480 x 272 pixels)- USB device interface: yes- power supply: AC 100 V, 44 Hz, 40 V to 44 Hz II- power consumption: <50W- Protection: 250 V fuse, T2 A- Weight (net): 3.1 kg- Gross weight: 4.1 kg- Dimensions: 305 x 230 x 93 mm- Product colour: white and grey> > individual packaging> UTG2122B generator: 1 pc- Power cable: 1 pc.- USB interface cable: 1 pc 380 x 330 x 320 mm- gross weight of the box: approx. 8.5 kg MANUFACTURER: UNI-TREND

Leggere Di più Meno
