Descrizione

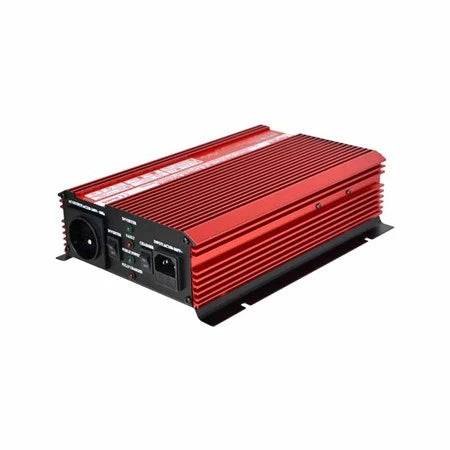

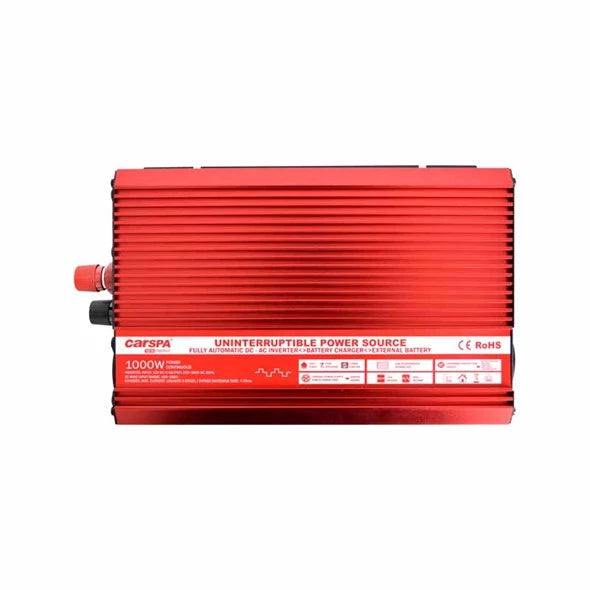

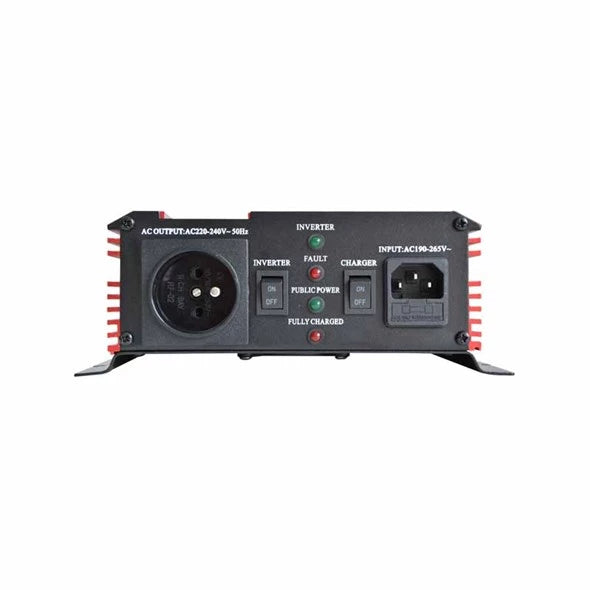

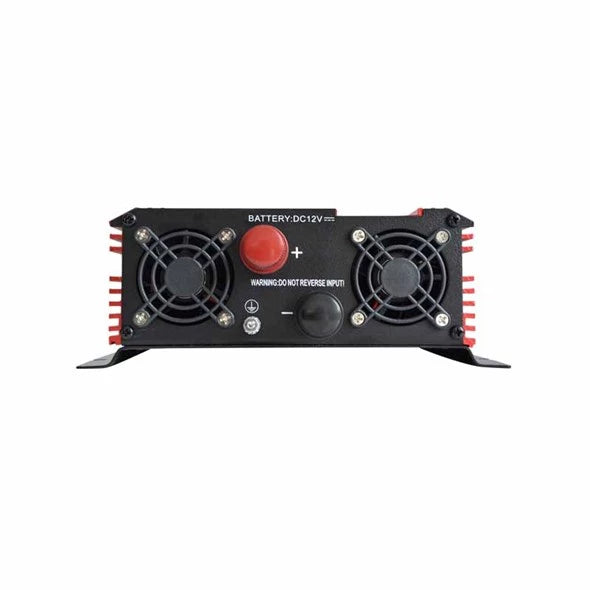

The CARSPA UPS1000 inverter is a 3-in-1 device: inverter + UPS + charger. It can be used as a backup power supply to keep various devices running, particularly computers, data systems or other sensitive equipment, in the event of a power cut.
Under normal conditions, the inverter supplies power to devices from the mains. When the mains power fails, it switches automatically in approximately 15 ms and converts the energy from the 12V DC battery into 230V AC, ensuring that the equipment continues to operate without interruption. When mains power is restored, the inverter returns to normal mode and begins charging the backup battery.
⚠️ Note: not recommended for equipment with asynchronous motors or rotating machinery.
Key benefits:
-
12V DC → 230V AC conversion with a rated power of 1000W
-
UPS (uninterruptible power supply) function with a switching time of just 15 ms
-
Automatic battery charging function, with overcharge protection
-
Multiple protections: overload, overvoltage, reverse polarity, overheating, short circuit and complete battery discharge
-
Compatible with 12V batteries (recommended ≥100Ah)
-
Compact design, lightweight (3 kg)
Technical specifications:
-
AC input voltage: 220–240V / 50 Hz
-
AC output voltage: 230V (modified sine wave)
-
Backup battery: 12V lead-acid (min. 30Ah, recommended ≥100Ah)
-
Continuous power: 1000W (1 kW)
-
Maximum (peak) power: 2000W (2 kW)
-
UPS switchover time: 15 ms
-
Maximum load current: 10A
-
Dimensions (L × W × H): 325 × 208 × 77 mm
-
Weight: 3 kg
-
Warranty: 24 months
