High-power electric vehicle charging station
The EV Charging Station NS (NS electric vehicle charging station) supports both three-phase and single-phase operation. It supplies
up to 22 kW in three-phase operation or 7.3 kW in single-phase. It has a blue front panel. A white or black front panel can be purchased separately.
WiFi communication
WiFi: 802.11 b/g/n for configuration, monitoring and control. The internal WiFi module can be configured in Access Point mode or in
Station mode for both initial configuration and monitoring.
Easy operation and control via Bluetooth and the VictronConnect app
Get full control and an overview of all operating parameters and session statistics at a glance.

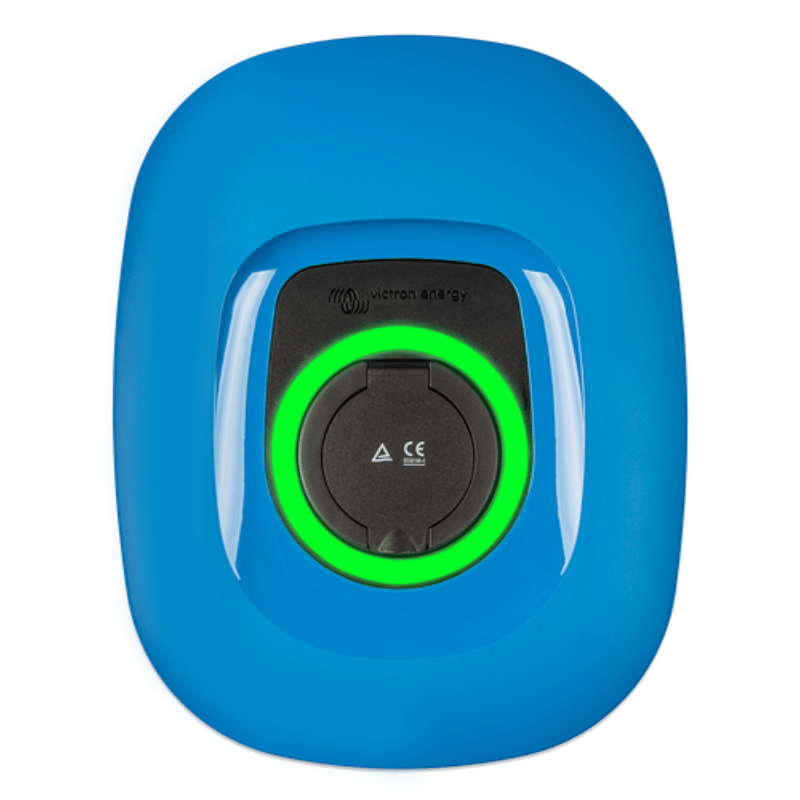

Light ring for quick device status overview
Fully programmable RGB light ring around the charging port, for quick determination of the device’s status. Can be programmed via
the integrated web interface to display different lighting effects depending on the current status (off, charging, charged, etc.).
Three operating modes available:
1. Manual mode for configuring the output current
Manual mode allows an output current to be set between 6 – 32 A. The charging power can be adjusted in
various ways: via the web interface, from a GX and VRM device, and via VictronConnect. It allows the
manually stopping the charging process when a vehicle is connected to the charging station.
2. Automatic mode to ensure maximum efficiency of the photovoltaic system
It detects when excess power is available and uses only the power required to
charging the vehicle.
3. Scheduled mode to charge an electric vehicle at specific times
A fully programmable controller allows charging at different times, such as specific hours
the night, when grid energy is cheaper.
Integration with GX and VRM devices
Control and monitor the NS EV Charging Station via the GX device’s touchscreen, the remote console and the VRM portal. The
VRM portal provides real-time and customised reports for configurable time periods.
