Descrizione

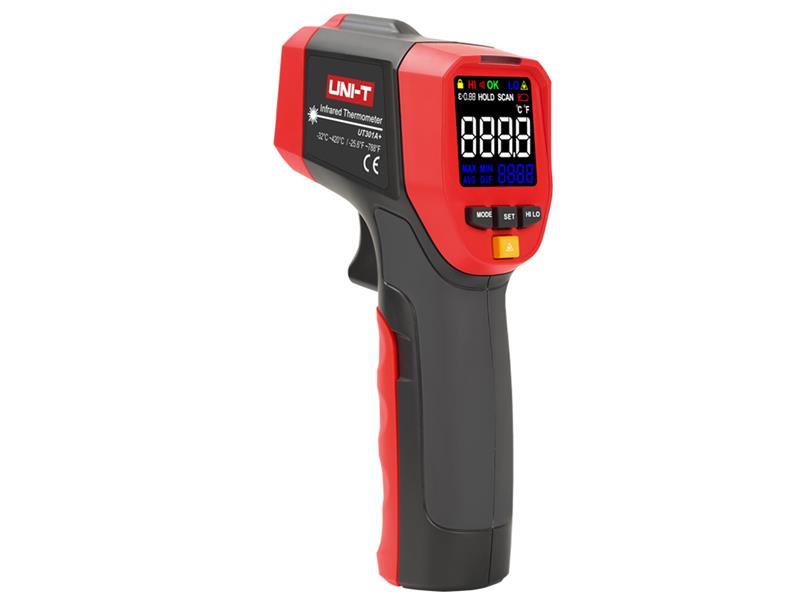

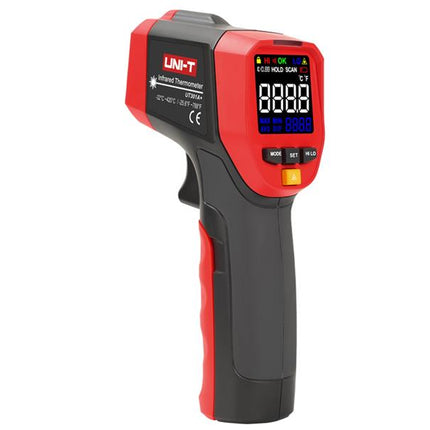

UNI-T UT301A+ Infrared Thermometer
This product comes with a 3-year warranty. The new UT301+ range of non-contact thermometers is a robust and easy-to-use infrared thermometer with high accuracy (95%) and repeatability. It features an adjustable visual/audible high/low temperature alarm with a response time of less than 250 ms, helping you to quickly detect anomalies. You can preset and store 5 sets of emissivity values and quickly switch emissivity settings for different surfaces to achieve more accurate results. With measurement hold, MAX/MIN/AVG/DIFF hold and tripod mounting, the UT301A+ is ideal for processes requiring temperature monitoring. The UT301A+ can be used to monitor power distribution/transmission equipment, maintenance/HVAC equipment, vehicle diagnostics and other applications. Backlit EBTN colour display. Can be mounted on a tripod with a standard threaded hole.
Product specifications:
- temperature range: -32 to 420 °C
- Units of measurement: °C / °F
- ratio of measurement distance to measurement area diameter: 12 : 1
1
High-brightness LCD display
- EBTN display 30 x 30 mm
Technical parameters:
- laser power: <1mW (class 2)
- display size: 30 x 30 mm
- temperature measurement range: -32 °C to 420 °C (-25.6 °F to 25.6 °F) 1 (95%)
- emissivity: 0.1 ~ 1.0 (adjustable, stores 5 sets of preset values)
- response time: ≤250 ms (95% measurement)
- spectral response: 8 μm – 14 μm
- accuracy ± 1.5 °C: or ± 0.5 °C 1.5%
- accuracy ≤0 °C: ±(1.5 °C + 0.1 °C/°C)
- accuracy >32 °F: ±3.0 °F or ± 1.5%
- accuracy ≤32 °F: ±(3.0 °F/°F/°F) measurement repeatability
: ±(3.0°F/-°F) 0.7 °C or 0.7% (1.5 °F or 0.7%)
- Hold: yes
- Auto power off: yes
- Low battery indicator: yes
- LED alarm: yes for high/low temperature
- Audible warning: yes for high/low temperature
- Tripod measurement mode: Y-measurement mode MAX
- / AVG / DIFF
- Operating temperature: 0°C to 50°C (32°F to 122°F)
- Storage temperature: -20 °C to 60 °C (-4°F to 140°F)
- Operating humidity: <90% RH (non-condensing)
Power drop test
9 mV battery
- Product colour: red and grey
- Net product weight: 204 g
- Product dimensions: 160 mm x 74 mm x 48 mm
Standard individual package contents:
- gift box
- UNI-T UT301A+ thermometer
transport instructions
