This product comes with a 3-year warranty.

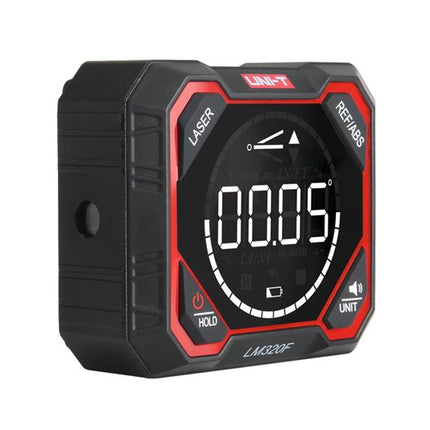

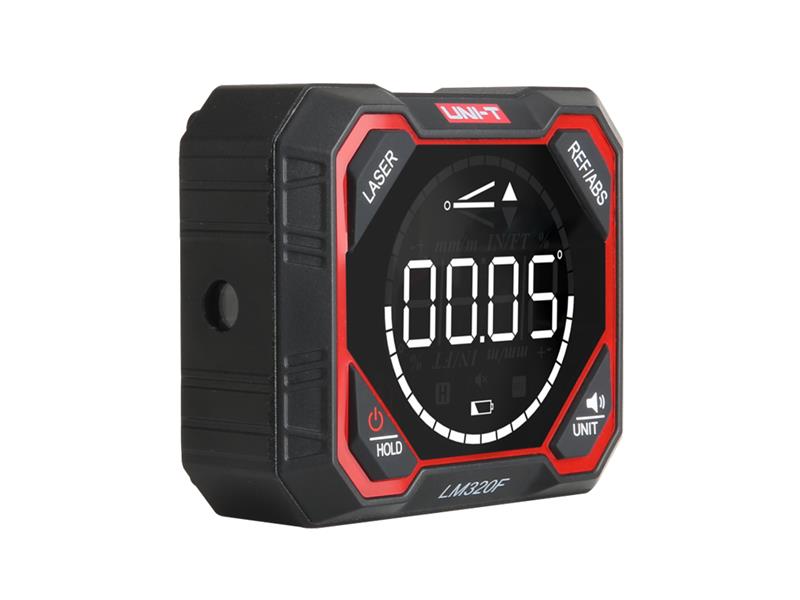

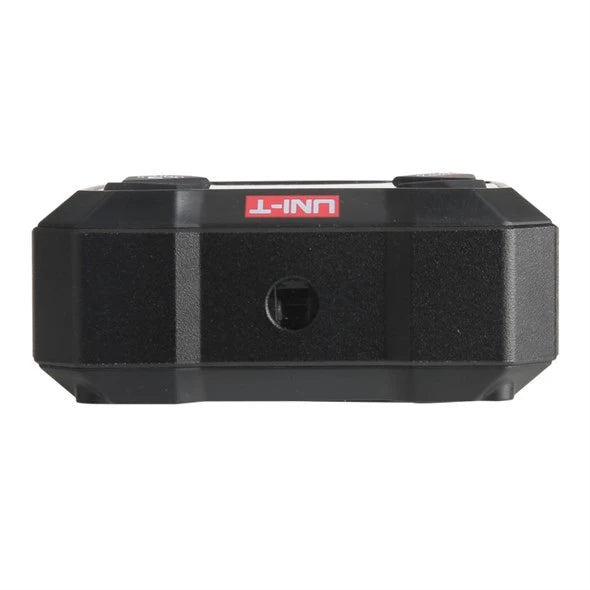

The LM320F digital protractor is a lightweight and portable digital protractor with a durable aluminium alloy frame, ensuring durability during use. It allows you to accurately measure the slope of a plane, effectively replacing a spirit level for construction work – when building roofs, floors or drainage systems. It is equipped with a high-resolution display and automatic screen rotation, covering the entire 4×90° measurement range. The device provides real-time data on the angle of inclination and is fitted with a magnetic base for easy and stable positioning. The default unit of measurement is degrees (°), but other units can also be selected: percentage (%), millimetres per metre, or inches per foot. It is widely used in the fields of engineering, construction and mechanical installations. The device has three built-in lasers that can be switched on and off individually and can project the centre of the digital protractor, for example, onto a wall. The device has a built-in 3.7 V, 1000 mAh lithium battery, which is charged via the included USB-C cable.
Product specifications:
- Precise digital protractor (inclinometer)
- Aluminium alloy frame, lightweight and portable
- 4×90° relative angle measurement
- 4×90° relative angle measurement modes
- Multiple unit options: mm/m, in/ft, %, °
- 1000 mAh rechargeable lithium battery
- Rotating display with LED backlight
- fitted with magnetic bases
- laser pointer
- certification: CE, RoHS
- language: English
>
Technical parameters
range: 4 x 90°
- measurement resolution: ± 0.05°
- angle measurement accuracy: ± 0.2°
- Units of measurement: °; %; mm/m; in/ft
- laser indication: yes, three built-in lasers
- laser accuracy: ± 3 mm / 5 m
- magnetic attachment to base: four-sided magnet (bottom, back, left and right)
- angle measurement modes: relative/absolute measurement
- automatic screen rotation
- automatic screen rotation/
- power off: yes
- material: AL alloy frame + ABS
- power supply: 3.7 V / 1000 mAh lithium battery
- operating temperature: 0 °C to 50 °C
- laser class: 2
- laser type: 630–670 nm, <1 mW product lifespan:-/>-
83.5 x 70 x 35.5 mm
- net product weight: 180 g
- Product colour: black and red

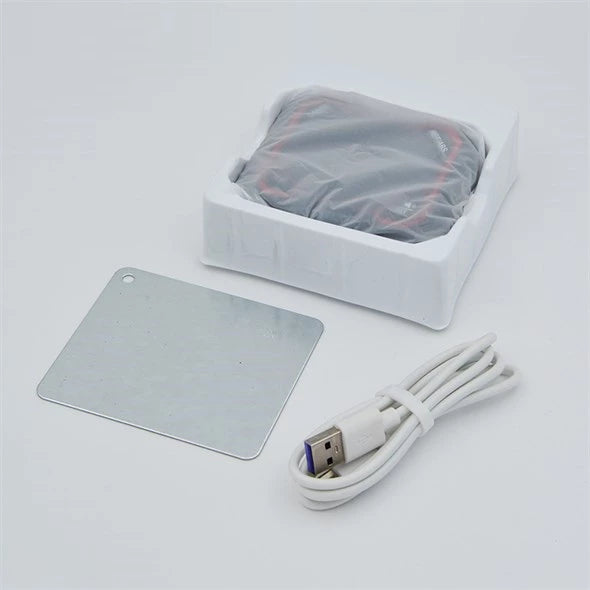

Contents of individual packaging:
- Digital protractor
- USB-C extension cable
- User manual:
MANUFACTURER: UNI-TRENDER:
