Descrizione
This product comes with a 3-year warranty.

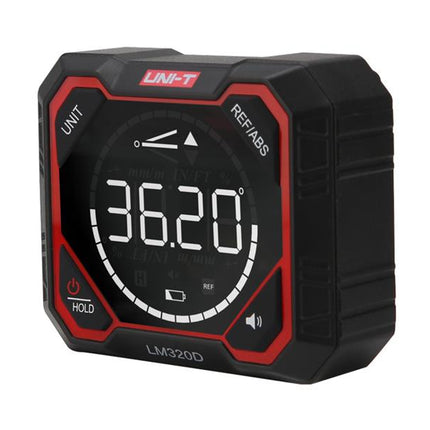

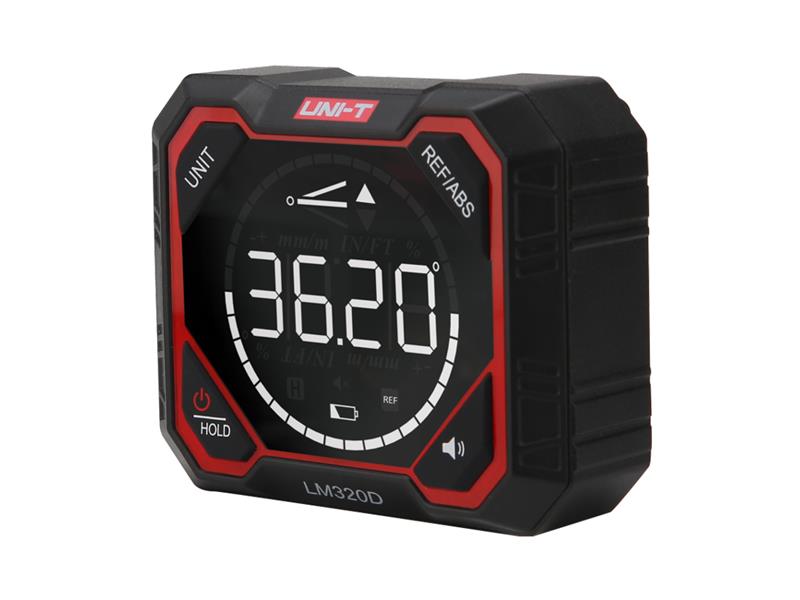

The LM320D digital protractor is a lightweight and portable digital protractor with a durable aluminium alloy frame, ensuring durability during use. It allows you to accurately measure the slope of a surface, effectively replacing a spirit level for construction work – when building roofs, floors or drainage systems. It is equipped with a high-resolution display and automatic screen rotation, supporting the full 4×90° measurement range. The device provides real-time data on the angle of inclination and is fitted with a magnetic base for easy and stable positioning. The default unit of measurement is degrees (°), but other units can also be selected: per cent (%), millimetres per metre, or inches per foot. It is widely used in the fields of engineering, construction and mechanical installations. The device has a built-in 3.7 V, 1000 mAh lithium battery, which is charged via the included USB-C cable.
Product specifications:
- Precise digital protractor (inclinometer)
- Aluminium alloy frame, lightweight and portable
- 4×90° relative angle measurement
- 4×90° relative measurement modes
- Multiple unit options: mm/m, in/ft, %, °
- 1000 mAh rechargeable lithium battery
- Rotating display with LED backlight
- fitted with magnetic bases
- certification: CE, RoHS
- Language: English
measurement range:
Technical parameters: x-4 90°
- measurement resolution: ± 0.05°
- angle measurement accuracy: ± 0.2°
- Units of measurement: °; %; mm/m; in/ft
- laser indication: no
- laser accuracy: no
- magnetic attachment to base: double-sided magnet (bottom and back)
- angle measurement modes: relative/absolute measurement
- angle hold: yes
- Screen rotation: yes
- Auto-off material: alloy frame: ABS
- power supply: 3.7 V / 1000 mAh lithium battery
- Operating temperature: 0 °C to 50 °C
- laser class: no
- laser type: no
- Battery life: 14 hours
- Product dimensions: 83.5 x 70 x 50 mm
- Net product weight: 35.8 g
- 0 g
- Colour: black and red

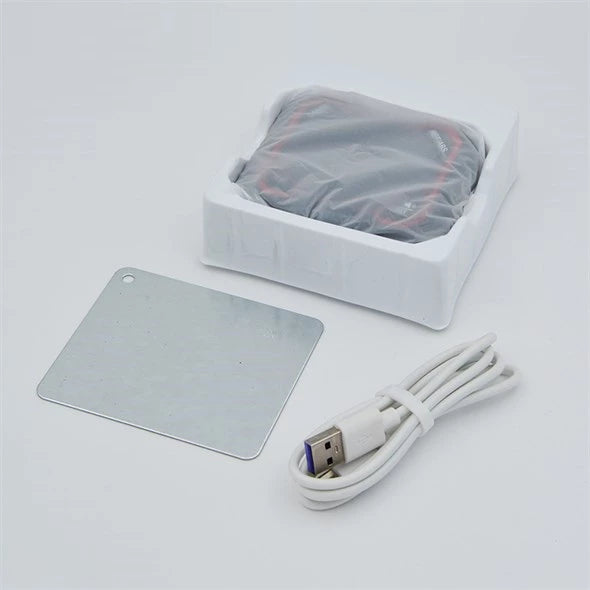

Contents of individual packaging:
- Digital report
- USB-C extension cable
- user manual:
MANUFACTURER: UNI-TREND
