Descrizione
The Shelly Wall Display XL is a smart control panel for smart homes, featuring a generous 10.1-inch touchscreen and built-in functionality for controlling electrical appliances. It completely transforms the way you interact with your home, providing centralised control over lighting, climate control, energy and home automation.
Thanks to its intuitive interface and customisable screen, the Shelly Wall Display XL becomes the command centre of your smart home, enabling quick control of devices, consumption monitoring and advanced automation.
It is ideal for both residential and commercial applications, being easy to integrate into standard wall boxes.
Key features
-
10.1” colour touchscreen with 1280x752 resolution

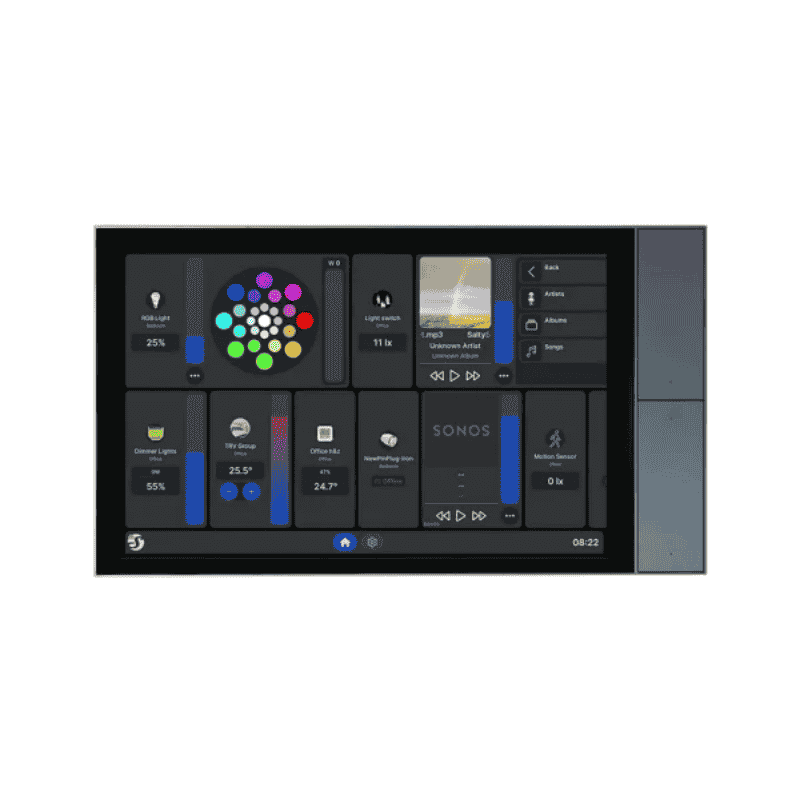

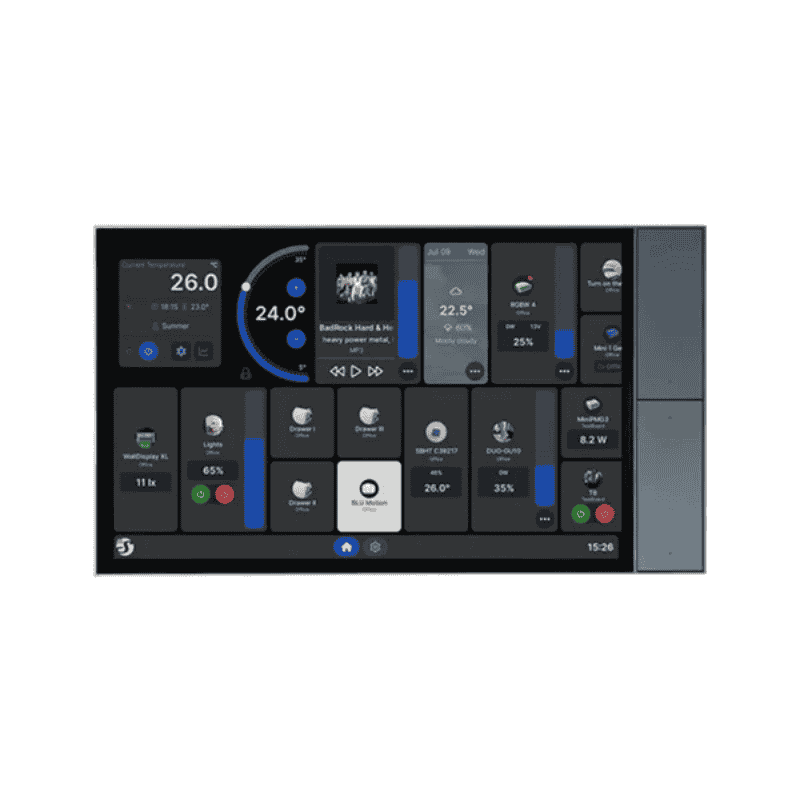

- Fully customisable interface
-
Integrated relay for direct control of loads
- 4 configurable physical buttons
- Real-time energy consumption monitoring
- Light sensor + proximity sensor
-
Wi-Fi 6 + Bluetooth 5.4 connectivity
- Integrated 2x2W speakers + microphone
- Built-in Android 11
- Remote control via app
Features and benefits
? Full home control – Control lighting, sockets, appliances or HVAC systems directly from the panel or via the app.
? Smart automations – Create scenarios and automated schedules based on temperature, humidity or light.
? Energy consumption monitoring – See exactly how much each device consumes and optimise your energy costs.
? Control from anywhere – Access and control the system remotely via the internet.
? Audio integration – You can connect Bluetooth or Sonos speakers for audio control and notifications.
? Increased safety – Detect abnormal temperature fluctuations or conditions that may indicate risks.
Applications
- Residential properties
- Flats / hotels (MDU)
- Small commercial premises
- Offices
- Public institutions
- Universities
| General information |
| Product name |
Shelly Wall Display XL |
| Model |
SAWD-3A1XE10EU2 |
| Operating system |
Android 11 |
| Display |
| Screen size |
10.1 inches |
| Resolution |
1280 x 752 px |
| Screen type |
5-point capacitive touchscreen |
| Connectivity |
| Wi-Fi |
Wi-Fi 6 Dual Band |
| Bluetooth |
5.4 |
| Performance |
| CPU |
Rockchip RK3566 Quad-Core 1.8GHz |
| RAM |
2 GB |
| Internal storage |
32 GB |
| Features and sensors |
| Light sensor |
Yes |
| Proximity sensor |
Yes (≤1m) |
| Microphone |
Yes (4 microphones) |
| Speakers |
2 x 2W |
| Power supply |
| Power supply voltage |
100–240V AC |
| Power consumption |
<15W |
| Outputs |
| Relay |
1 output |
| Maximum current |
5A |
| Dimensions |
| Dimensions |
155.8 x 272.5 x 38.3 mm |
| Weight |
920 g |
| Operating conditions |
| Temperature |
-20°C to +40°C |
| Humidity |
30% - 70% |
