Descrizione

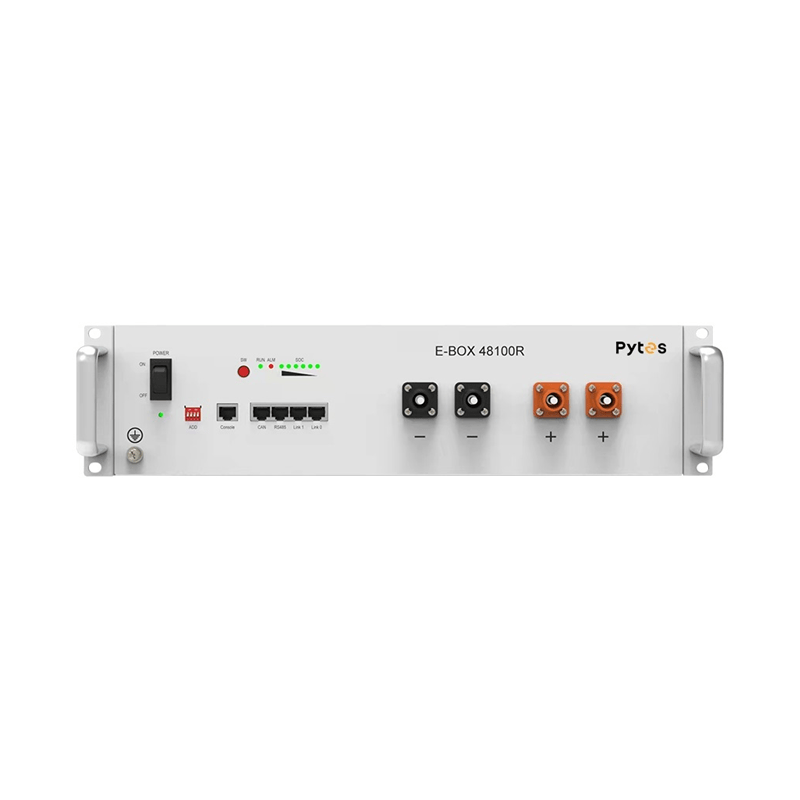

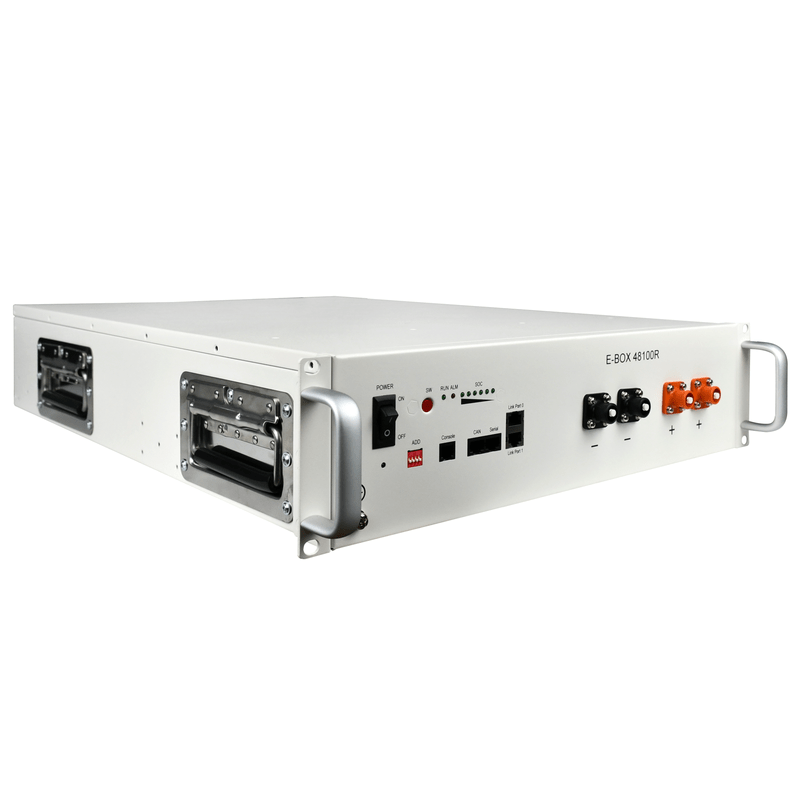

The Pytes E-BOX-48100R TE+ 5.12kWh battery is a modern energy storage solution, designed for residential photovoltaic systems and small-scale commercial applications. Based on advanced LiFePO4 (lithium iron phosphate) technology, it offers a high level of safety, a long service life and stable long-term performance.
Thanks to its compact and modular design, the battery can be installed quickly and expanded later by connecting multiple units in parallel, making it ideal for users who wish to increase their energy independence and make the most of the energy produced by their photovoltaic panels. The integrated intelligent BMS system continuously monitors the battery’s operation and provides protection against overvoltage, overcharging, over-discharge and overheating.
Built for intensive use, the battery offers over 6,000 charge-discharge cycles, maintaining a high capacity throughout its service life. It is compatible with numerous hybrid inverters and storage systems used in residential and commercial applications.
Key features
- Safe and stable LiFePO4 (LFP) technology
- Nominal capacity of 5.12 kWh
- Intelligent Battery Management System (BMS)
- Over 6,000 charge cycles
- Simple rack- or wall-mounted installation
- Modular expansion via parallel connection
- Compatible with most hybrid inverters
- Maintenance-free
- 10-year manufacturer’s warranty
- Ideal for residential and small commercial applications
Technical data
| Specification |
Value |
| Battery technology |
LiFePO4 (LFP) |
| Nominal capacity |
100Ah |
| Nominal energy |
5.12 kWh |
| Nominal voltage |
51.2 V |
| Voltage range |
47.5 V – 57.6 V |
| Recommended charge/discharge current |
50A |
| Maximum charging/discharging current |
50A |
| Peak discharge current |
102A (15 seconds) |
| Efficiency |
≥95% |
| Number of cycles |
≥6,000 |
| Degree of protection |
IP20 |
| Dimensions |
440 × 620 × 117 mm |
| Weight |
approximately 51 kg |
| Communications |
CAN / RS485 |
| Scalability |
up to 96 units in parallel |
| Warranty |
10 years |
User benefits
✔ Increases self-consumption of energy generated by the photovoltaic system
✔ Reduces dependence on the electricity grid
✔ Ensures energy is available during periods of high consumption
✔ Allows storage capacity to be expanded as demand increases
✔ LiFePO4 technology offering a high level of safety and stability
✔ Low running costs thanks to a long service life
✔ Ideal solution for homes, guesthouses, offices and small commercial applications
Download the technical data sheet
Download the list of compatible inverters (CAN/RS485)
